Category |
Integrated Circuits (ICs)
Power Management (PMIC)
DC DC Switching Controllers
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
-
|
|
|
Packaging |

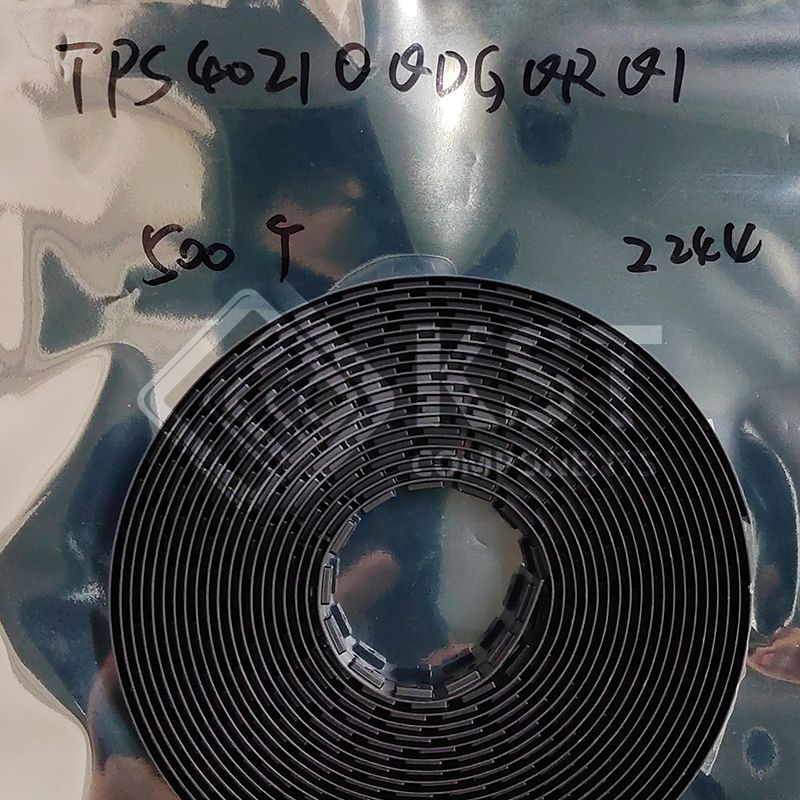

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Type |
Transistor Driver
|
|
|
Function |
Step-Up, Step-Up/Step-Down
|
|
|
Output Configuration |
Positive
|
|
|
Topology |
Boost, Flyback, SEPIC
|
|
|
Number of Outputs |
1
|
|
|
Output Phases |
1
|
|
|
Voltage - Supply (Vcc/Vdd) |
4.5V ~ 52V
|
|
|
Frequency - Switching |
35kHz ~ 1MHz
|
|
|
Duty Cycle (Max) |
-
|
|
|
Synchronous Rectifier |
No
|
|
|
Clock Sync |
Yes
|
|
|
Serial Interfaces |
-
|
|
|
Control Features |
Enable, Frequency Control, Soft Start
|
|
|
Operating Temperature |
-40°C ~ 125°C (TJ)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

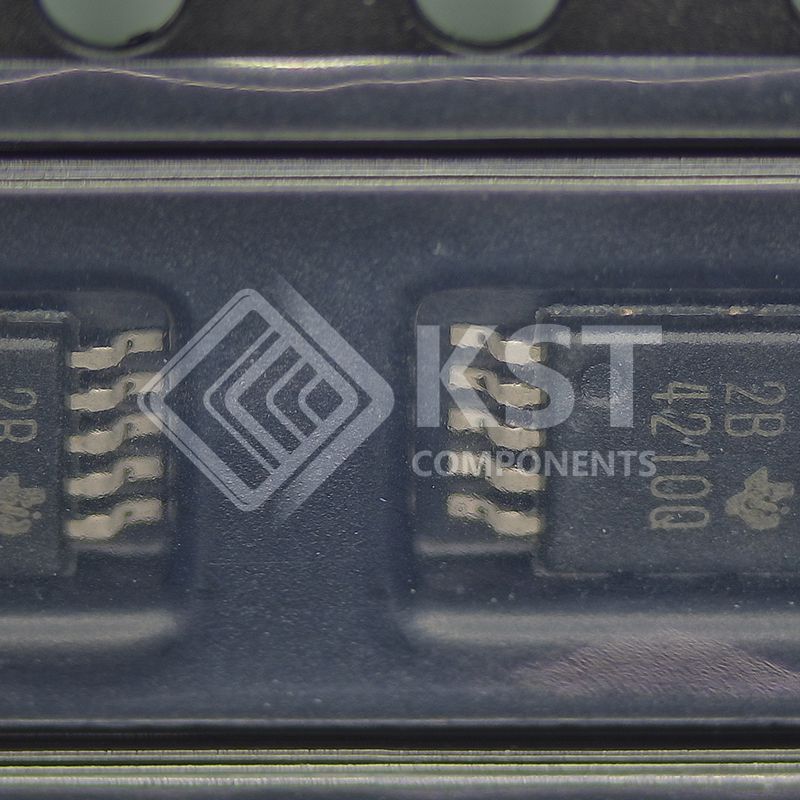

10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
|
|
|
Supplier Device Package |
10-HVSSOP
|
|
|
Base Product Number |
TPS40210 |
