Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Power Distribution Switches, Load Drivers
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
-
|
|
|

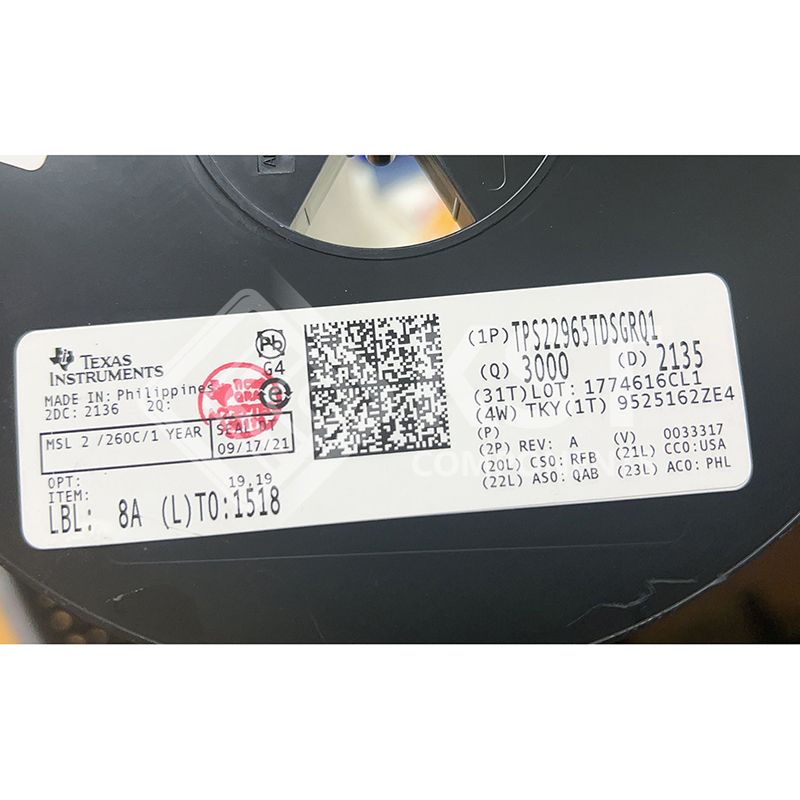

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Switch Type |
General Purpose |
|
|
Number of Outputs |
1
|
|
|
Ratio - Input:Output |
1:1
|
|
|
Output Configuration |
High Side
|
|
|
Output Type |
N-Channel
|
|
|
Interface |
On/Off
|
|
|
Voltage - Load |
2.5V ~ 5.5V
|
|
|
Voltage - Supply (Vcc/Vdd) |
0.8V ~ 5.5V
|
|
|
Current - Output (Max) |
4A
|
|
|
Rds On (Typ) |
16mOhm
|
|
|
Input Type |
Non-Inverting
|
|
|
Features |
Load Discharge, Slew Rate Controlled
|
|
|
Fault Protection |
-
|
|
|
Operating Temperature |
-40°C ~ 105°C (TA)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |

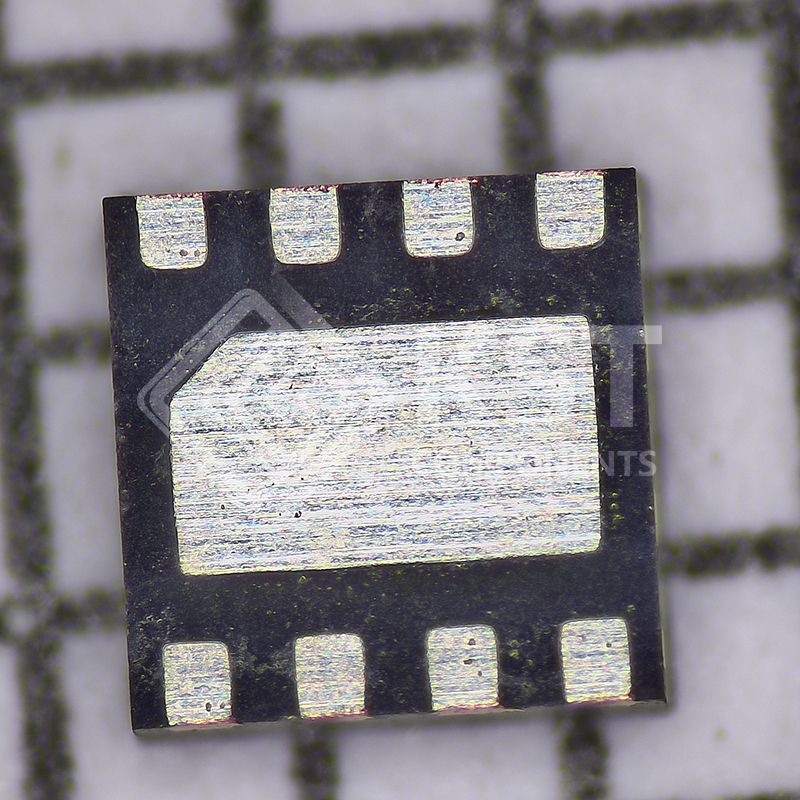

8-WSON (2x2)
|
|
|
Package / Case |
8-WFDFN Exposed Pad |
|
|
Base Product Number |
TPS22965 |
