Category |
Integrated Circuits (ICs)
Embedded
Microcontrollers
|
|
|
Mfr |
STMicroelectronics |
|
|
Series |
STM32F4 |
|
|
Packaging |

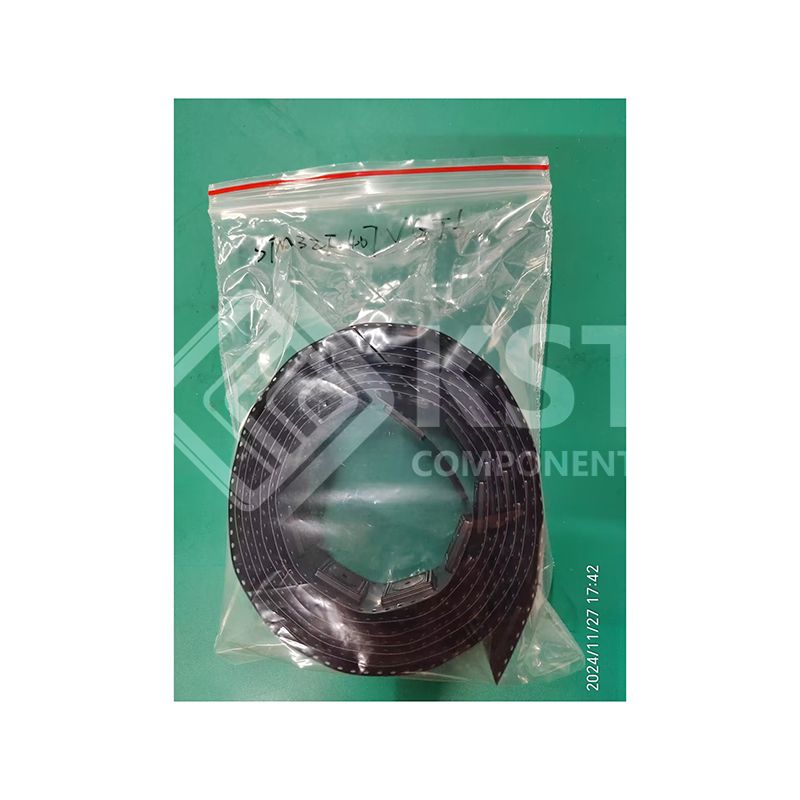

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Core Processor |
ARM® Cortex®-M4
|
|
|
Core Size |
32-Bit Single-Core
|
|
|
Speed |
168MHz
|
|
|
Connectivity |
CANbus, DCMI, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG
|
|
|
Peripherals |
Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
|
|
|
Number of I/O |
82
|
|
|
Program Memory Size |
1MB (1M x 8) |
|
|
Program Memory Type |
FLASH
|
|
|
EEPROM Size |
-
|
|
|
RAM Size |
192K x 8
|
|
|
Voltage - Supply (Vcc/Vdd) |
1.8V ~ 3.6V
|
|
|
Data Converters |
A/D 16x12b; D/A 2x12b
|
|
|
Oscillator Type |
Internal
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |

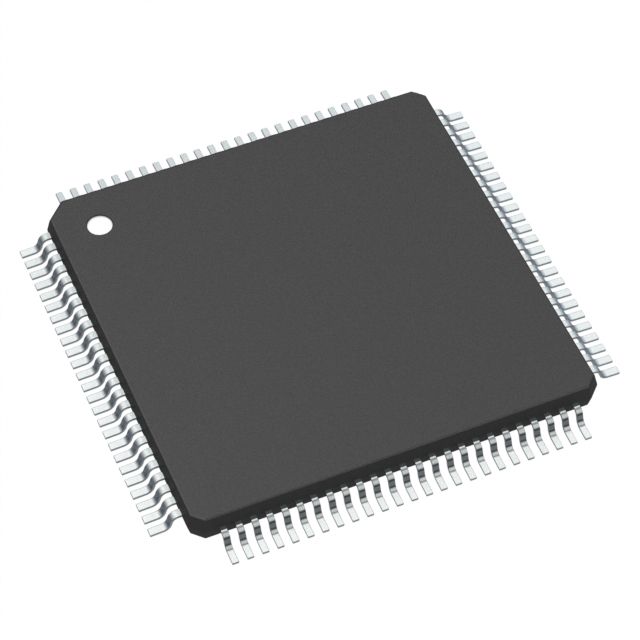

100-LQFP (14x14)
|
|
|
Package / Case |
100-LQFP
|
|
|
Base Product Number |
STM32F407 |
