Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
onsemi |
|
|
Series |
-
|
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
50 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
14A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
5V
|
|
|
Rds On (Max) @ Id, Vgs |
100mOhm @ 14A, 5V
|
|
|
Vgs(th) (Max) @ Id |
2V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
40 nC @ 10 V
|
|
|
Vgs (Max) |
±10V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
670 pF @ 25 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
48W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 155°C (TJ)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
TO-252AA
|
|
|
Package / Case |

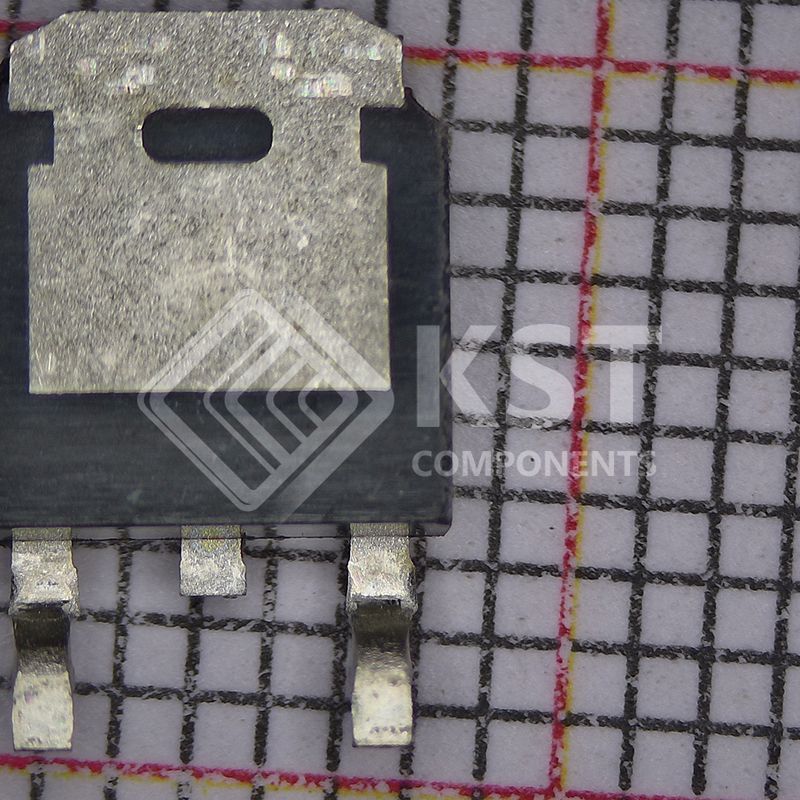

TO-252-3, DPAK (2 Leads + Tab), SC-63 |
|
|
Base Product Number |
RFD14N05 |
