Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Nisshinbo Micro Devices Inc. |
|
|
Series |
R1524x |
|
|

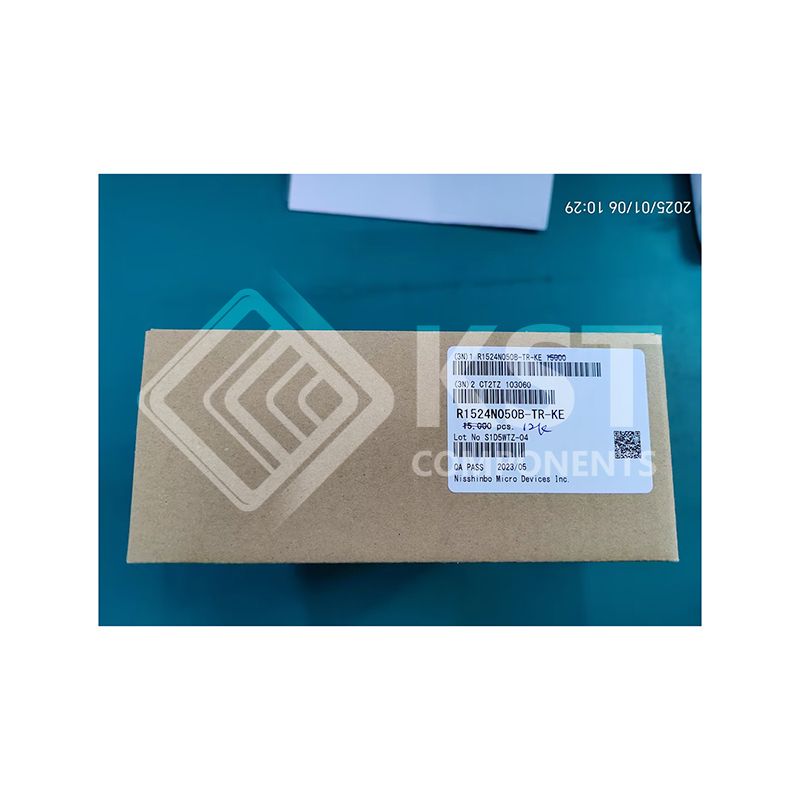

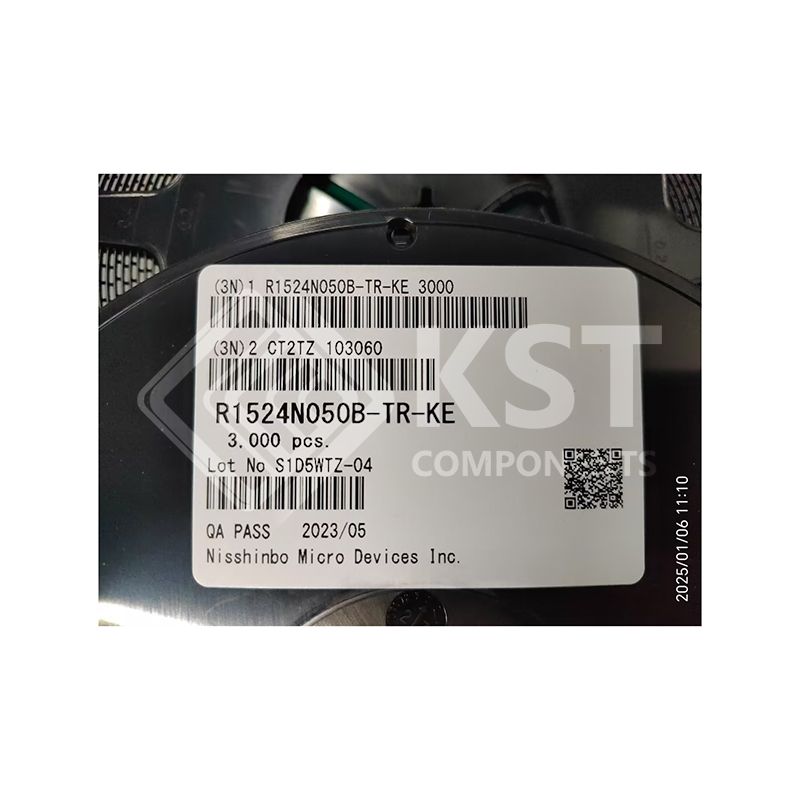

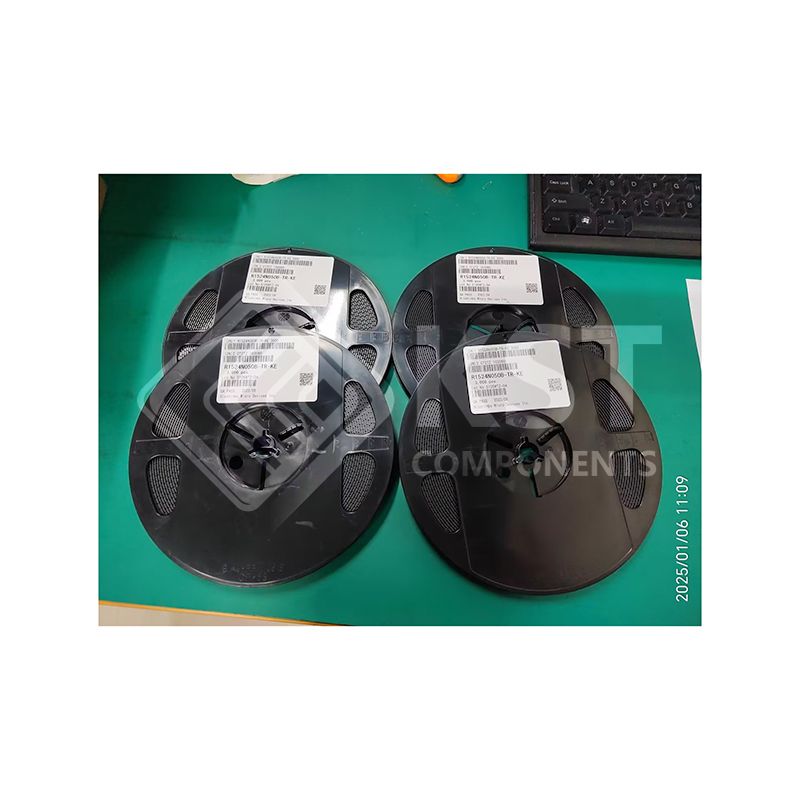

Packaging |
Tape & Reel (TR)
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Fixed |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
36V
|
|
|
Voltage - Output (Min/Fixed) |
5V
|
|
|
Voltage - Output (Max) |
-
|
|
|
Voltage Dropout (Max) |
1.2V @ 200mA
|
|
|
Current - Output |
200mA |
|
|
Current - Quiescent (Iq) |
6.5 µA
|
|
|
PSRR |
-
|
|
|
Control Features |
Enable
|
|
|
Protection Features |
Over Current, Over Temperature, Short Circuit
|
|
|
Operating Temperature |
-40°C ~ 125°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
SC-74A, SOT-753
|
|
|
Supplier Device Package |
SOT-23-5
|
|
|
Base Product Number |
R1524 |
