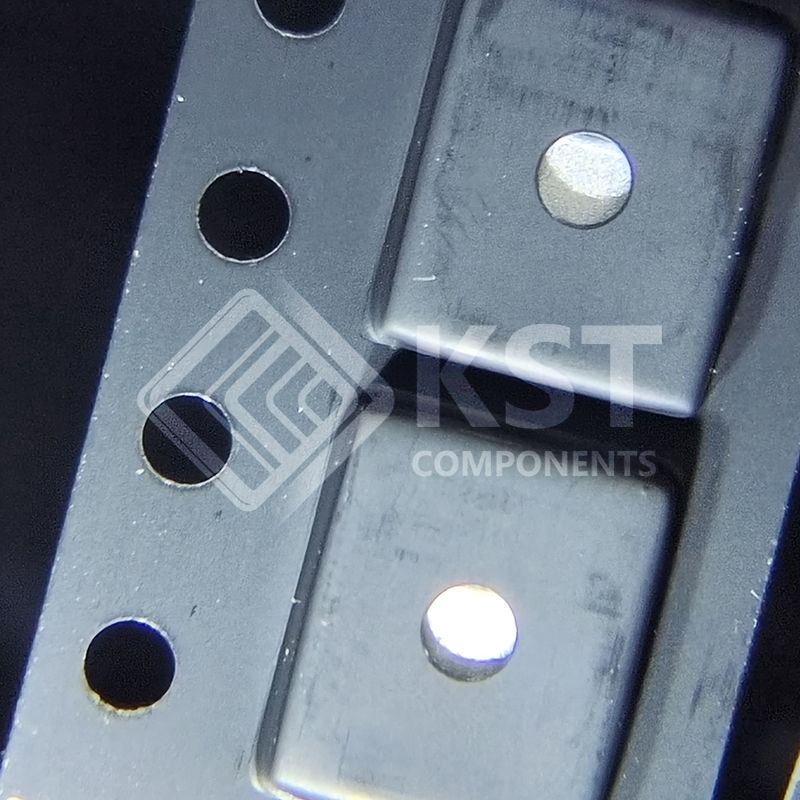

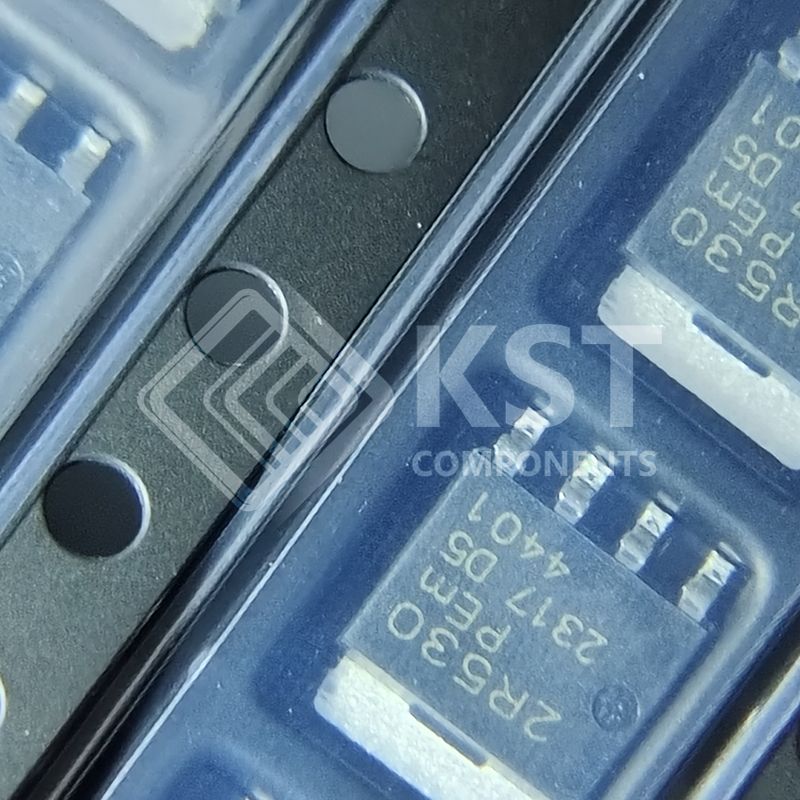

PSMN2R5-30YL
零件编号：
PSMN2R5-30YL
产品分类：
固态继电器（SSR）
制造商：
Amphenol Fiber Systems International
描述：
MOSFET N-CH 30V 100A LFPAK56
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Nexperia USA Inc. |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Not For New Designs
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
30 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
100A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs |
2.4mOhm @ 15A, 10V
|
|
|
Vgs(th) (Max) @ Id |
2.15V @ 1mA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
57 nC @ 10 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
3468 pF @ 12 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
88W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 175°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
LFPAK56, Power-SO8
|
|
|
Package / Case |
SC-100, SOT-669 |
|
|
Base Product Number |
PSMN2R5 |
