Category |
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
|
|
|
Mfr |
Nexperia USA Inc. |
|
|
Series |
-
|
|
|

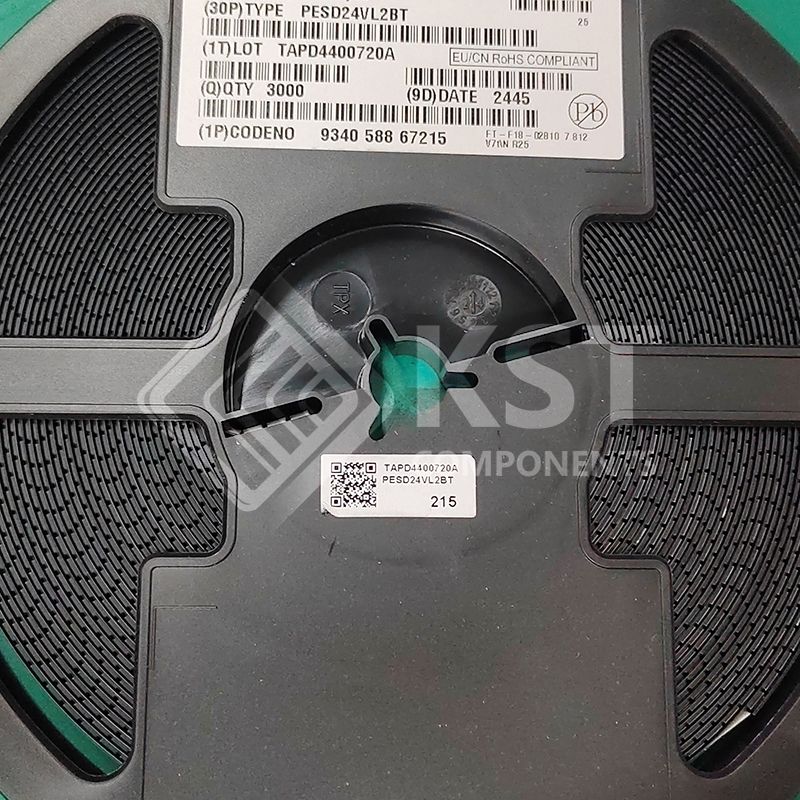

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Not For New Designs
|
|
|
Type |
Zener
|
|
|
Bidirectional Channels |
2
|
|
|
Voltage - Reverse Standoff (Typ) |
24V (Max)
|
|
|
Voltage - Breakdown (Min) |
25.4V
|
|
|
Voltage - Clamping (Max) @ Ipp |
70V
|
|
|
Current - Peak Pulse (10/1000µs) |
3A (8/20µs)
|
|
|
Power - Peak Pulse |
200W
|
|
|
Power Line Protection |
No
|
|
|
Applications |
General Purpose
|
|
|
Capacitance @ Frequency |
11pF @ 1MHz
|
|
|
Operating Temperature |
-65°C ~ 150°C (TA)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|

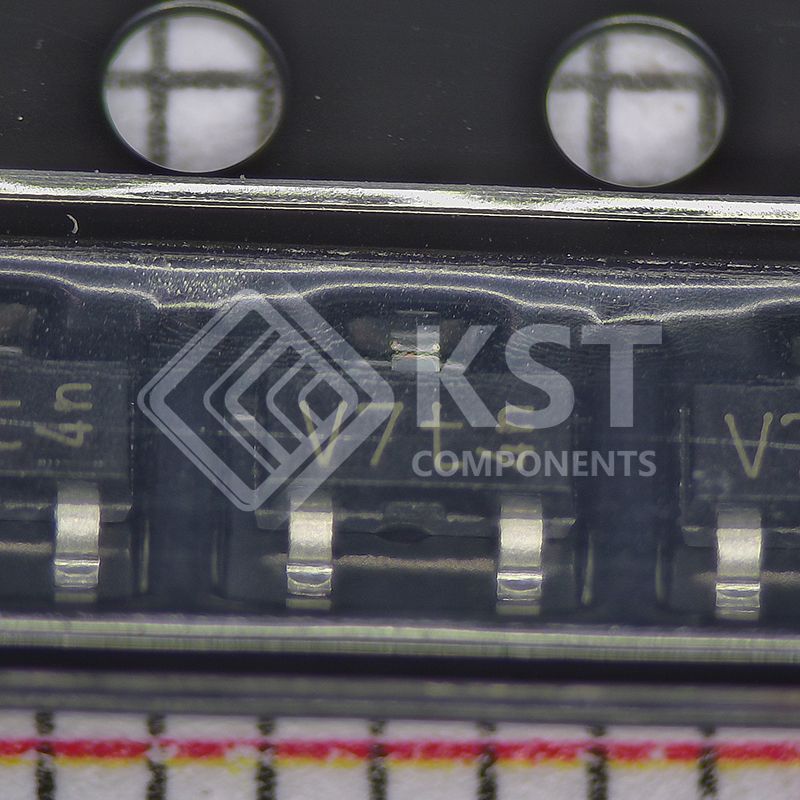

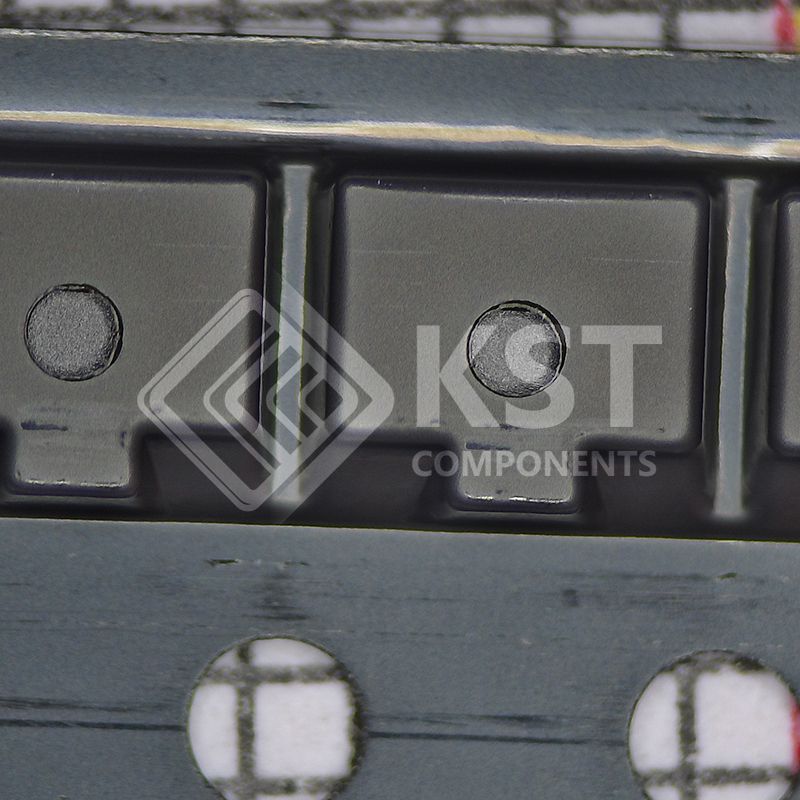

Package / Case |
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package |
TO-236AB |
|
|
Base Product Number |
PESD24 |
