Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
onsemi |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Adjustable |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
38V
|
|
|
Voltage - Output (Min/Fixed) |
1.2V
|
|
|
Voltage - Output (Max) |
24V |
|
|
Voltage Dropout (Max) |
0.48V @ 150mA
|
|
|
Current - Output |
150mA |
|
|
Current - Quiescent (Iq) |
3 µA
|
|
|
PSRR |
80dB ~ 42dB (10Hz ~ 100kHz)
|
|
|
Control Features |
Enable
|
|
|
Protection Features |
Over Current, Over Temperature
|
|
|
Operating Temperature |
-40°C ~ 125°C (TJ)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

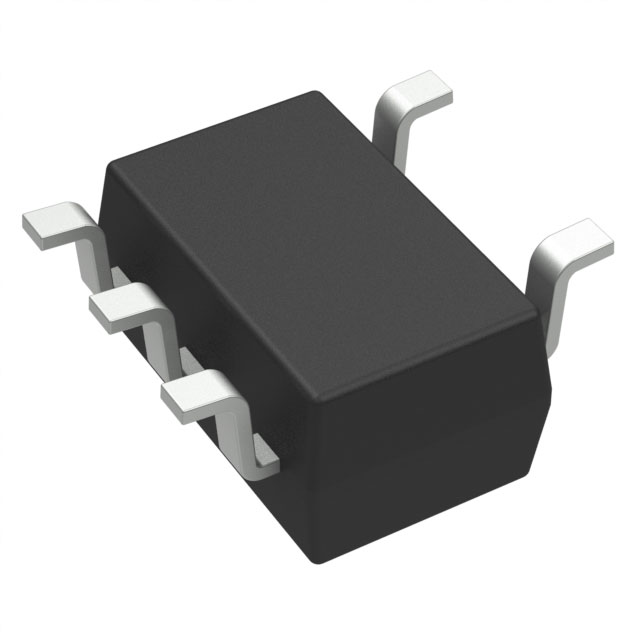

SOT-23-5 Thin, TSOT-23-5
|
|
|
Supplier Device Package |
5-TSOP
|
|
|
Base Product Number |
NCV8730 |
