Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Analog Devices Inc. |
|
|
Series |
-
|
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Adjustable |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
20V
|
|
|
Voltage - Output (Min/Fixed) |
0V
|
|
|
Voltage - Output (Max) |
15V |
|
|
Voltage Dropout (Max) |
0.35V @ 200mA (Typ)
|
|
|
Current - Output |
200mA |
|
|
PSRR |
117dB ~ 56dB (120Hz ~ 10MHz)
|
|
|
Control Features |
Current Limit, Enable, Power Good
|
|
|
Protection Features |
Over Temperature, Reverse Polarity
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

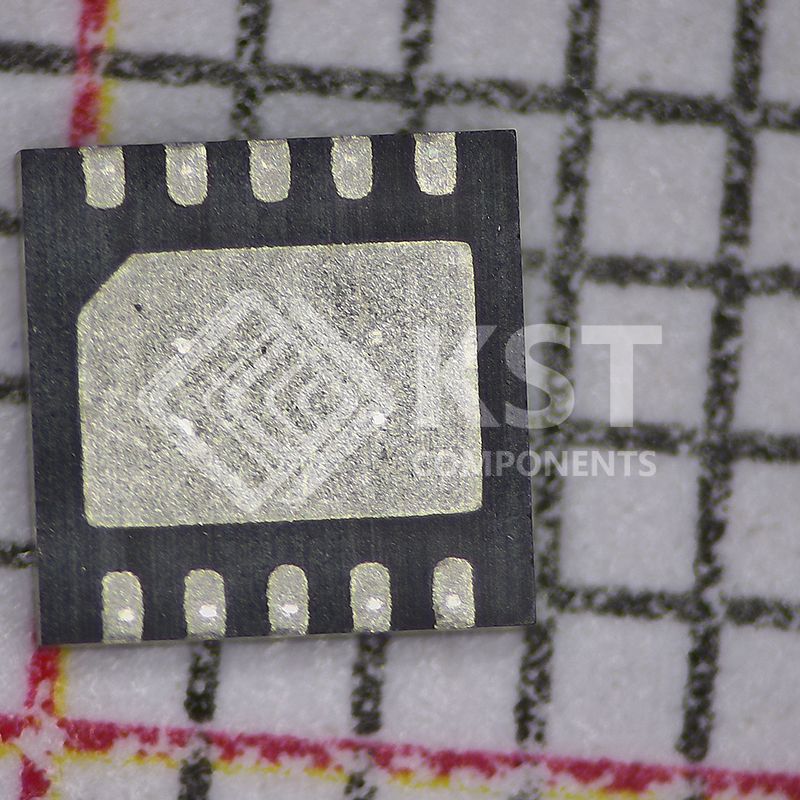

10-WFDFN Exposed Pad
|
|
|
Supplier Device Package |
10-DFN (3x3)
|
|
|
Base Product Number |
LT3042 |
