Category |
Integrated Circuits (ICs)
Embedded
Microcontrollers
|
|
|
Mfr |
NXP USA Inc. |
|
|
Series |
LPC40xx |
|
|
Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Core Processor |
ARM® Cortex®-M4
|
|
|
Core Size |
32-Bit Single-Core
|
|
|
Speed |
120MHz
|
|
|
Connectivity |
CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, QEI, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG
|
|
|
Peripherals |
Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
|
|
|
Number of I/O |
165
|
|
|
Program Memory Size |
512KB (512K x 8) |
|
|
Program Memory Type |
FLASH
|
|
|
EEPROM Size |
4K x 8
|
|
|
RAM Size |
96K x 8
|
|
|
Voltage - Supply (Vcc/Vdd) |
2.4V ~ 3.6V
|
|
|
Data Converters |
A/D 8x12b SAR; D/A 1x10b
|
|
|
Oscillator Type |
Internal
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
208-LQFP (28x28)
|
|
|
Package / Case |

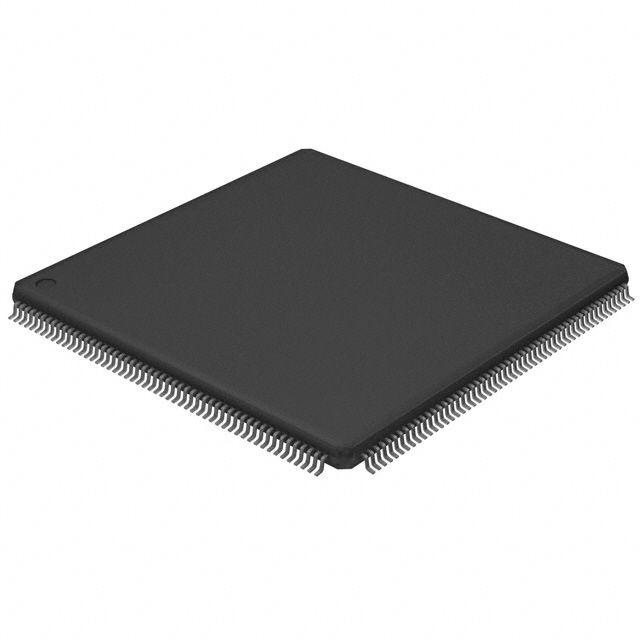

208-LQFP
|
|
|
Base Product Number |
LPC4088 |
