Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
SIMPLE SWITCHER® |
|
|
Packaging |

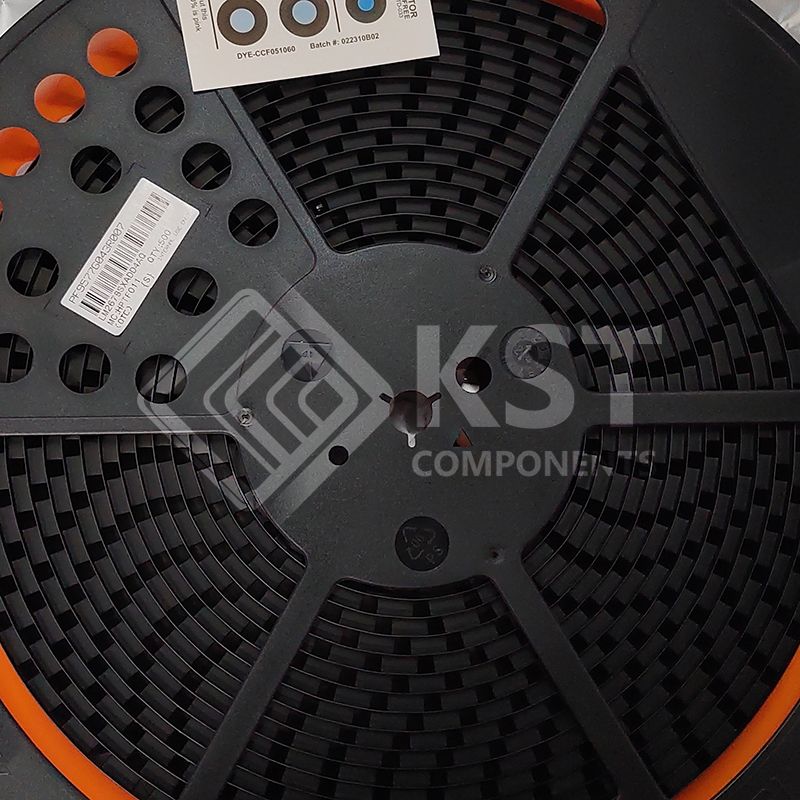

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Function |
Step-Down
|
|
|
Output Configuration |
Positive
|
|
|
Topology |
Buck |
|
|
Output Type |
Adjustable |
|
|
Number of Outputs |
1
|
|
|
Voltage - Input (Min) |
8V
|
|
|
Voltage - Input (Max) |
40V
|
|
|
Voltage - Output (Min/Fixed) |
1.21V |
|
|
Voltage - Output (Max) |
37V
|
|
|
Current - Output |
5A |
|
|
Frequency - Switching |
260kHz
|
|
|
Synchronous Rectifier |
No
|
|
|
Operating Temperature |
-40°C ~ 125°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
|
|
Supplier Device Package |
TO-263 (DDPAK-7)
|
|
|
Base Product Number |
LM2678 |
