Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Full Half-Bridge (H Bridge) Drivers
|
|
|
Manufacturer |
Renesas Electronics Corporation
|
|
|
Series |
-
|
|
|
Packaging |

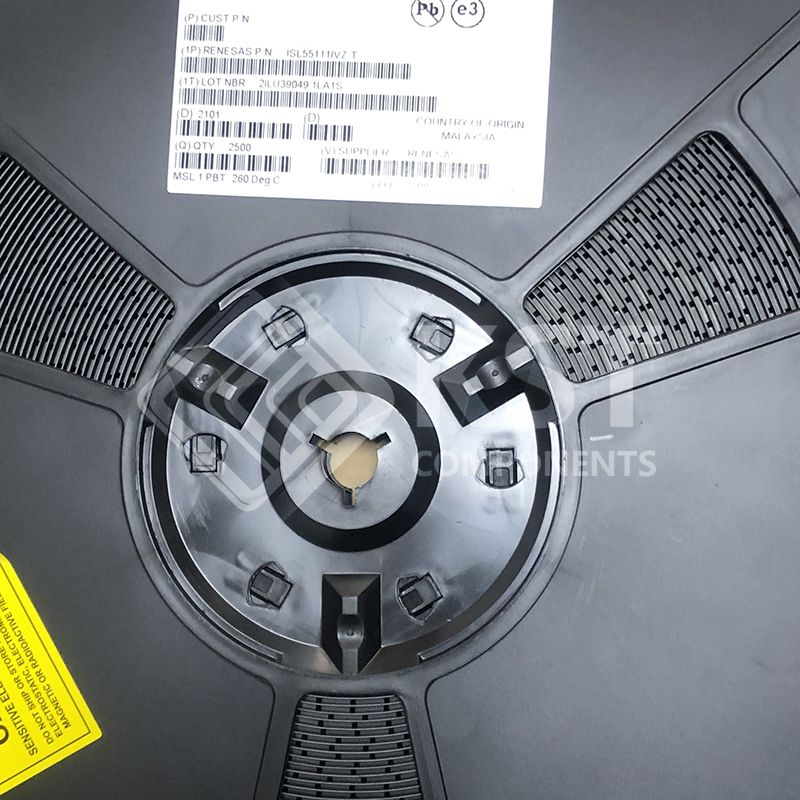

Tape & Reel (TR)
|
|
|
Part Status |
Obsolete
|
|
|
Output Configuration |
Half Bridge (2)
|
|
|
Applications |
Digital Imaging
|
|
|
Interface |
Logic
|
|
|
Load Type |
Capacitive and Resistive
|
|
|
Technology |
Power MOSFET
|
|
|
Rds On (Typ) |
3Ohm
|
|
|
Current - Output / Channel |
100mA
|
|
|
Current - Peak Output |
3.5A
|
|
|
Voltage - Supply |
2.7V ~ 5.5V
|
|
|
Voltage - Load |
5V ~ 13.2V
|
|
|
Operating Temperature |
-40°C ~ 150°C (TJ)
|
|
|
Features |
-
|
|
|
Fault Protection |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
8-TSSOP (0.173", 4.40mm Width)
|
|
|
Supplier Device Package |
8-TSSOP
|
|
|
Base Product Number |
ISL55111 |
