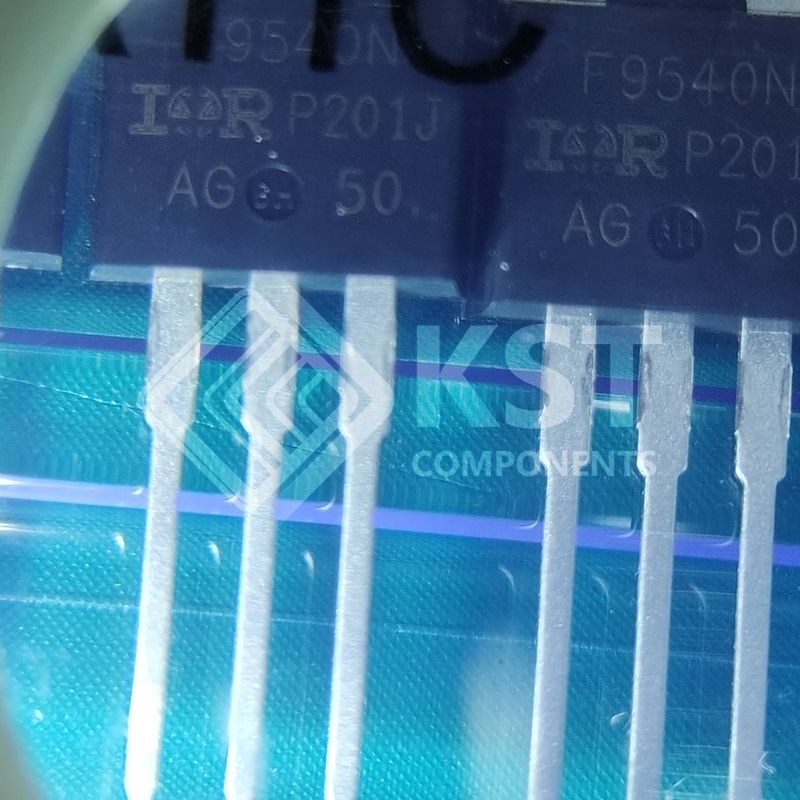

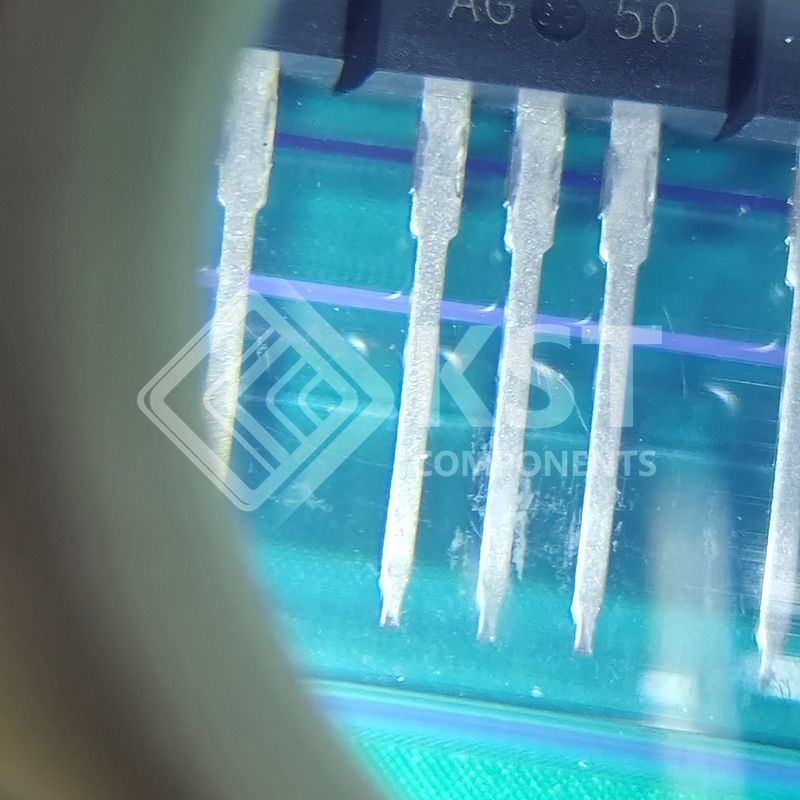

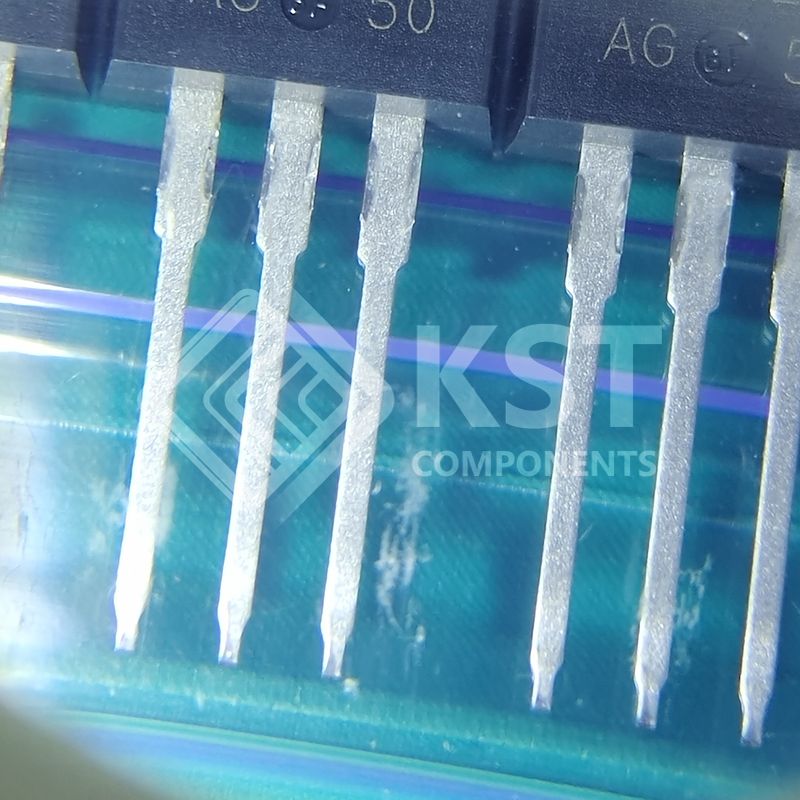

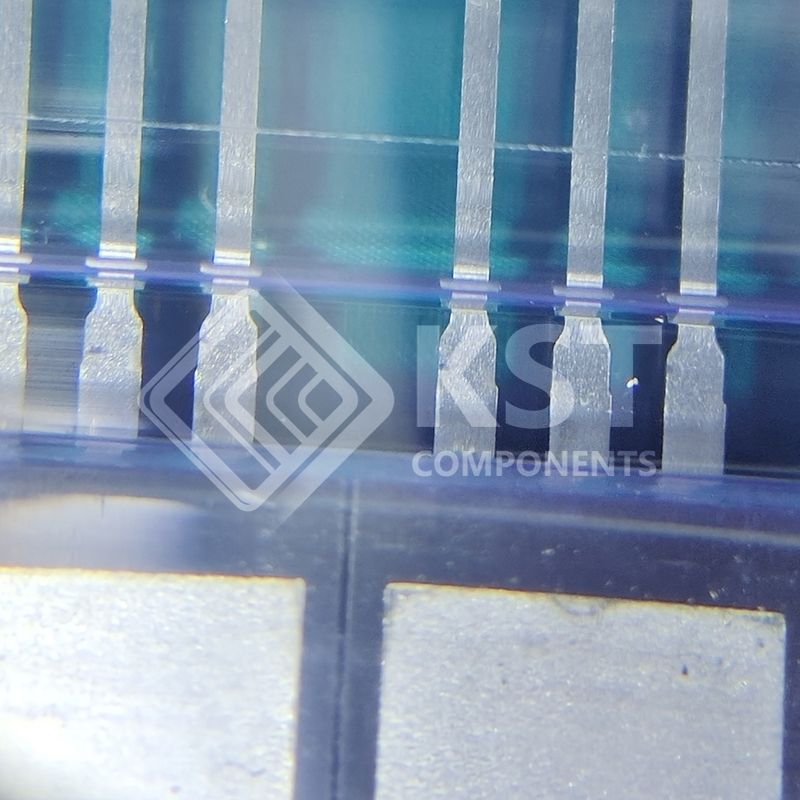

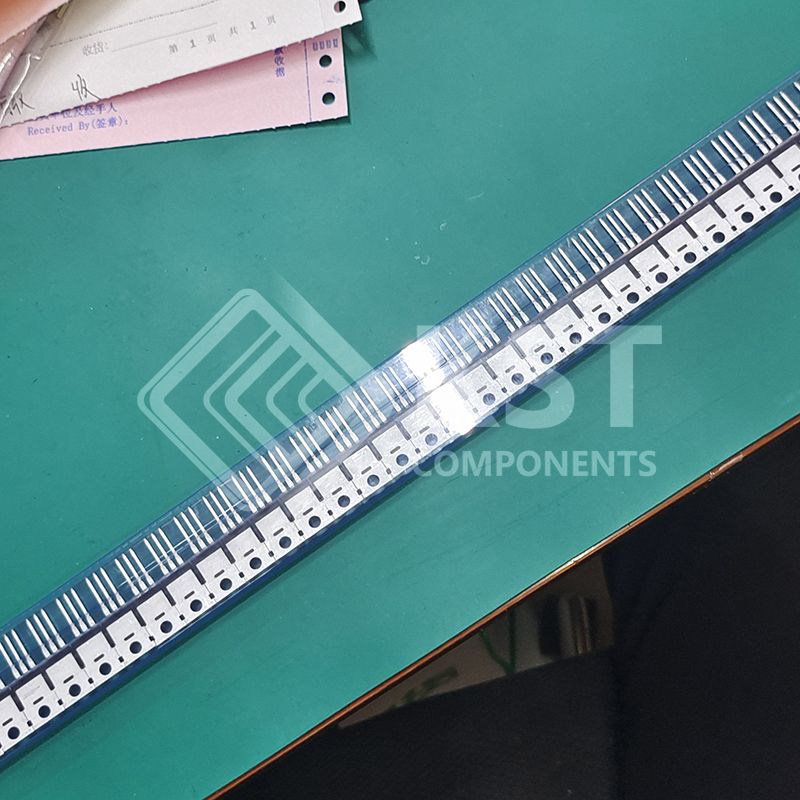

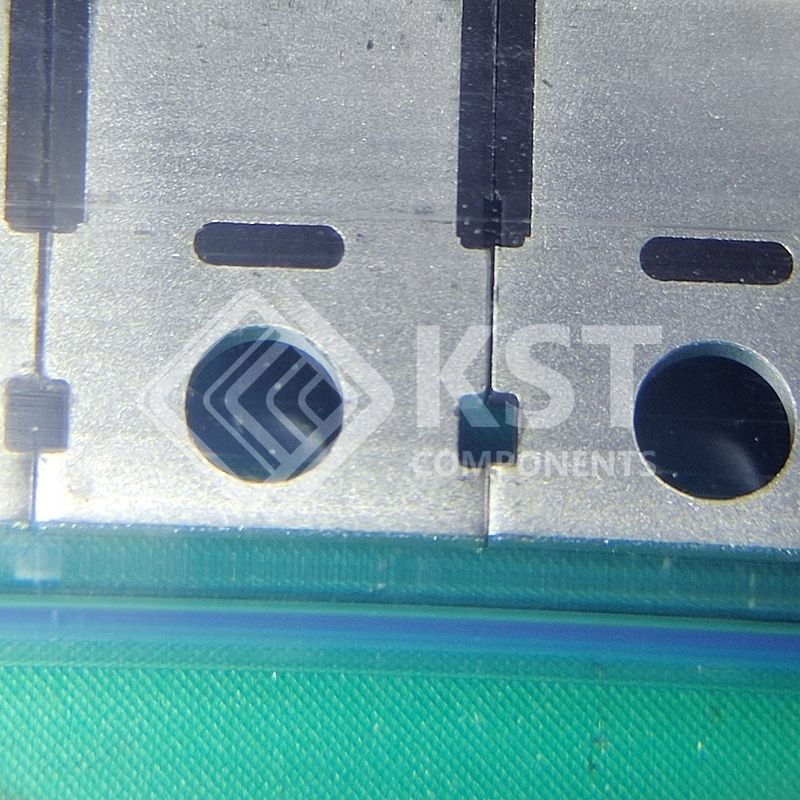

IRF9540NPBF
零件编号：
IRF9540NPBF
产品分类：
固态继电器（SSR）
制造商：
AIC tech
描述：
MOSFET P-CH 100V 23A TO220AB
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Infineon Technologies |
|
|
Series |
HEXFET® |
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
100 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
23A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
10V
|
|
|
Rds On (Max) @ Id, Vgs |
117mOhm @ 11A, 10V
|
|
|
Vgs(th) (Max) @ Id |
4V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
97 nC @ 10 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
1300 pF @ 25 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
140W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Through Hole
|
|
|
Supplier Device Package |
TO-220AB
|
|
|
Package / Case |
TO-220-3 |
|
|
Base Product Number |
IRF9540 |
