IPB020N10N5LF
零件编号：
IPB020N10N5LF
产品分类：
固态继电器（SSR）
制造商：
AIC tech
描述：
MOSFET N-CH 100V 176A TO263-3
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Infineon Technologies |
|
|
Series |
OptiMOS™-5 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
100 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
176A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
10V
|
|
|
Rds On (Max) @ Id, Vgs |
2mOhm @ 100A, 10V
|
|
|
Vgs(th) (Max) @ Id |
4.1V @ 270µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
195 nC @ 10 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
840 pF @ 50 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
313W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
PG-TO263-3
|
|
|
Package / Case |

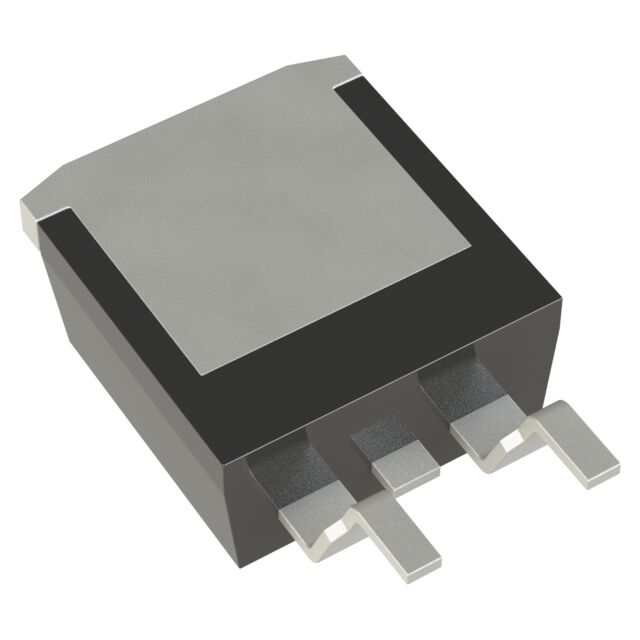

TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
|
|
Base Product Number |
IPB020 |
