Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Rohm Semiconductor |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Not For New Designs
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Fixed |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
45V
|
|
|
Voltage - Output (Min/Fixed) |
5V
|
|
|
Voltage - Output (Max) |
-
|
|
|
Voltage Dropout (Max) |
0.5V @ 300mA
|
|
|
Current - Output |
500mA |
|
|
Current - Quiescent (Iq) |
150 µA
|
|
|
PSRR |
60dB (120Hz)
|
|
|
Control Features |
-
|
|
|
Protection Features |
Over Current, Thermal Shutdown, UVLO
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|

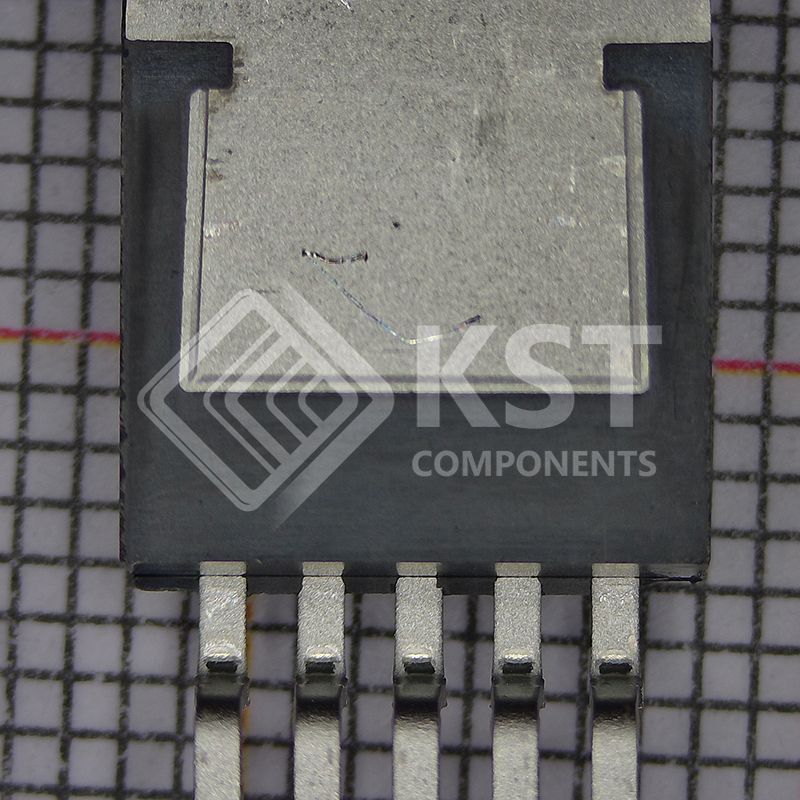

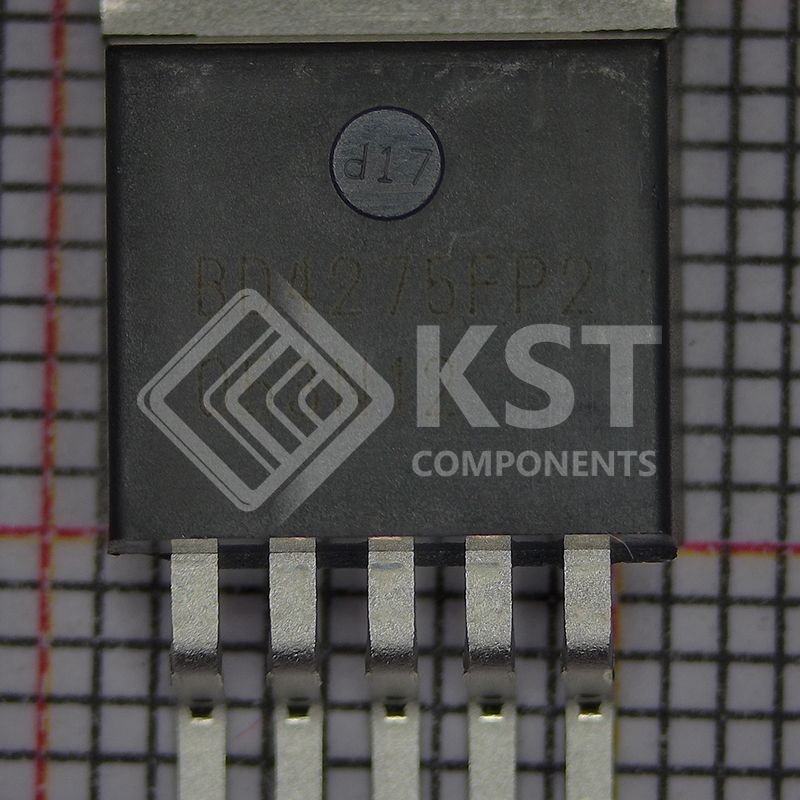

Package / Case |
TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
|
|
|
Supplier Device Package |
TO-263-5
|
|
|
Base Product Number |
BD4275 |
