Category |
Discrete Semiconductor Products
Transistors
Bipolar (BJT)
Single Bipolar Transistors
|
|
|
Mfr |
Nexperia USA Inc. |
|
|
Series |
-
|
|
|
Packaging |

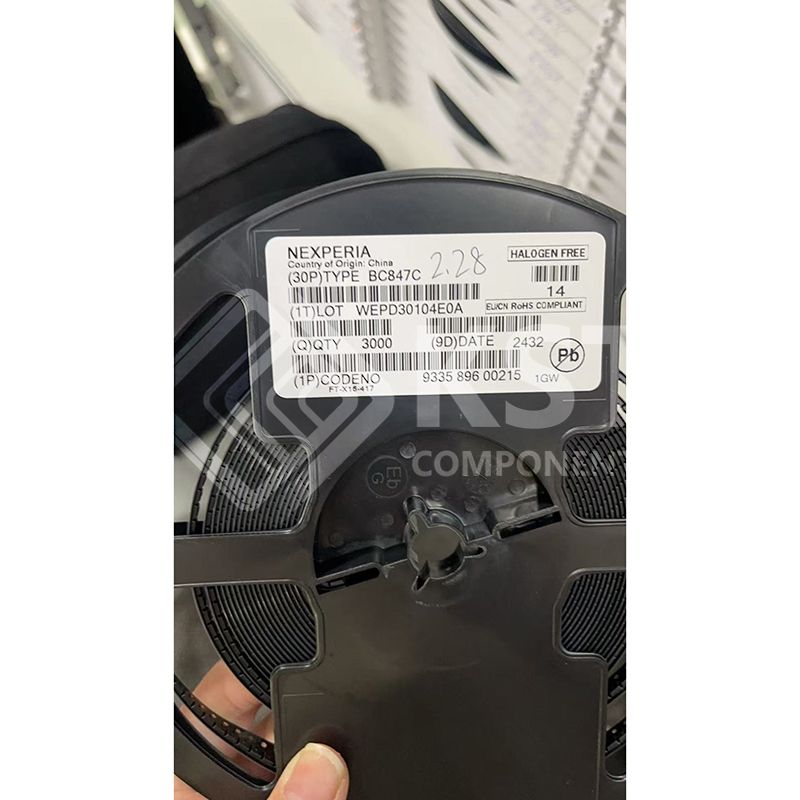

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Transistor Type |
NPN |
|
|
Current - Collector (Ic) (Max) |
100 mA
|
|
|
Voltage - Collector Emitter Breakdown (Max) |
45 V
|
|
|
Vce Saturation (Max) @ Ib, Ic |
400mV @ 5mA, 100mA
|
|
|
Current - Collector Cutoff (Max) |
15nA (ICBO)
|
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce |
420 @ 2mA, 5V
|
|
|
Power - Max |
250 mW
|
|
|
Frequency - Transition |
100MHz
|
|
|
Operating Temperature |
150°C (TJ)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|

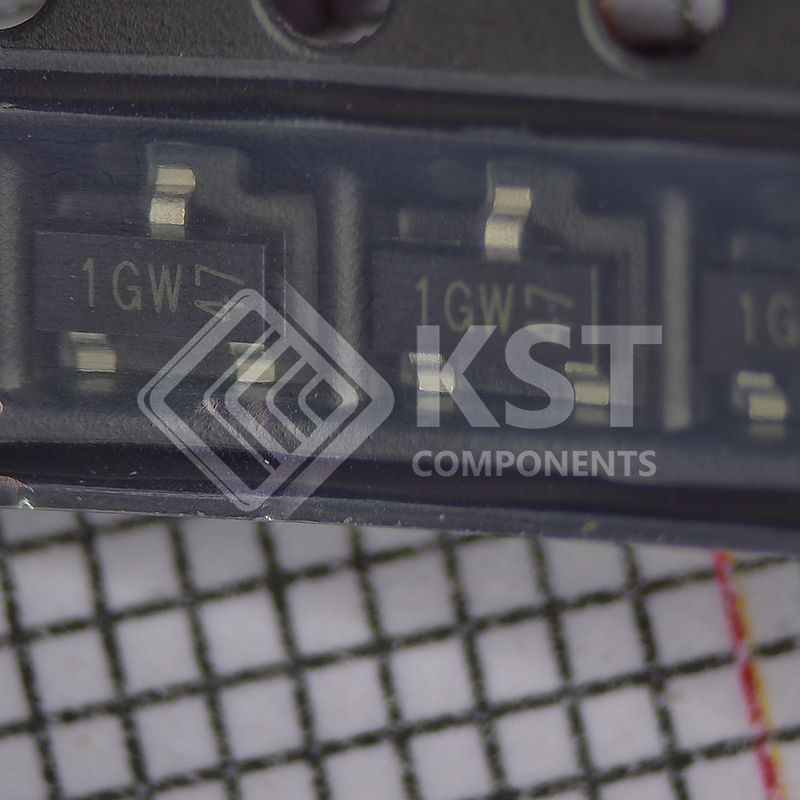

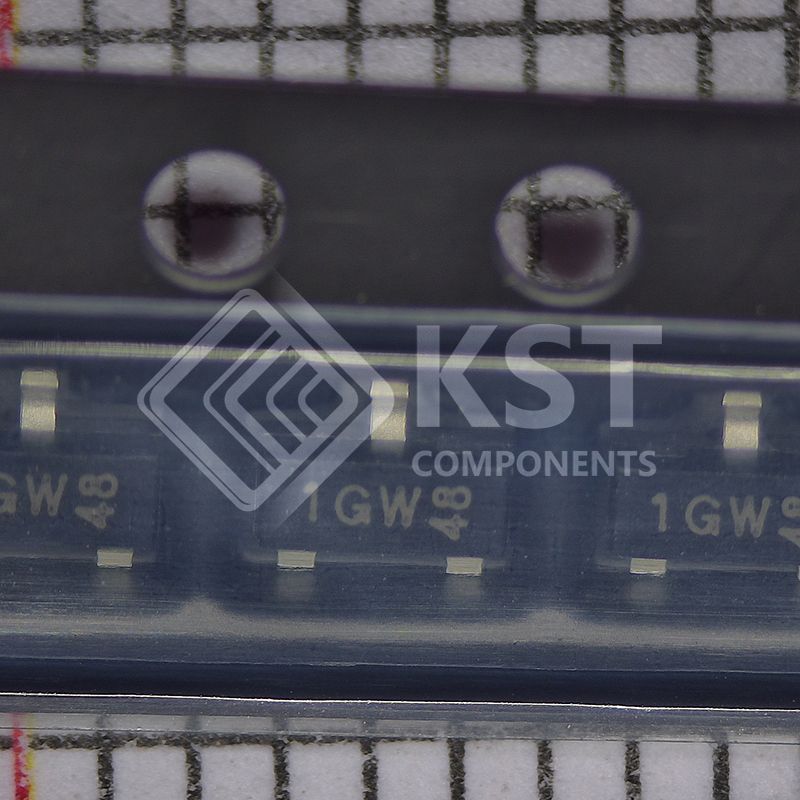

Package / Case |
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package |
TO-236AB
|
|
|
Base Product Number |
BC847 |
