Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
EVVO |
|
|
Series |
AMS1117 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Fixed |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
12V
|
|
|
Voltage - Output (Min/Fixed) |
1.8V
|
|
|
Voltage - Output (Max) |
-
|
|
|
Voltage Dropout (Max) |
1.3V @ 1A
|
|
|
Current - Output |
1A |
|
|
Current - Quiescent (Iq) |
10 mA
|
|
|
PSRR |
75dB (120Hz)
|
|
|
Control Features |
Current Limit
|
|
|
Protection Features |
Over Current, Over Temperature
|
|
|
Operating Temperature |
-40°C ~ 125°C (TJ)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|

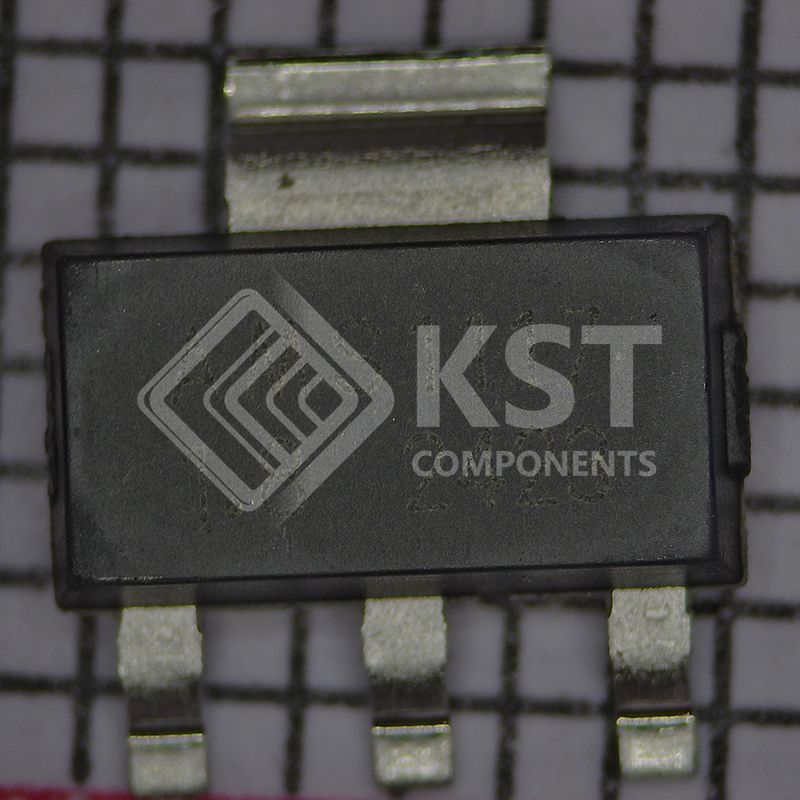

Package / Case |
TO-261-4, TO-261AA
|
|
|
Supplier Device Package |
SOT-223-3L
|
