Category |
Connectors, Interconnects
USB, DVI, HDMI Connectors
USB, DVI, HDMI Connector Assemblies
|
|
|
Manufacturer |
Molex
|
|
|
Series |
47272 |
|
|
Packaging |

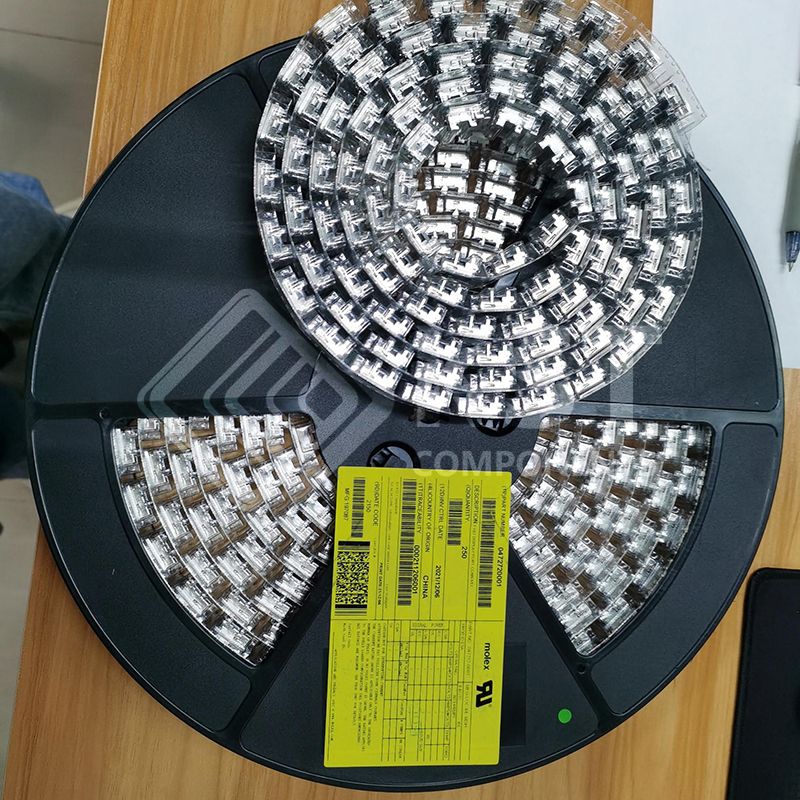

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Connector Type |

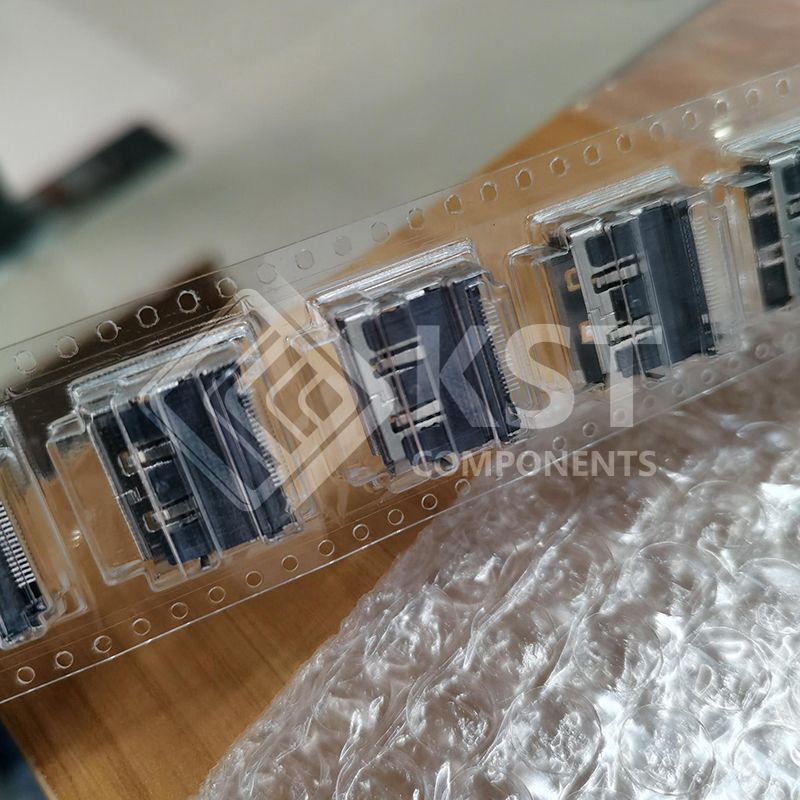

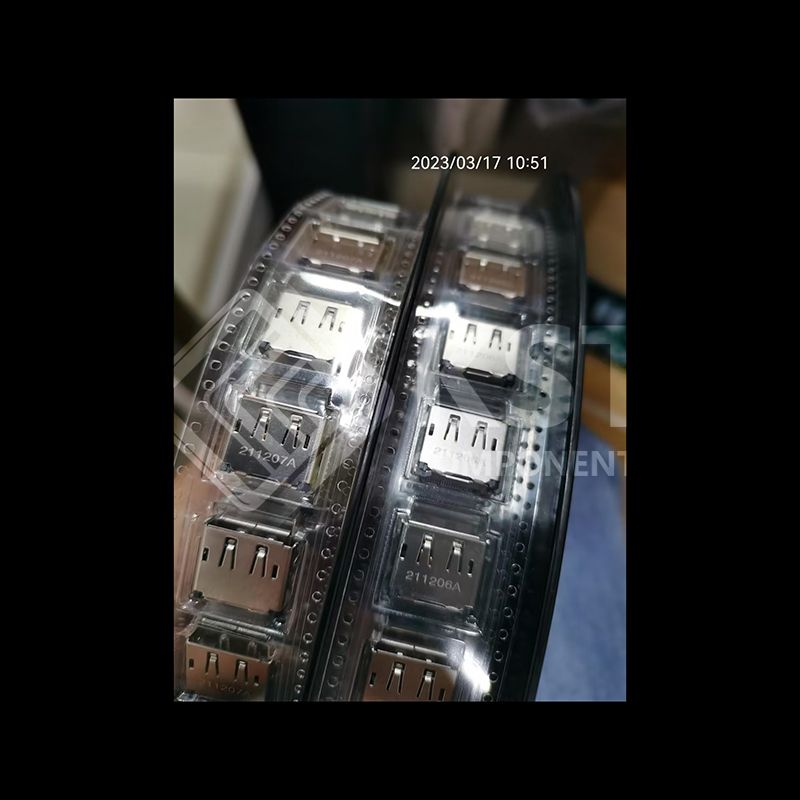

DisplayPort
|
|
|
Number of Contacts |
20
|
|
|
Gender |
Receptacle
|
|
|
Specifications |
-
|
|
|
Mounting Type |
Surface Mount, Right Angle; Through Hole
|
|
|
Mounting Feature |
Horizontal
|
|
|
Termination |
Solder
|
|
|
Features |
Board Guide, Latch Lock
|
|
|
Ingress Protection |
-
|
|
|
Operating Temperature |
-20°C ~ 85°C
|
|
|
Number of Ports |
1
|
|
|
Current Rating (Amps) |
0.5A
|
|
|
Voltage - Rated |
40VAC
|
|
|
Mating Cycles |
10000
|
|
|
Shielding |
Shielded
|
|
|
Contact Finish |
Gold
|
|
|
Shell/Shielding Material |
Steel, Stainless
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Insulation Color |
Black
|
|
|
Base Product Number |
047272 |
