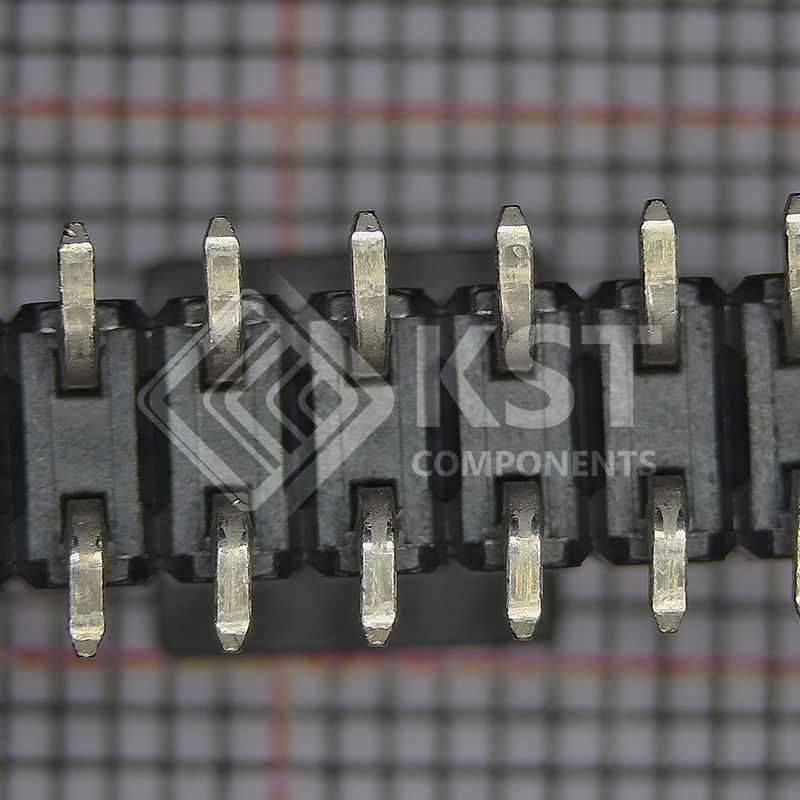

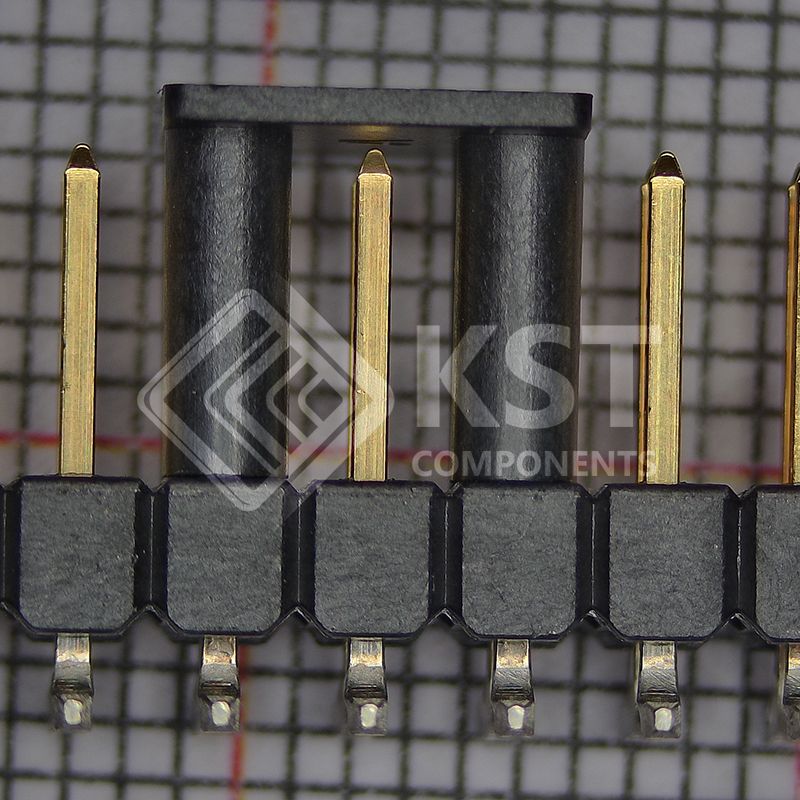

1241050-8
零件编号：
1241050-8
产品分类：
挖斗、钩子、探针、探针工具、调谐工具
制造商：
Cinch Connectivity Solutions
描述：
CONN HEADER SMD 16POS 2.54MM
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr |
TE Connectivity AMP Connectors |
|
|
Series |
AMPMODU Mod II |
|
|

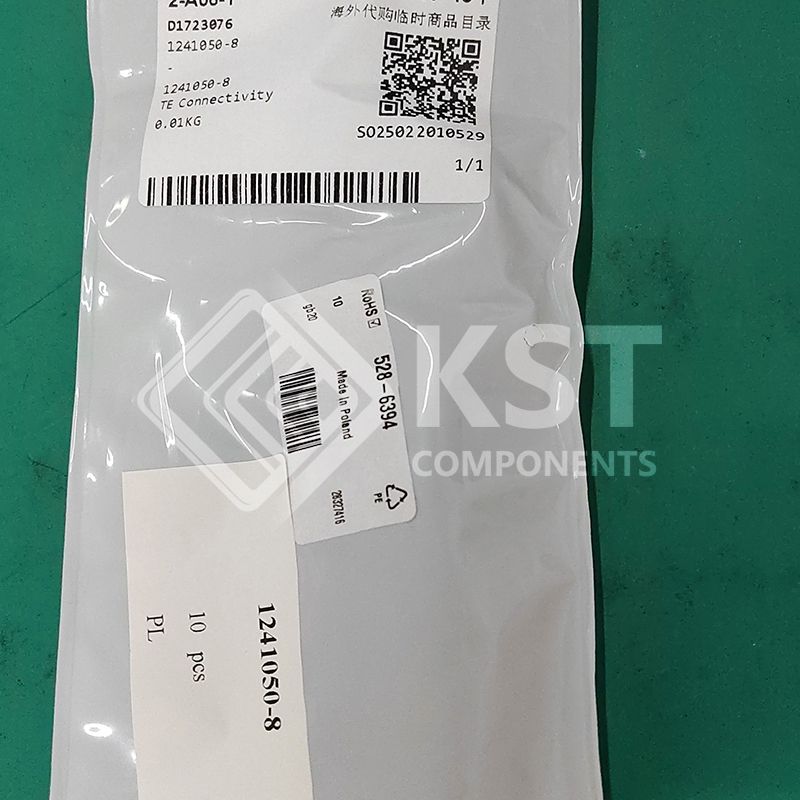

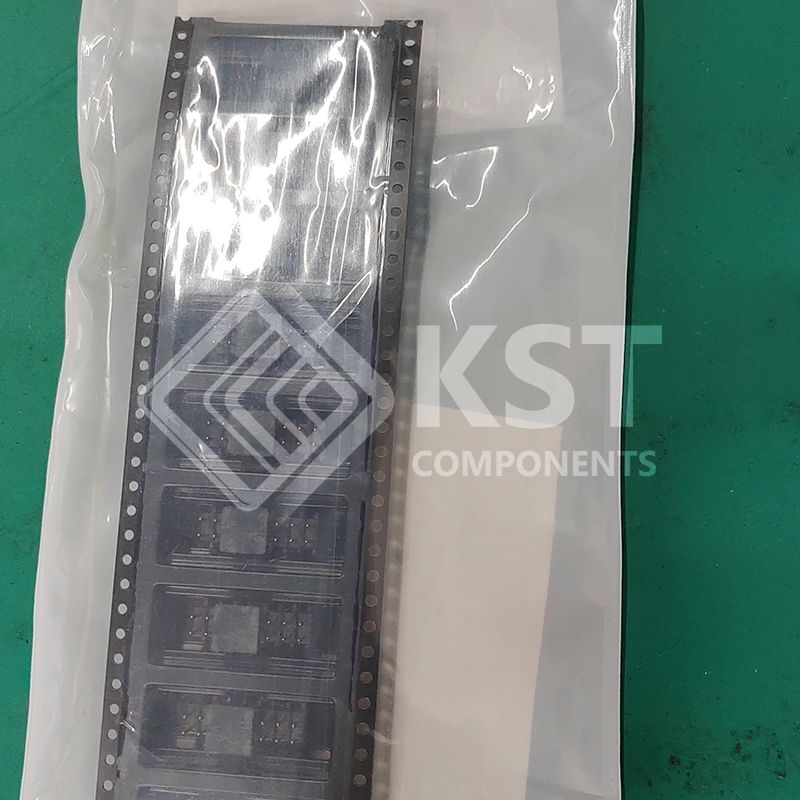

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header, Breakaway |
|
|
Contact Type |
Male Pin
|
|
|
Pitch - Mating |
0.100" (2.54mm) |
|
|
Number of Positions |
16 |
|
|
Number of Rows |
2
|
|
|
Row Spacing - Mating |
0.100" (2.54mm) |
|
|
Number of Positions Loaded |
All
|
|
|
Style |
Board to Board or Cable |
|
|
Shrouding |
Unshrouded
|
|
|
Mounting Type |
Surface Mount |
|
|
Termination |
Solder
|
|
|
Fastening Type |
Push-Pull
|
|
|
Contact Length - Mating |
0.228" (5.80mm)
|
|
|
Contact Length - Post |
-
|
|
|
Overall Contact Length |
-
|
|
|
Insulation Height |
0.110" (2.79mm)
|
|
|
Contact Shape |
Square
|
|
|
Contact Finish - Mating |
Gold or Gold-Palladium
|
|
|
Contact Finish Thickness - Mating |
Flash
|
|
|
Contact Finish - Post |
Tin
|
|
|
Contact Material |
Brass
|
|
|
Insulation Material |
Polycyclohexylenedimethylene Terephthalate (PCT)
|
|
|
Features |
Pick and Place
|
|
|
Operating Temperature |
-
|
|
|
Ingress Protection |
-
|
|
|
Material Flammability Rating |
-
|
|
|
Insulation Color |
Black
|
|
|
Current Rating (Amps) |
-
|
|
|
Voltage Rating |
-
|
|
|
Mated Stacking Heights |
-
|
|
|
Contact Finish Thickness - Post |
118.1µin (3.00µm)
|
|
|
Applications |
-
|
|
|
Base Product Number |
1241050 |
