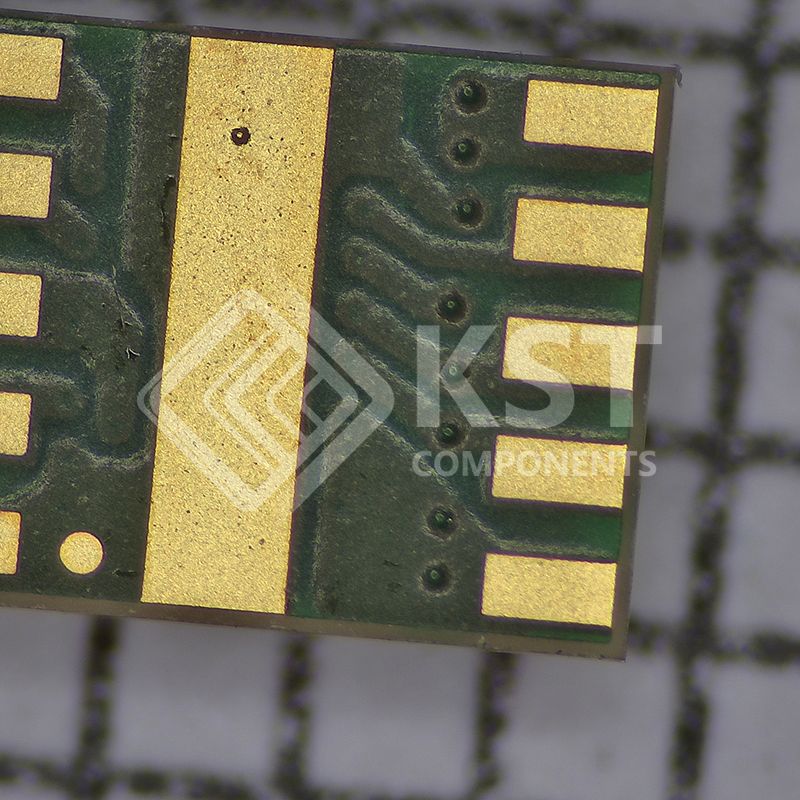

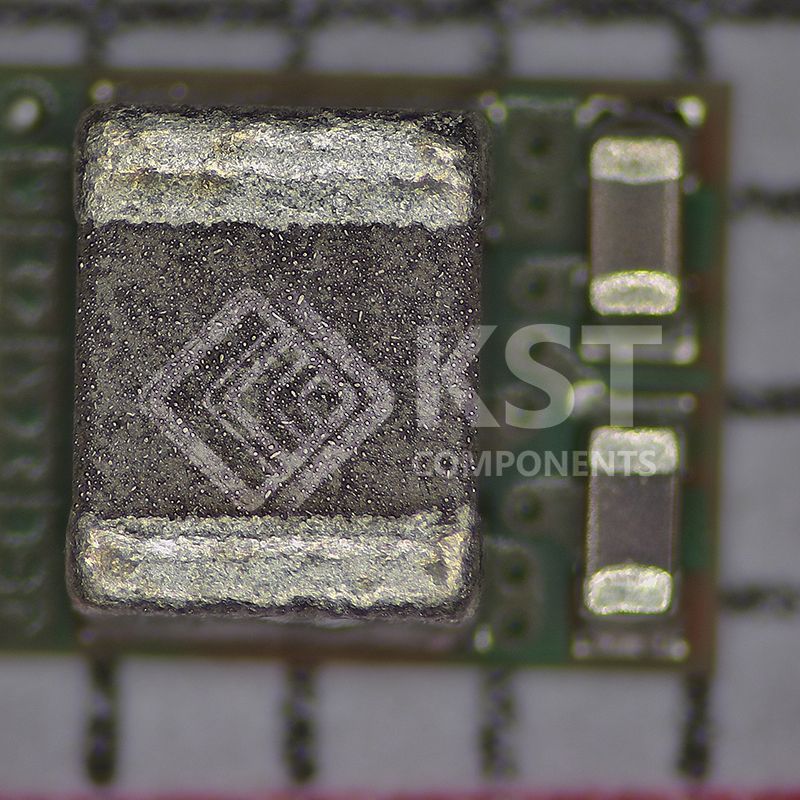

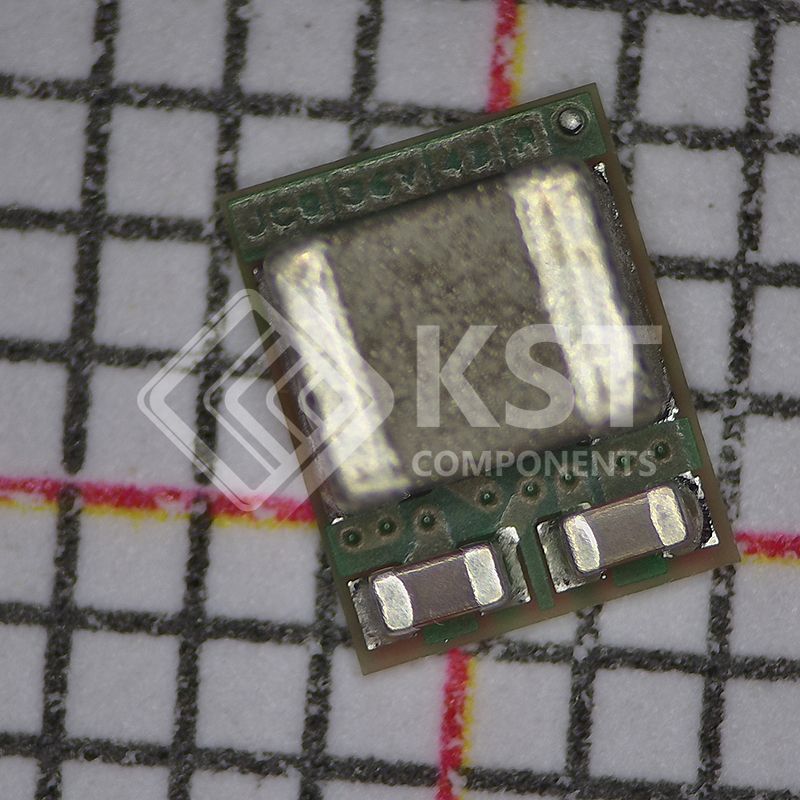

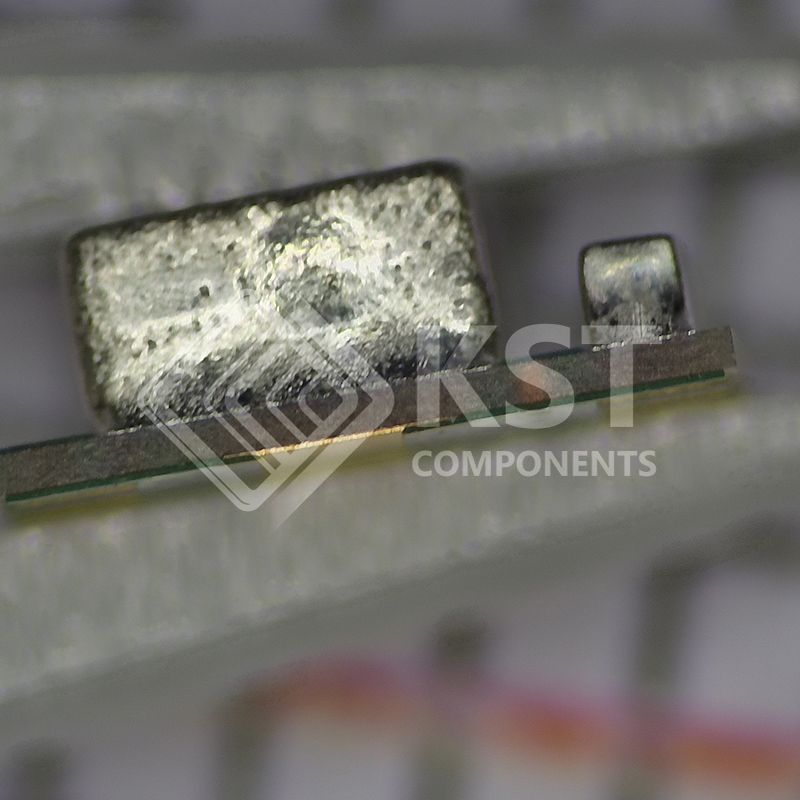

LMZM23601SILR
Part Number:
LMZM23601SILR
Product Classification:
Programmable Display Switches
Manufacturer:
3PEAK
Description:
DC DC CONVERTER 1.2-15V
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Power Supplies - Board Mount
DC DC Converters
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
-
|
|
|
Packaging |

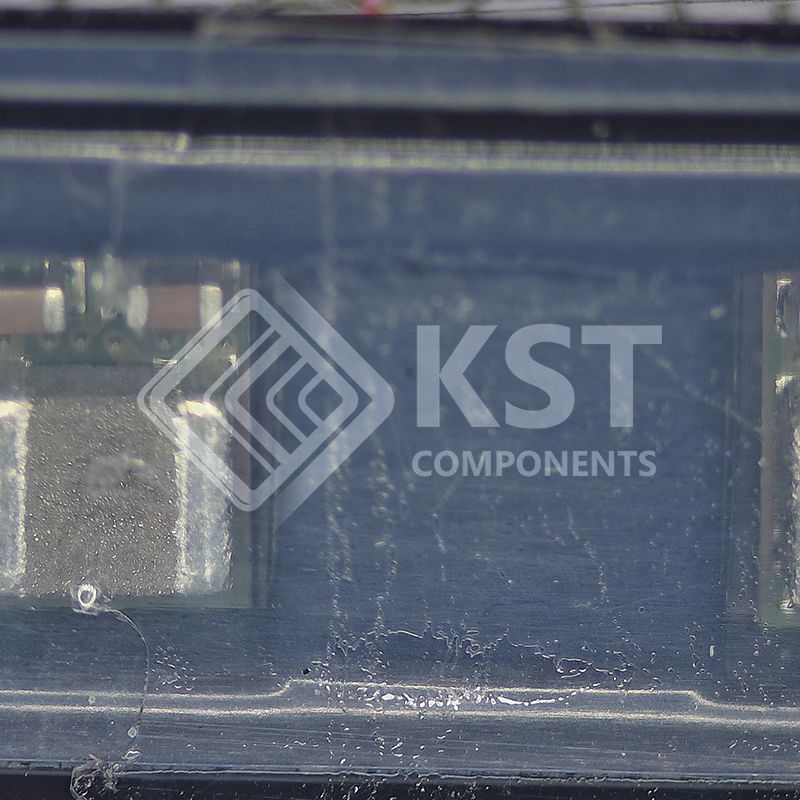

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Non-Isolated PoL Module
|
|
|
Number of Outputs |
1
|
|
|
Voltage - Input (Min) |
4V
|
|
|
Voltage - Input (Max) |
36V
|
|
|
Voltage - Output 1 |
1.2 ~ 15V |
|
|
Voltage - Output 2 |
-
|
|
|
Voltage - Output 3 |
-
|
|
|
Voltage - Output 4 |
-
|
|
|
Current - Output (Max) |
1A
|
|
|
Applications |
ITE (Commercial)
|
|
|
Features |
OCP, SCP, UVLO
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Efficiency |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
10-LDFN Exposed Pad, Module
|
|
|
Size / Dimension |
0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm)
|
|
|
Supplier Device Package |
10-uSIP (3.8x3)
|
|
|
Base Product Number |
LMZM23601 |
