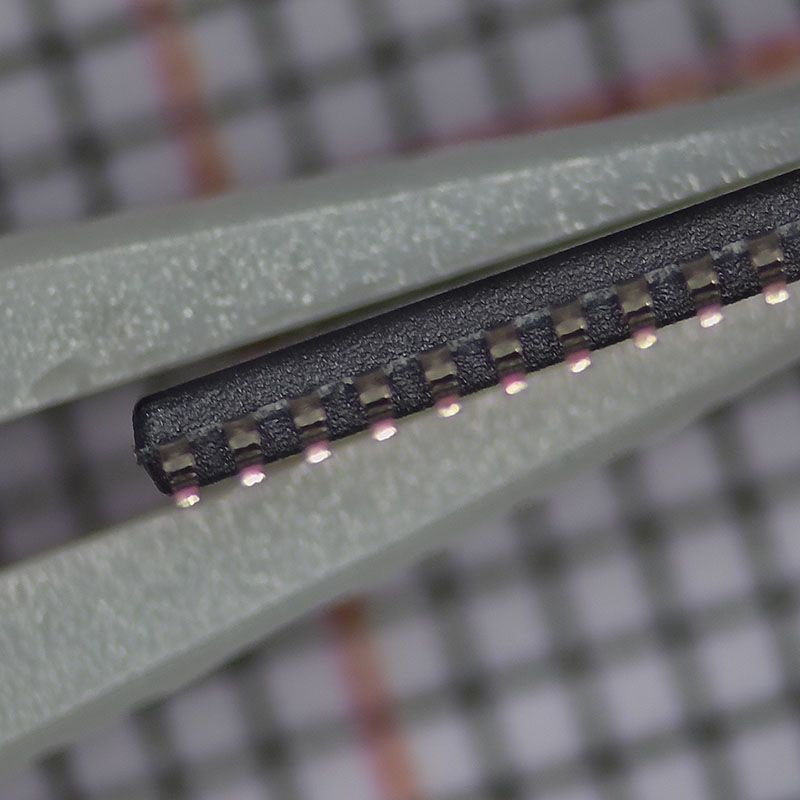

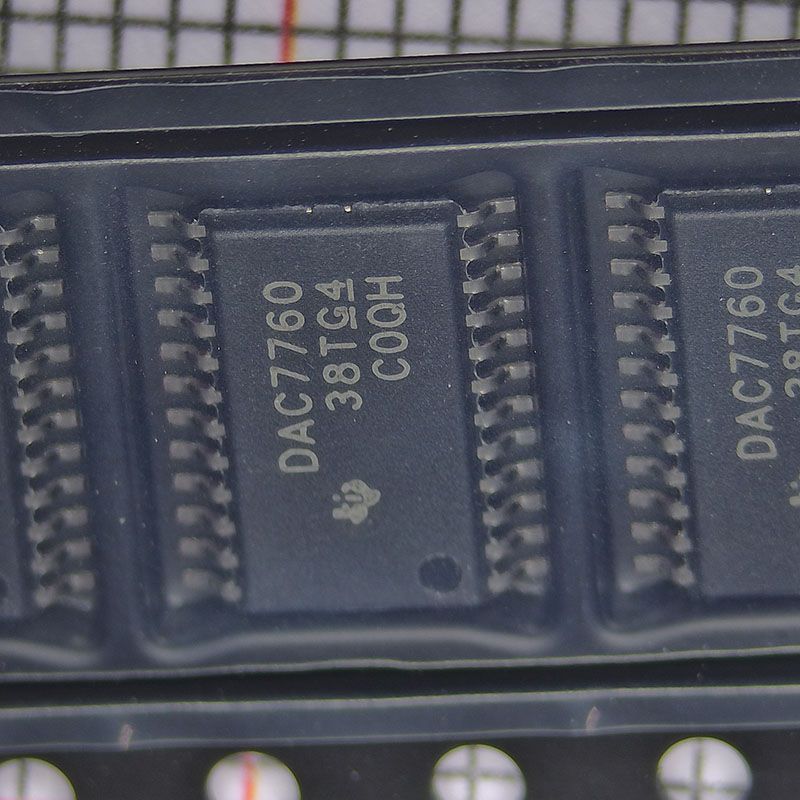

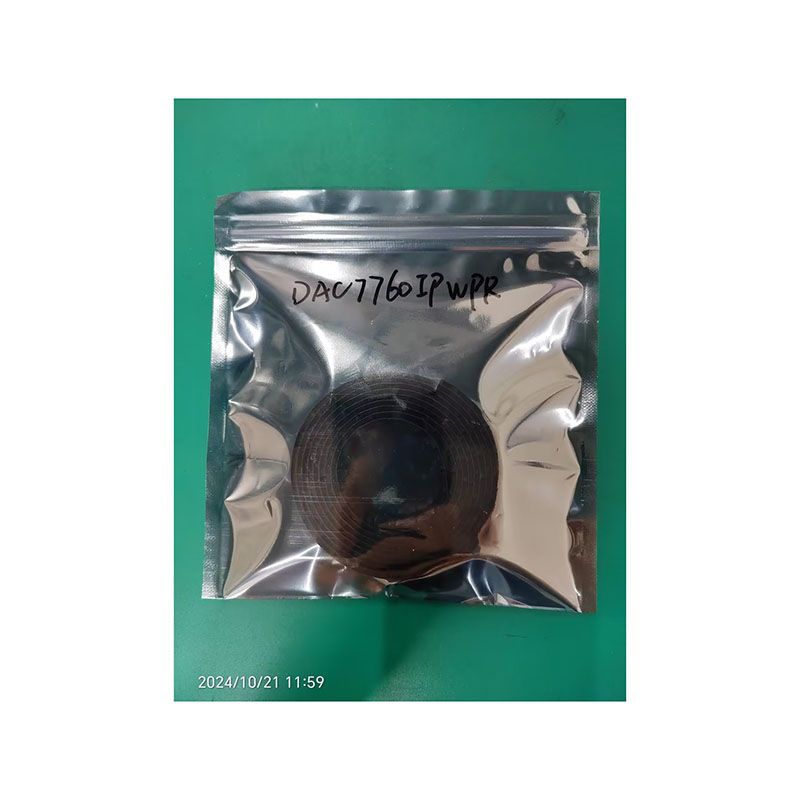

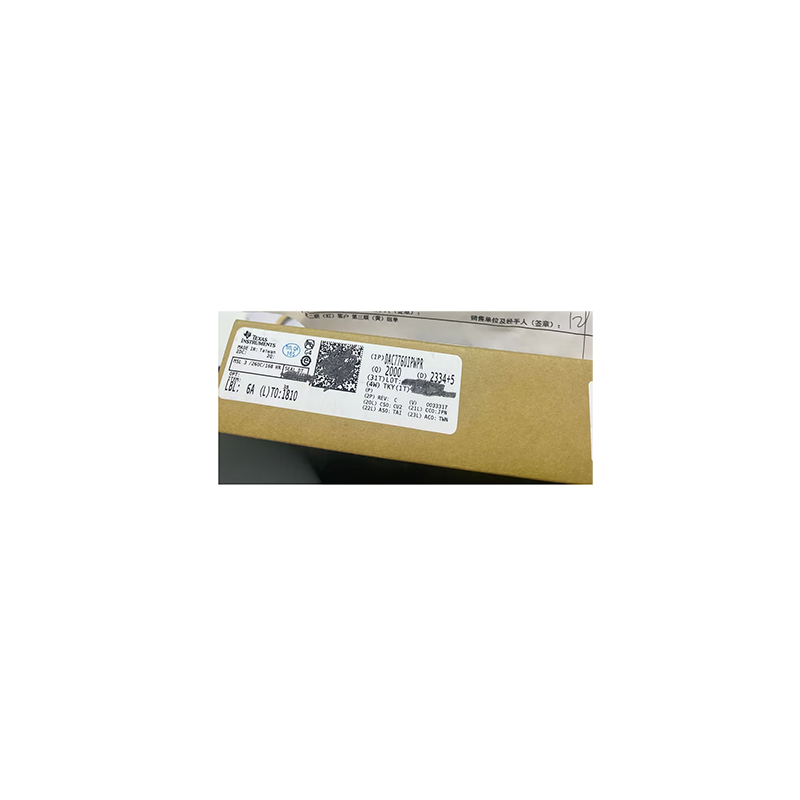

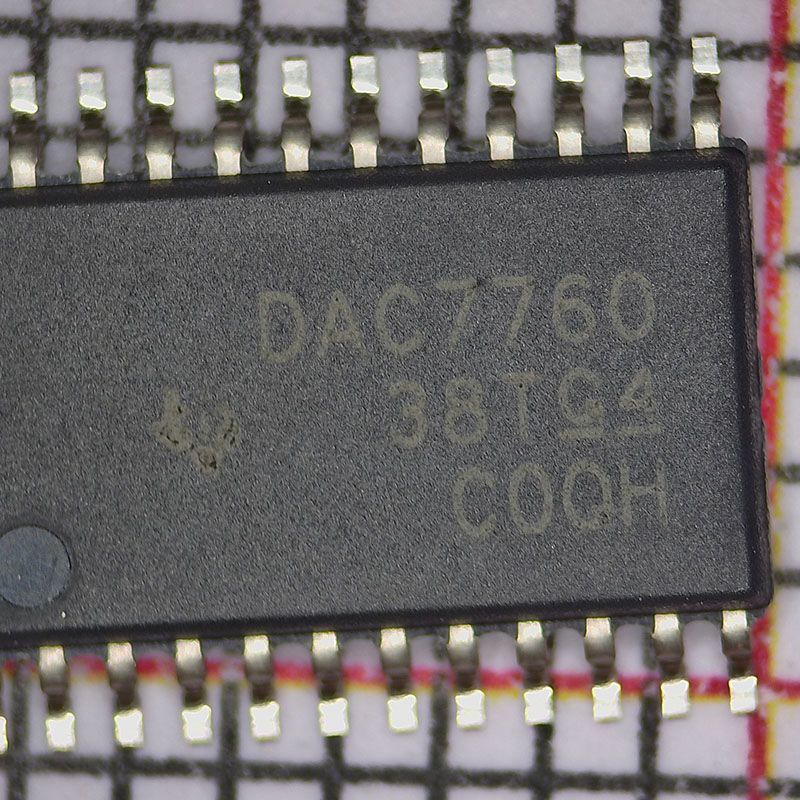

DAC7760IPWPR
Part Number:
DAC7760IPWPR
Product Classification:
Isolation Transformers and Autotransformers, Step Up, Step Down
Manufacturer:
3PEAK
Description:
IC DAC 12BIT V OR A-OUT 24HTSSOP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Data Acquisition
Digital to Analog Converters (DAC)
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Number of Bits |
12
|
|
|
Number of D/A Converters |
1
|
|
|
Settling Time |
25µs (Typ)
|
|
|
Output Type |
Voltage or Current - Buffered
|
|
|
Differential Output |
No
|
|
|
Data Interface |
SPI, DSP
|
|
|
Reference Type |
External, Internal
|
|
|
Voltage - Supply, Analog |
10V ~ 36V, -18V
|
|
|
Voltage - Supply, Digital |
2.7V ~ 5.5V
|
|
|
INL/DNL (LSB) |
-, ±1 (Max)
|
|
|
Architecture |
String DAC
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Package / Case |

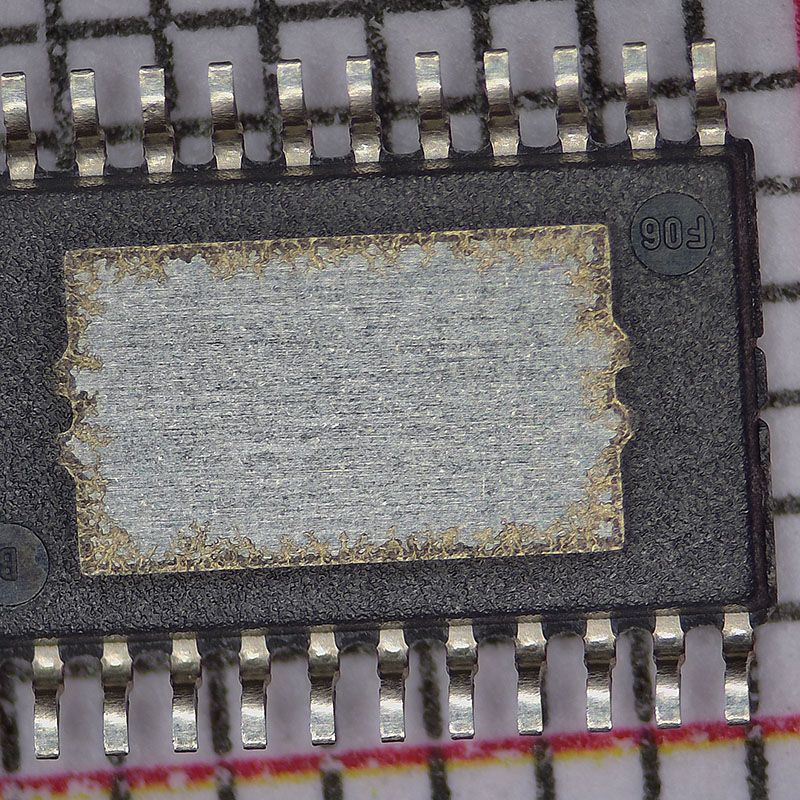

24-PowerTSSOP (0.173", 4.40mm Width)
|
|
|
Supplier Device Package |
24-HTSSOP
|
|
|
Mounting Type |
Surface Mount
|
|
|
Base Product Number |
DAC7760 |
