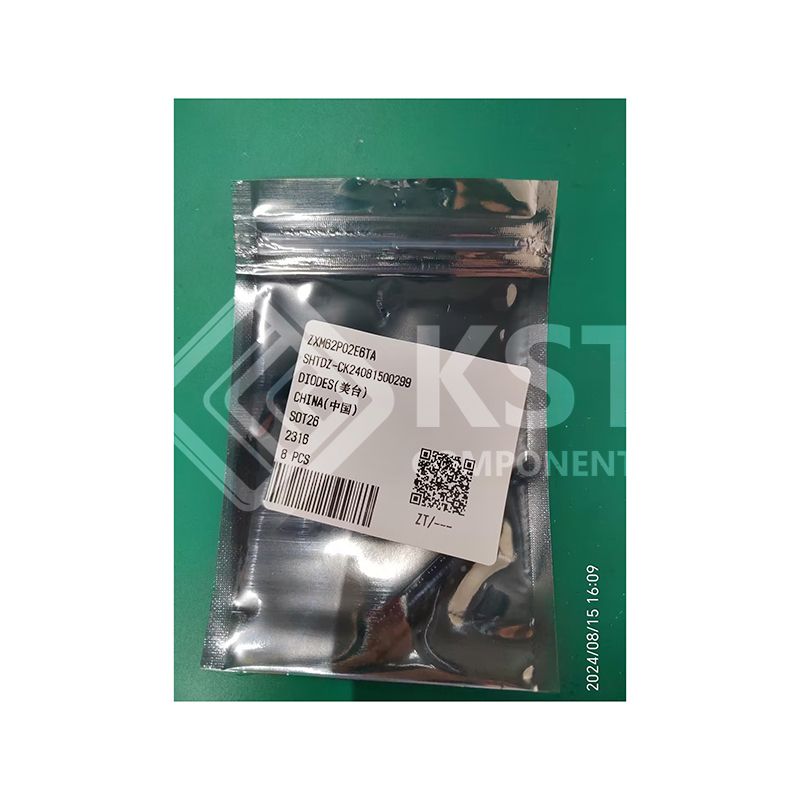

ZXM62P02E6TA
Part Number:
ZXM62P02E6TA
Product Classification:
Solid State Relays (SSR)
Manufacturer:
Accuenergy
Description:
MOSFET P-CH 20V 2.3A SOT23-6
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Diodes Incorporated |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
20 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
2.3A (Ta) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
2.7V, 4.5V
|
|
|
Rds On (Max) @ Id, Vgs |
200mOhm @ 1.6A, 4.5V
|
|
|
Vgs(th) (Max) @ Id |
700mV @ 250µA (Min)
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
5.8 nC @ 4.5 V
|
|
|
Vgs (Max) |
±12V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
320 pF @ 15 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
1.1W (Ta)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
SOT-23-6
|
|
|
Package / Case |
SOT-23-6 |
|
|
Base Product Number |
ZXM62P02 |
