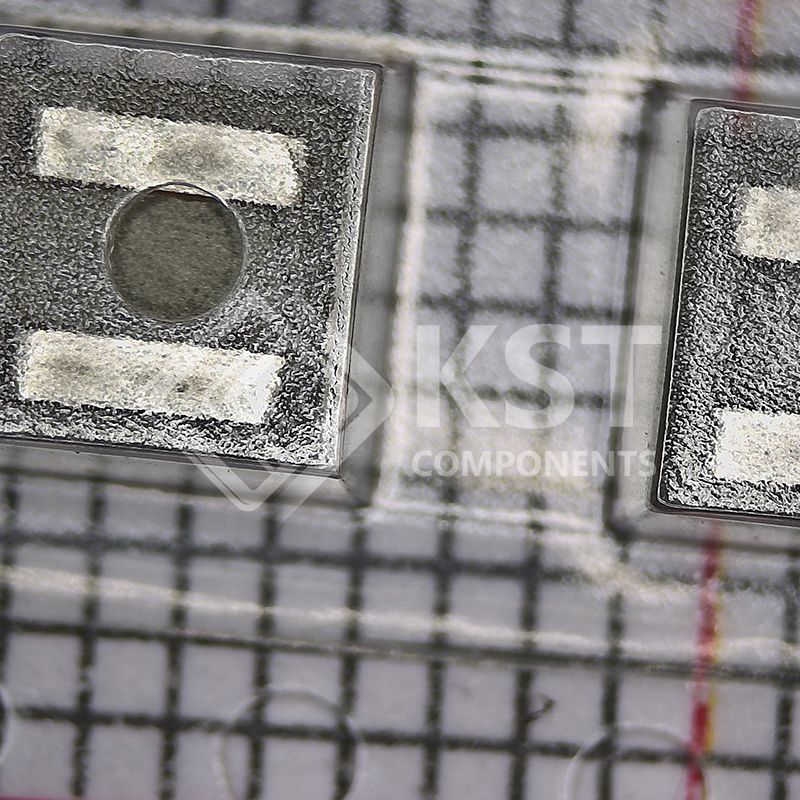

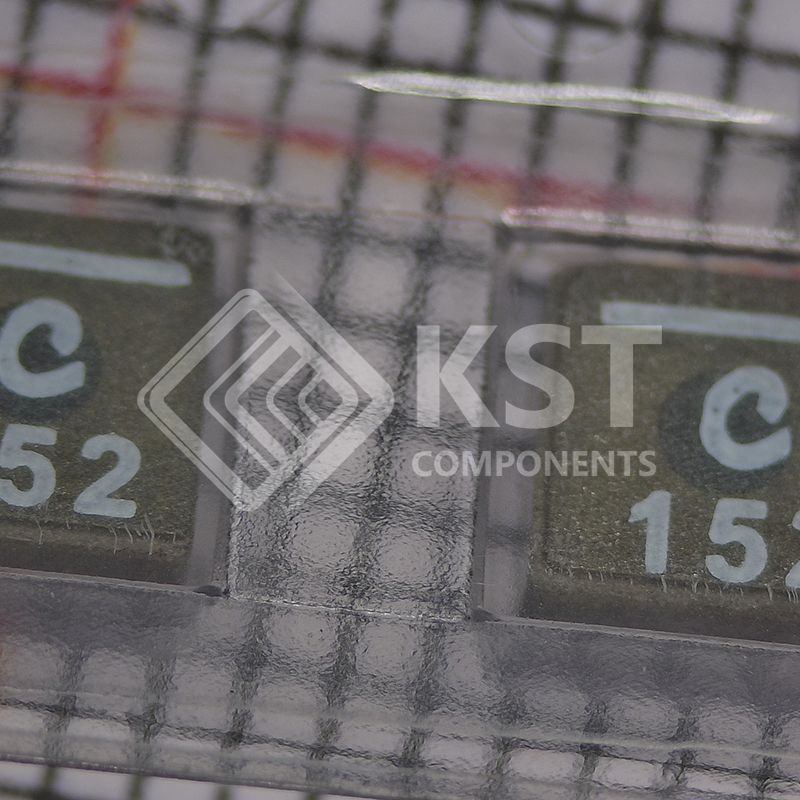

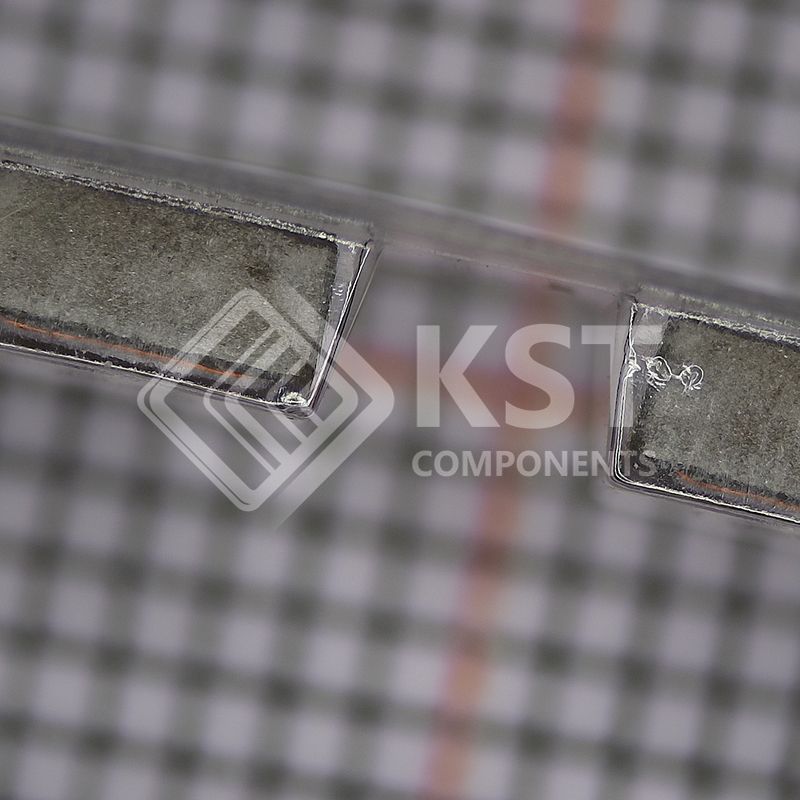

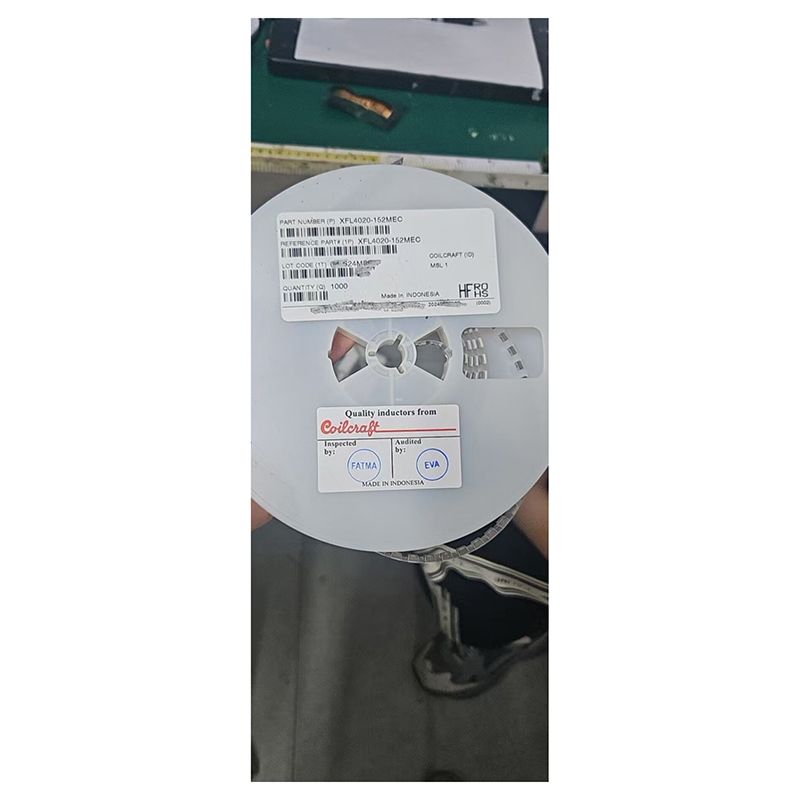

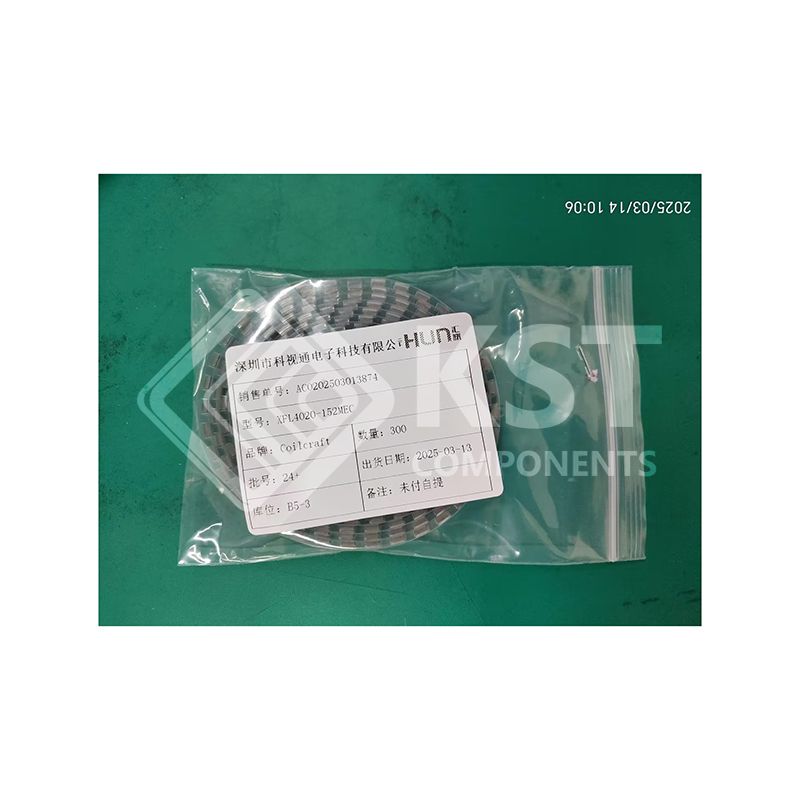

XFL4020-152MEC
Part Number:
XFL4020-152MEC
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Altera
Description:
FIXED IND 1.5UH 9.1A 15.8MOHM SM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Coilcraft |
|
|
Series |
XFL4020 |
|
|
Packaging |
Strip
|
|
|
Part Status |
Active
|
|
|
Type |
Molded
|
|
|
Material - Core |
Metal Composite |
|
|
Inductance |
1.5 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
9.1 A |
|
|
Current - Saturation (Isat) |
4.6A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
15.8mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
59MHz
|
|
|
Ratings |
AEC-Q200
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Inductance Frequency - Test |
1 MHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
1616 (4040 Metric)
|
|
|
Supplier Device Package |
1616
|
|
|
Size / Dimension |
0.157" L x 0.157" W (4.00mm x 4.00mm)
|
|
|
Height - Seated (Max) |
0.083" (2.10mm)
|
