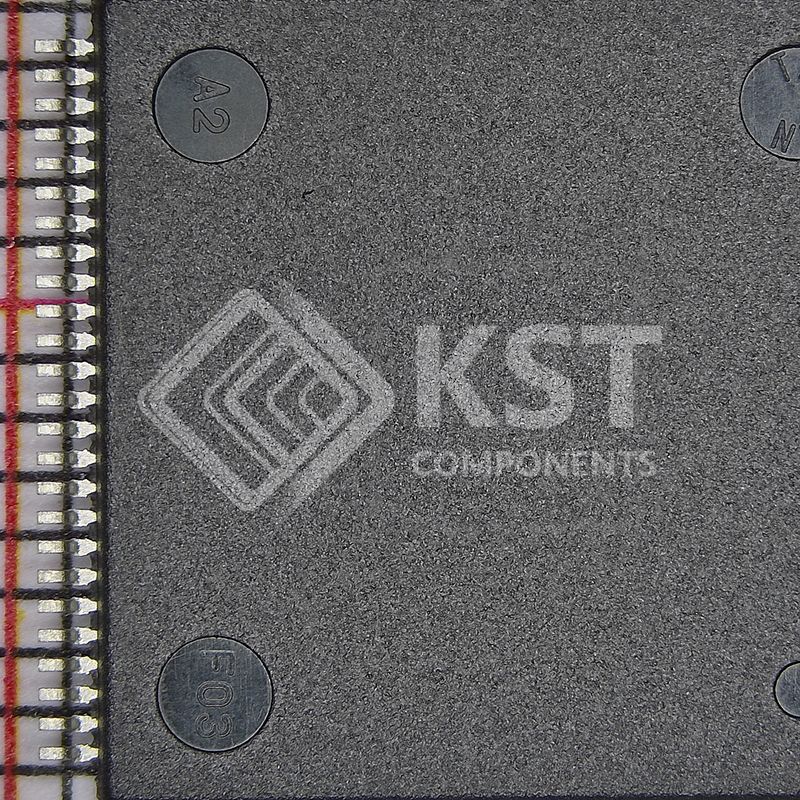

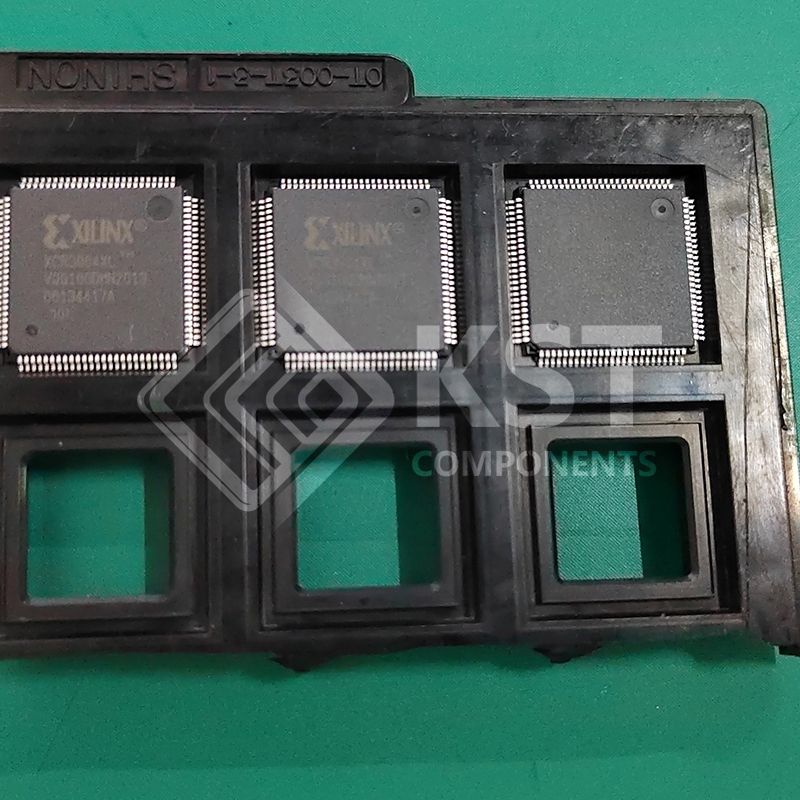

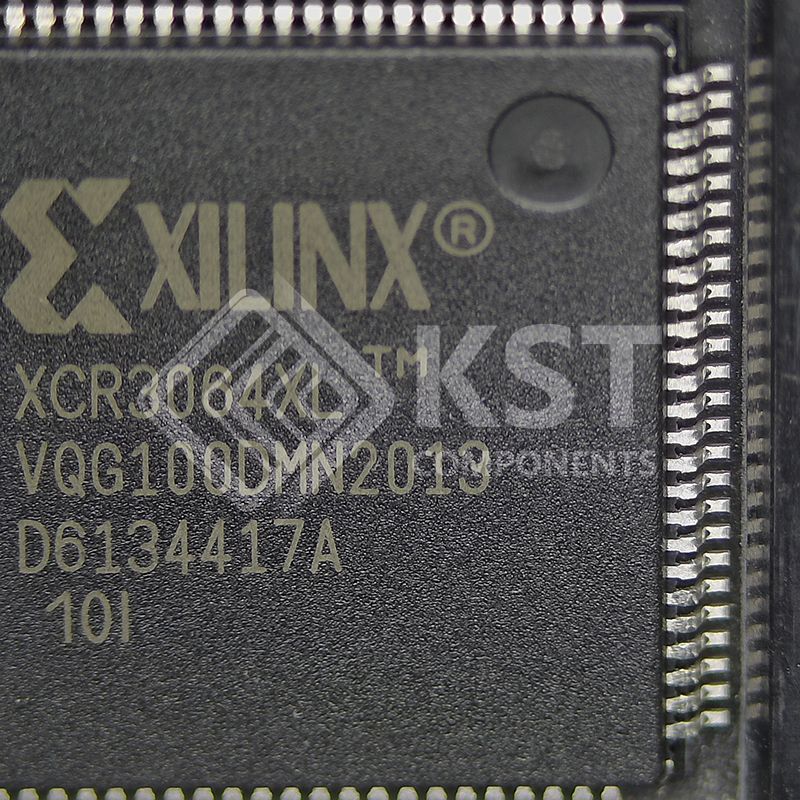

XCR3064XL-10VQG100I

• Low power 3.3V 64 macrocell CPLD
• 5.5 ns pin-to-pin logic delays
• System frequencies up to 192 MHz
• 64 macrocells with 1,500 usable gates
• Available in small footprint packages
- 44-pin VQFP (36 user I/O pins)
- 48-ball CS BGA (40 user I/O pins)
- 56-ball CP BGA (48 user I/O pins)
- 100-pin VQFP (68 user I/O pins)
• Optimized for 3.3V systems
- Ultra-low power operation
- Typical Standby Current of 17 μA at 25°C
- 5V tolerant I/O pins with 3.3V core supply
- Advanced 0.35 micron five layer metal EEPROM
process
- Fast Zero Power CMOS design technology
- 3.3V PCI electrical specification compatible
outputs (no internal clamp diode on any input or
I/O, no minimum clock input capacitance)
• Advanced system features
- In-system programming
- Input registers
- Predictable timing model
- Up to 23 available clocks per function block
- Excellent pin retention during design changes
- Full IEEE Standard 1149.1 boundary-scan (JTAG)
- Four global clocks
- Eight product term control terms per function block
• Fast ISP programming times
• Port Enable pin for dual function of JTAG ISP pins
• 2.7V to 3.6V supply voltage at industrial temperature
range
• Programmable slew rate control per macrocell
• Security bit prevents unauthorized access
• Refer to XPLA3 family data sheet (DS012) for
architecture description
