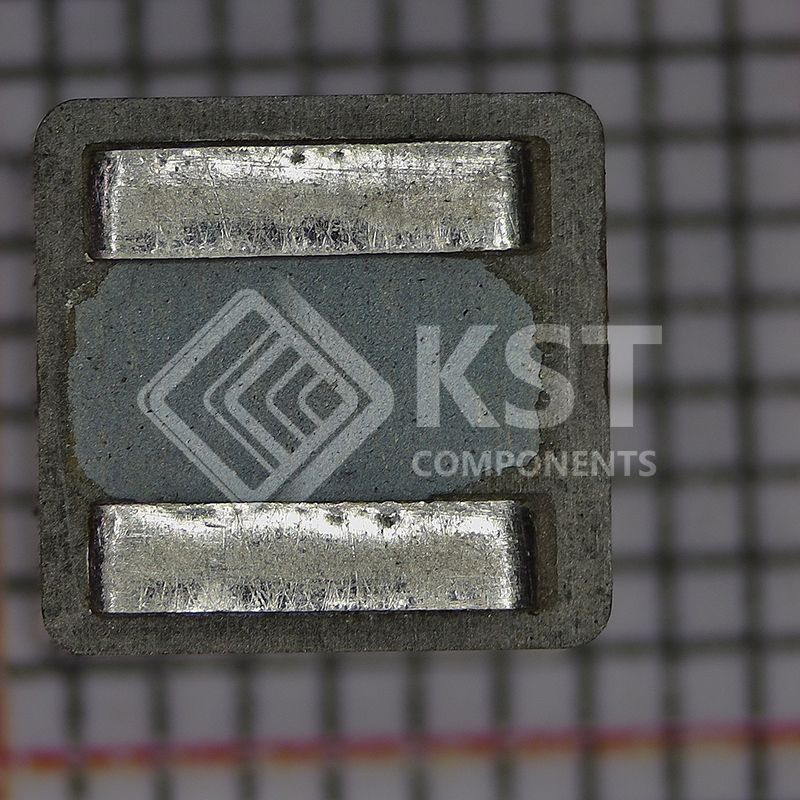

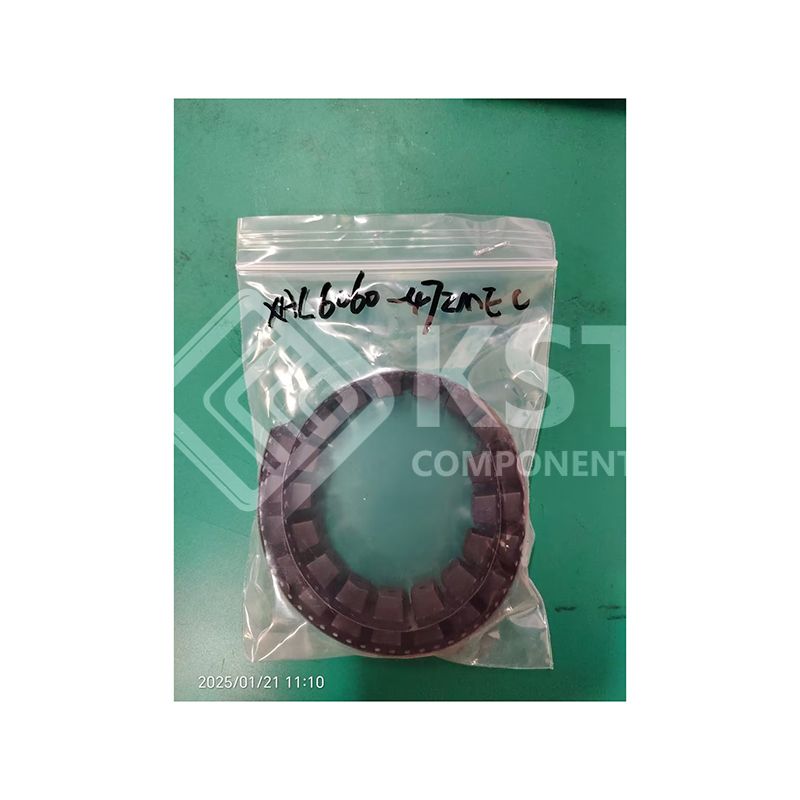

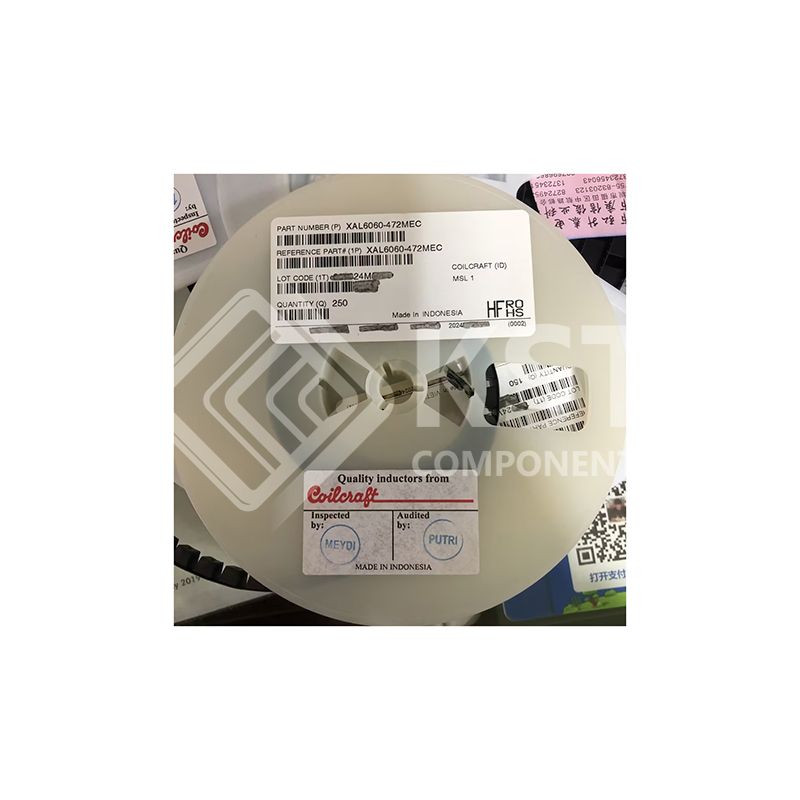

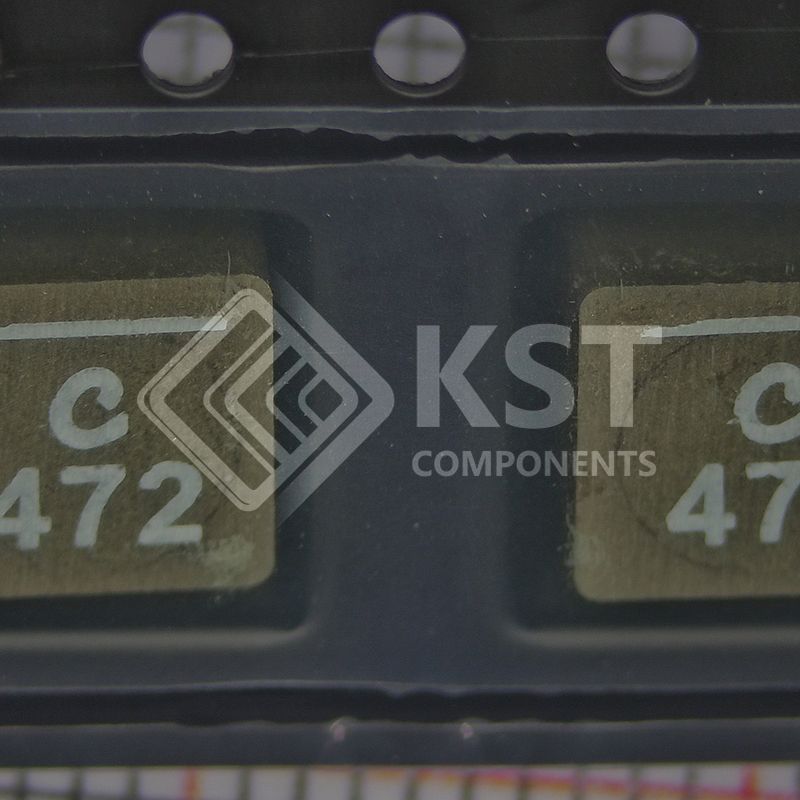

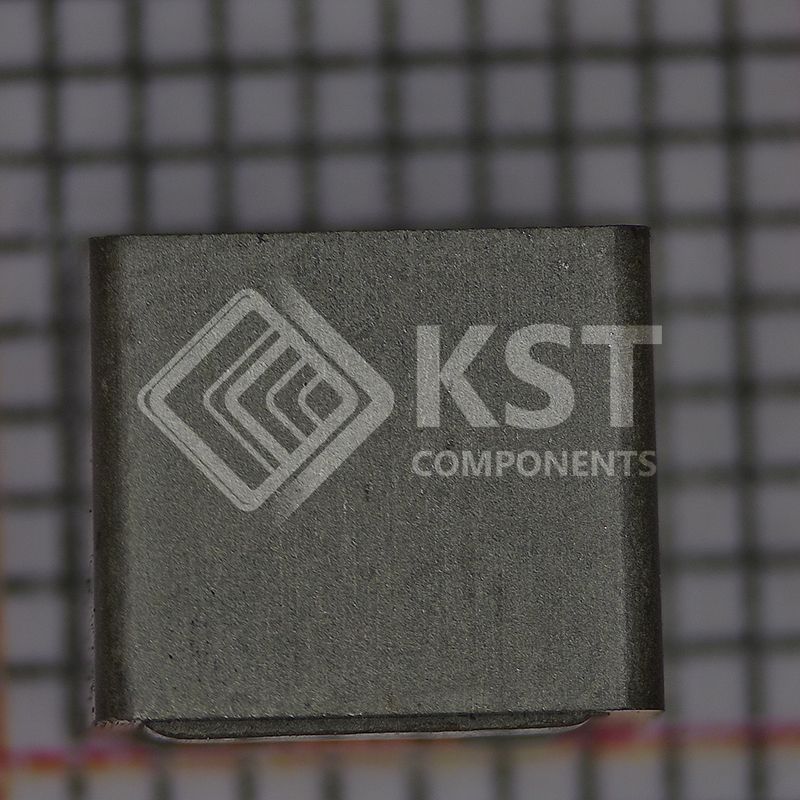

XAL6060-472MEC
Part Number:
XAL6060-472MEC
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Altera
Description:
FIXED IND 4.7UH 11A 14.4MOHM SM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Coilcraft |
|
|
Series |
XAL60XX |
|
|
Packaging |
Tape & Reel (TR)
|
|
|
Part Status |
Active
|
|
|
Type |
Molded
|
|
|
Material - Core |
Metal Composite |
|
|
Inductance |
4.7 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
11 A |
|
|
Current - Saturation (Isat) |
10.5A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
14.4mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
21MHz
|
|
|
Ratings |
AEC-Q200
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Inductance Frequency - Test |
1 MHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.258" L x 0.250" W (6.56mm x 6.36mm)
|
|
|
Height - Seated (Max) |
0.240" (6.10mm)
|
