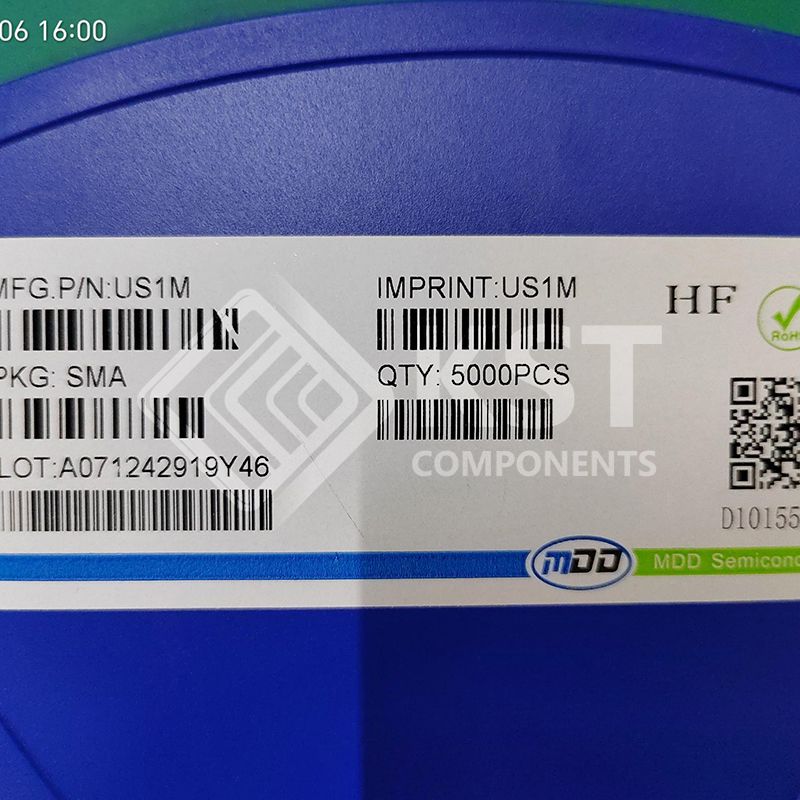

US1M
Part Number:
US1M
Product Classification:
Toggle Switches
Manufacturer:
Bevigor
Description:
DIODE GEN PURP 1KV 1A SMA
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
|
|
|
Mfr |
MDD |
|
|
Series |
SMA |
|
|

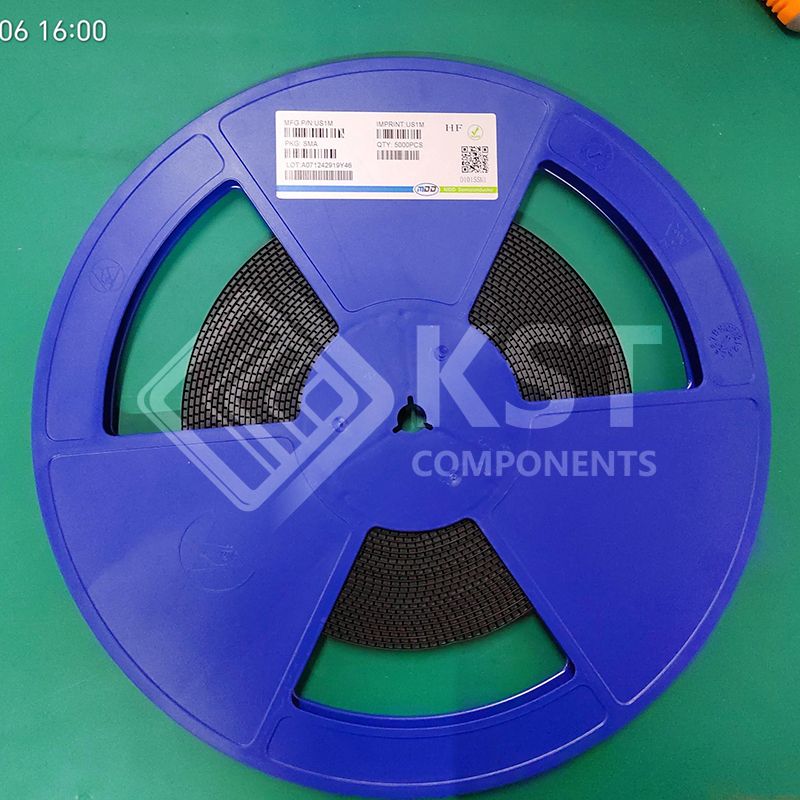

Packaging |
Tape & Reel (TR)
|
|
|
Part Status |
Active
|
|
|
Technology |
Standard |
|
|
Voltage - DC Reverse (Vr) (Max) |
1000 V
|
|
|
Current - Average Rectified (Io) |
1A
|
|
|
Voltage - Forward (Vf) (Max) @ If |
1.7 V @ 1 A
|
|
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io)
|
|
|
Reverse Recovery Time (trr) |
75 ns
|
|
|
Current - Reverse Leakage @ Vr |
5 µA @ 1000 V
|
|
|
Capacitance @ Vr, F |
15pF @ 4V, 1MHz
|
|
|
Mounting Type |
Surface Mount |
|
|

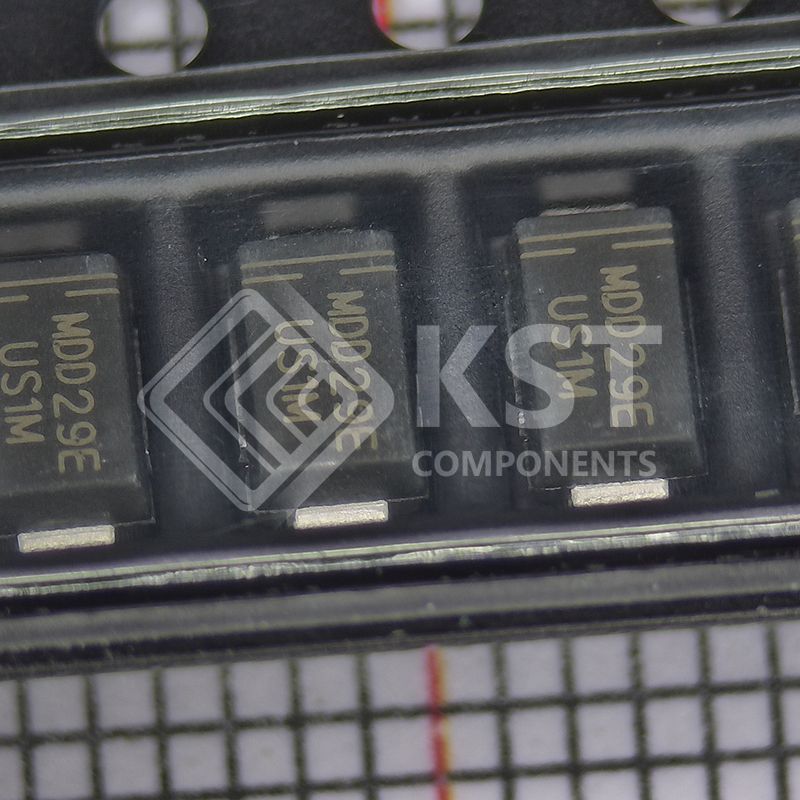

Package / Case |
DO-214AC, SMA |
|
|
Supplier Device Package |
SMA
|
|
|
Operating Temperature - Junction |
-55°C ~ 150°C
|
