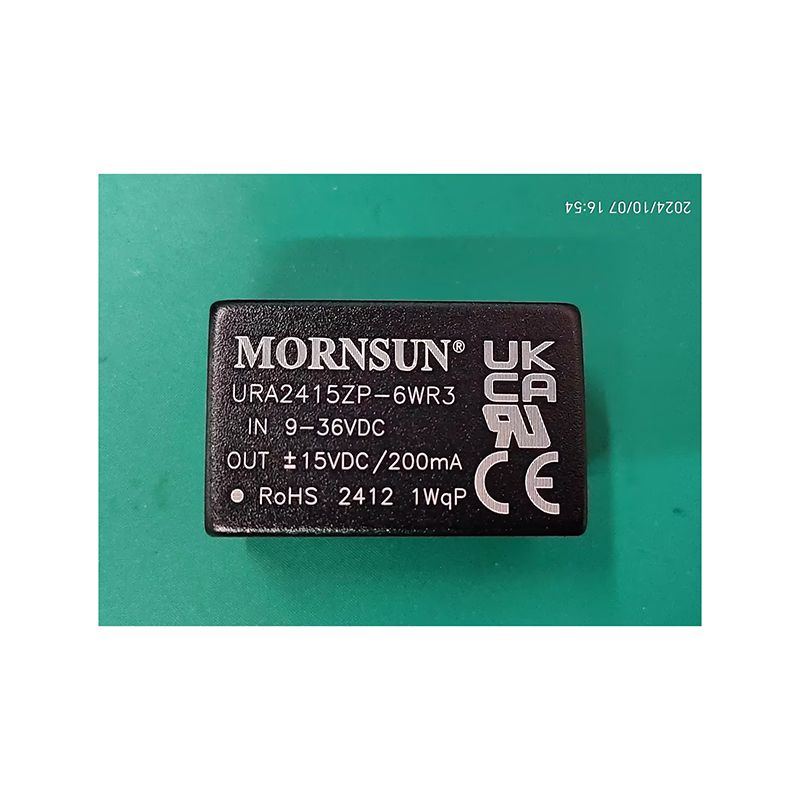

URA2415ZP-6WR3
Part Number:
URA2415ZP-6WR3
Product Classification:
Programmable Display Switches
Manufacturer:
Axiomatic Technologies
Description:
DC DC CONVERTER +/-15V 6W
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Power Supplies - Board Mount
DC DC Converters
|
|
|
Manufacturer |
Mornsun America, LLC
|
|
|
Series |
URA2415ZP-6WR3 (6W) |
|
|
Packaging |

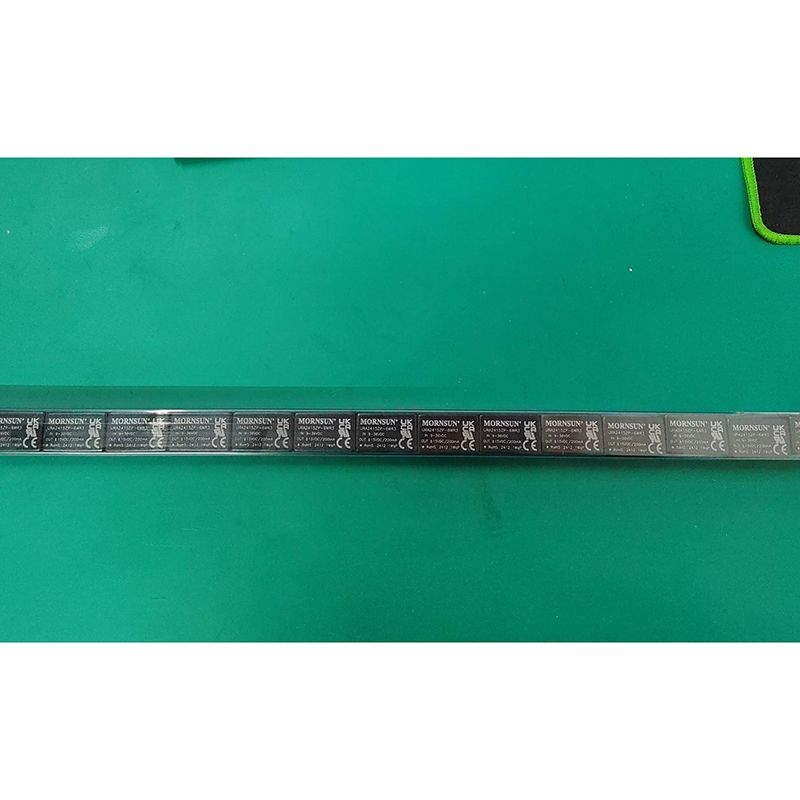

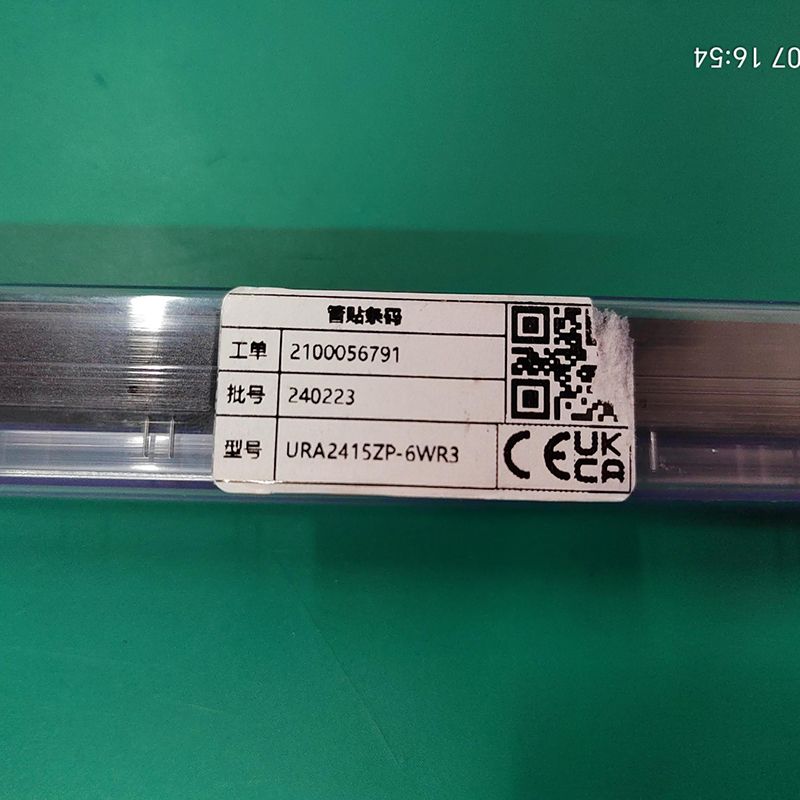

Tube
|
|
|
Part Status |
Not For New Designs
|
|
|
Type |
Isolated Module
|
|
|
Number of Outputs |
2
|
|
|
Voltage - Input (Min) |
9V
|
|
|
Voltage - Input (Max) |
36V
|
|
|
Voltage - Output 1 |
15V |
|
|
Voltage - Output 2 |
-15V
|
|
|
Voltage - Output 3 |
-
|
|
|
Voltage - Output 4 |
-
|
|
|
Current - Output (Max) |
200mA, 200mA
|
|
|
Power (Watts) |
6 W
|
|
|
Voltage - Isolation |
1.5 kV
|
|
|
Applications |
ITE (Commercial)
|
|
|
Features |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C (With Derating)
|
|
|
Efficiency |
88%
|
|
|
Mounting Type |
Through Hole
|
|
|
Package / Case |
24-DIP Module, 8 Leads
|
|
|
Size / Dimension |
1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
|
|
|
Supplier Device Package |
-
|
|
|
Control Features |
-
|
|
|
Approval Agency |
CB, CE, cURus, UL
|
|
|
Standard Number |
60950-1; 62368-1
|
|
|
Base Product Number |
-
|
