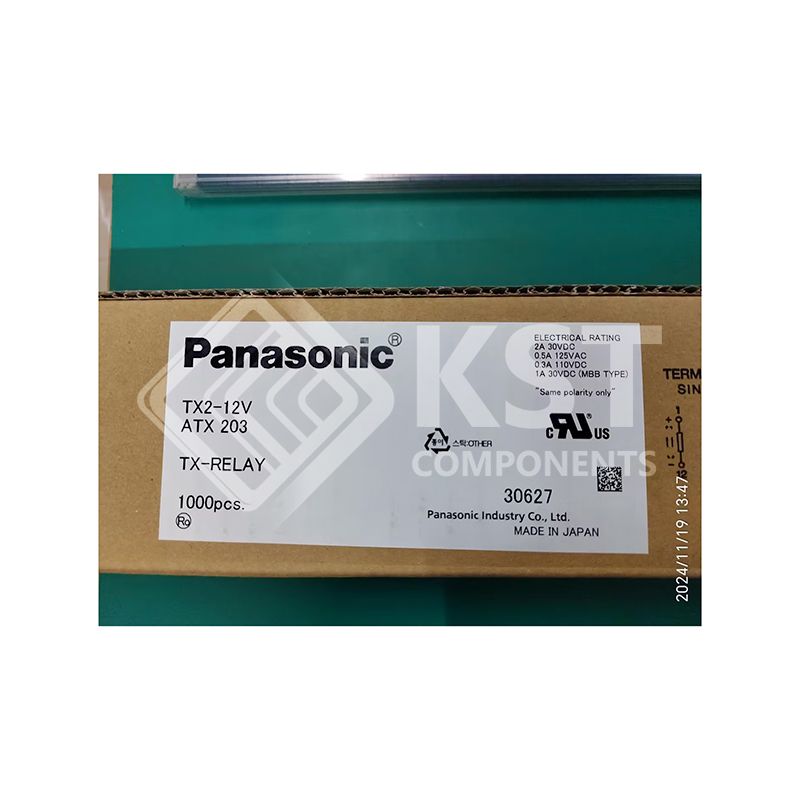

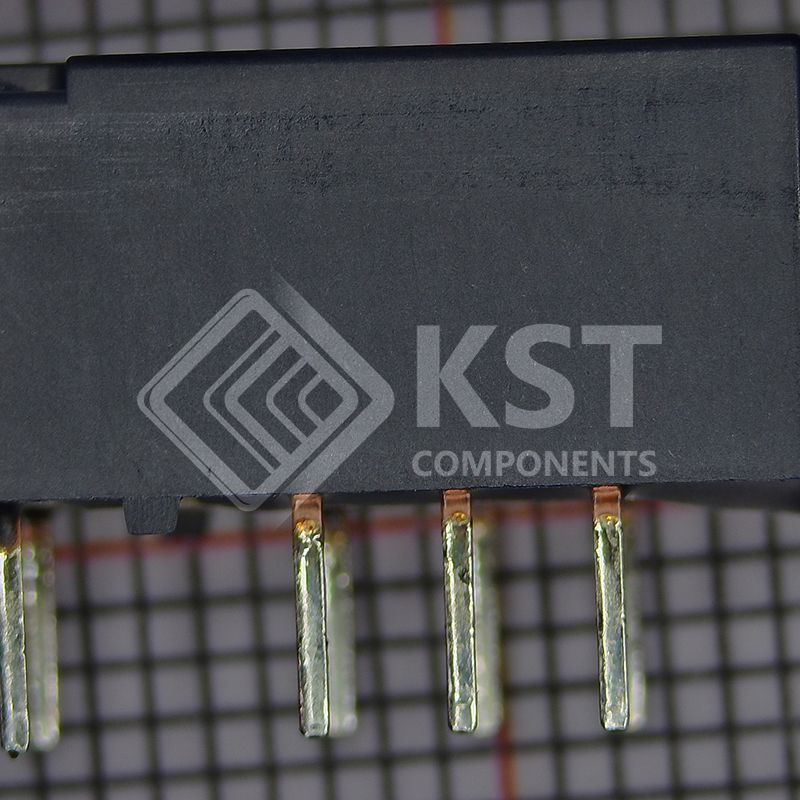

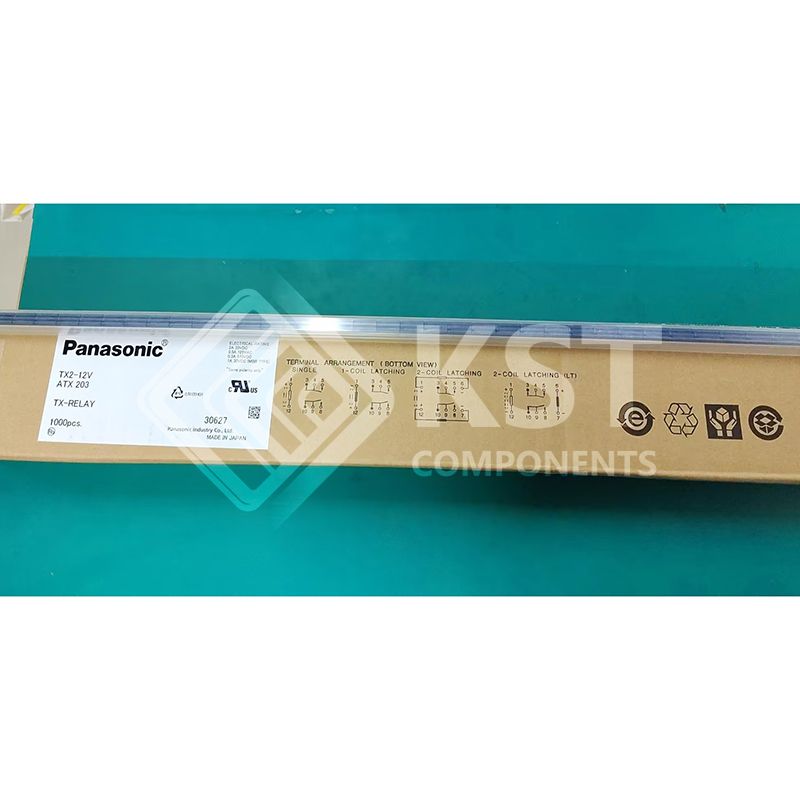

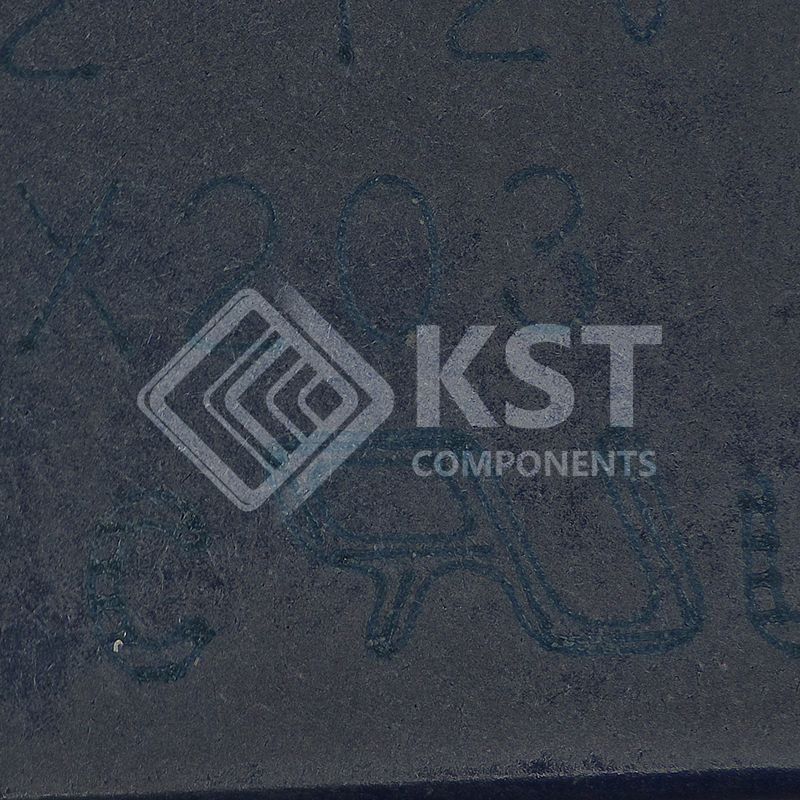

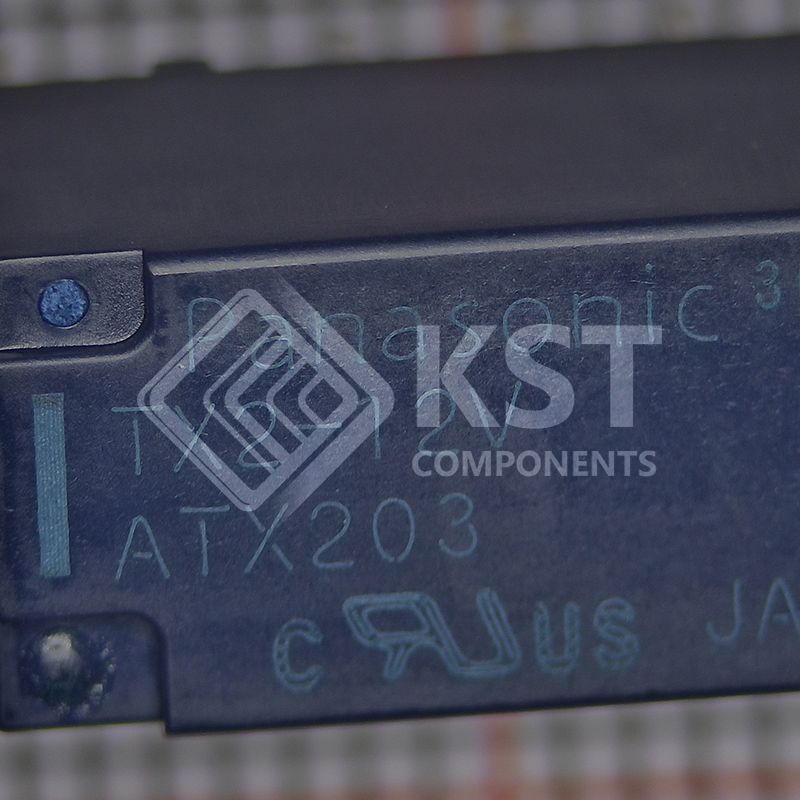

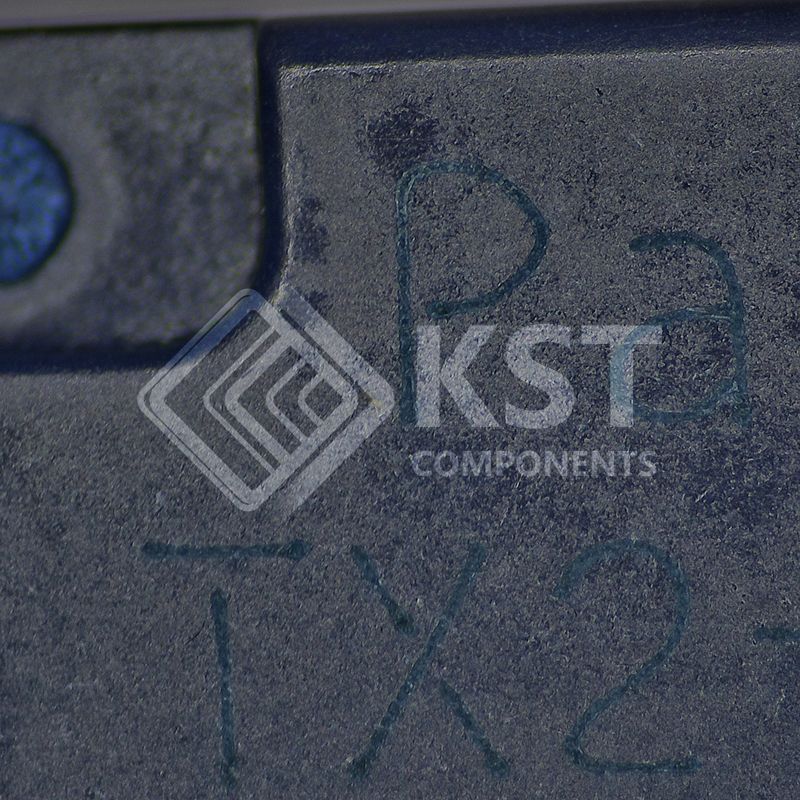

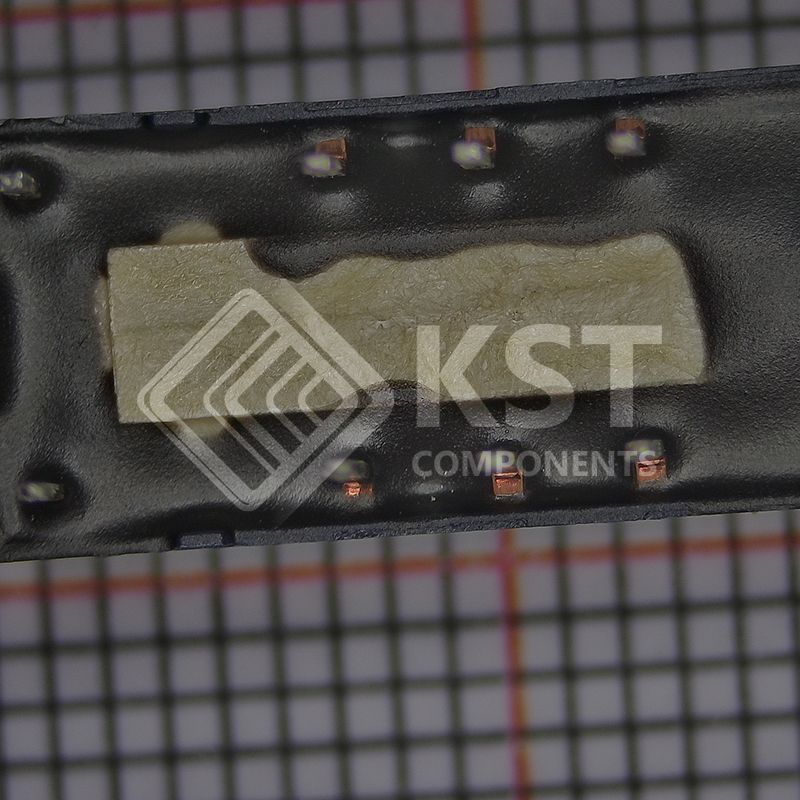

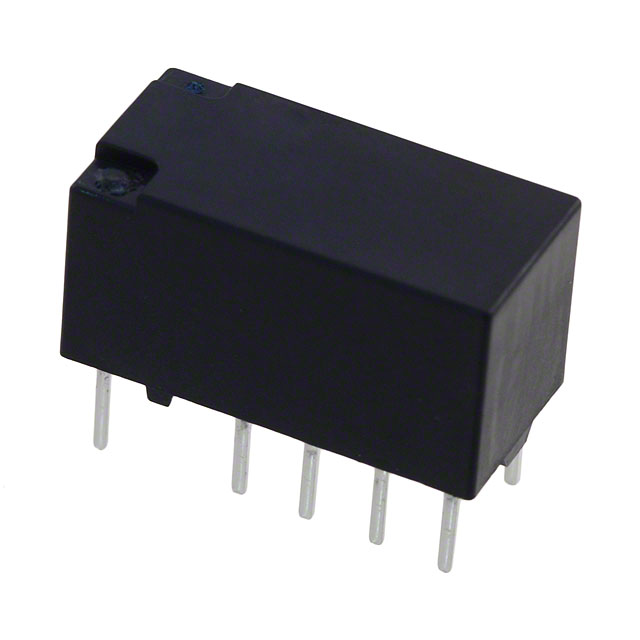

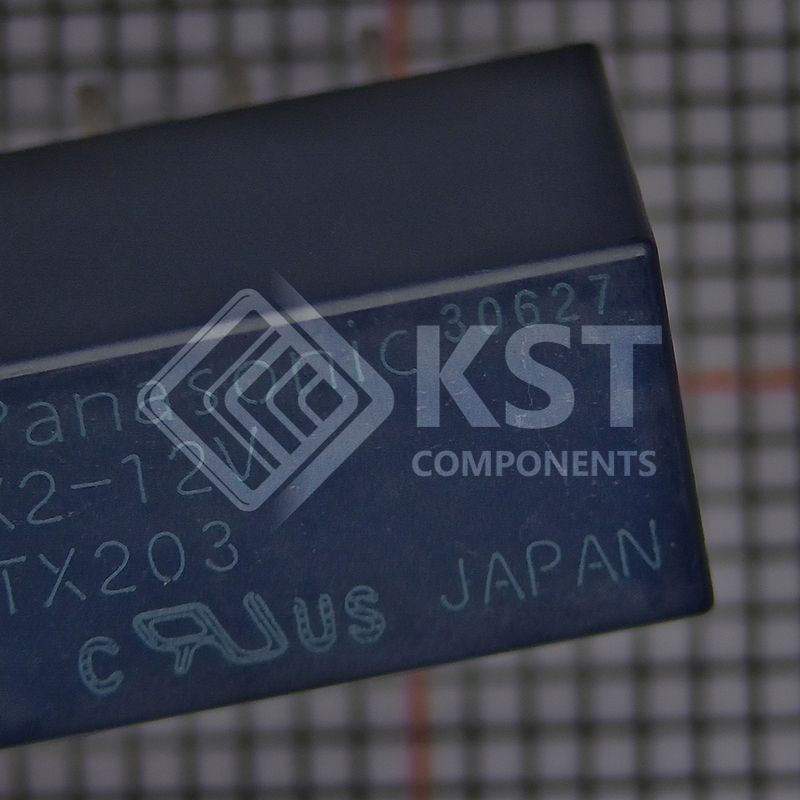

TX2-12V
Part Number:
TX2-12V
Product Classification:
Electrical, Specialty Fuses
Manufacturer:
Altum RF
Description:
RELAY TELECOM DPDT 2A 12V
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Relays
Signal Relays, Up to 2 Amps
|
|
|
Manufacturer |
Panasonic Electric Works
|
|
|
Series |
TX |
|
|

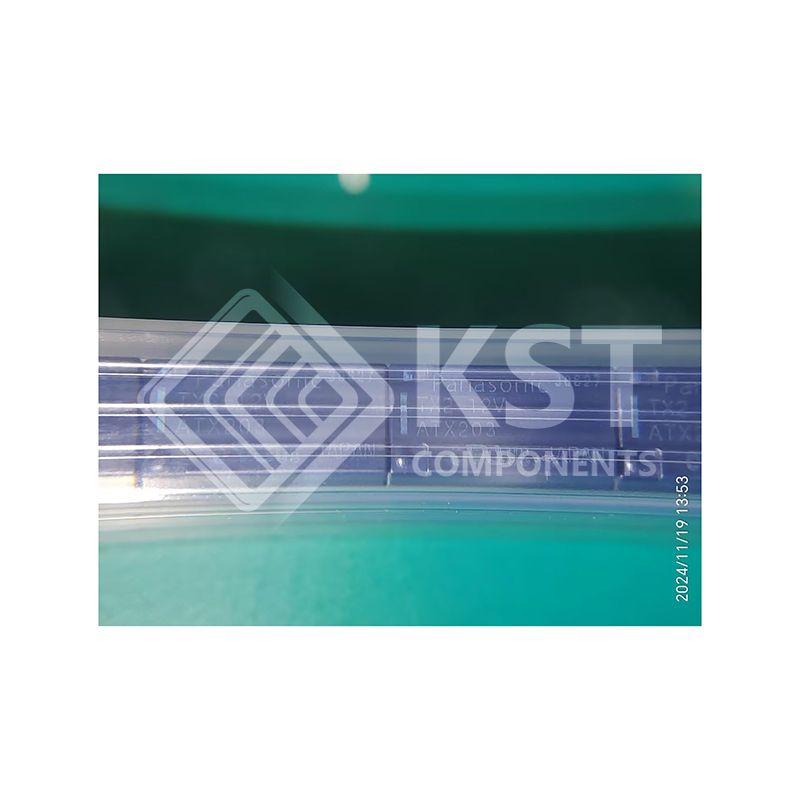

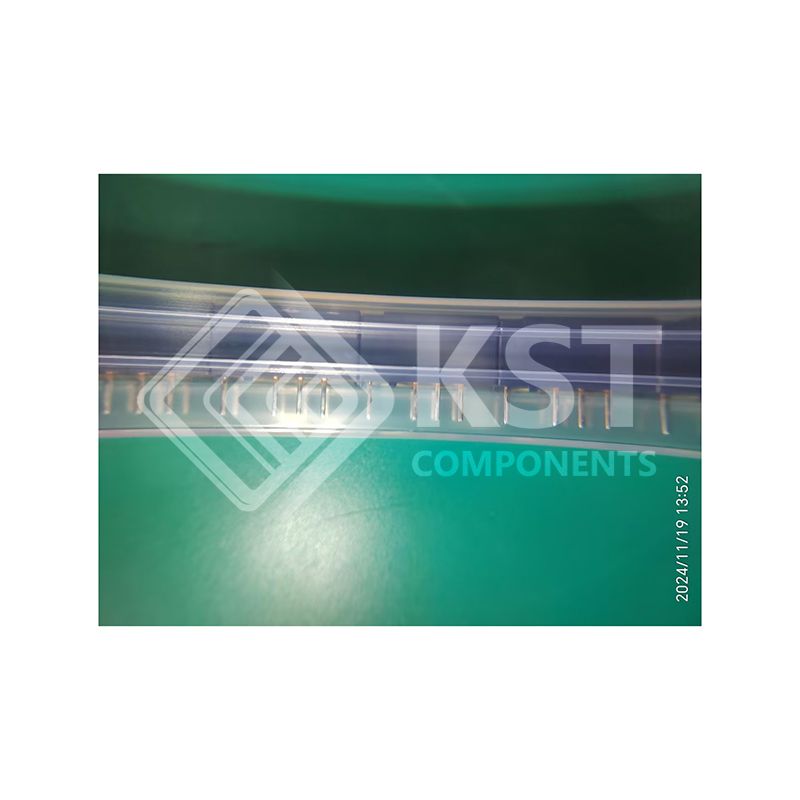

Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Mounting Type |
Through Hole
|
|
|
Coil Voltage |
12VDC
|
|
|
Contact Form |
DPDT (2 Form C)
|
|
|
Contact Rating (Current) |
2 A
|
|
|
Switching Voltage |
220VDC - Max
|
|
|
Load - Max Switching |
440VA
|
|
|
Coil Current |
11.7 mA
|
|
|
Coil Type |
Non Latching
|
|
|
Features |
-
|
|
|
Termination Style |
PC Pin
|
|
|
Seal Rating |
Sealed - Fully
|
|
|
Coil Insulation |
-
|
|
|
Must Operate Voltage |
9 VDC
|
|
|
Must Release Voltage |
1.2 VDC
|
|
|
Operate Time |
4 ms
|
|
|
Release Time |
4 ms
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Contact Material |
Silver (Ag), Gold (Au)
|
|
|
Approval Agency |
BSI, cURus
|
|
|
Relay Type |
Telecom
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Coil Resistance |
1.03 kOhms
|
|
|
Base Product Number |
TX2-12 |
