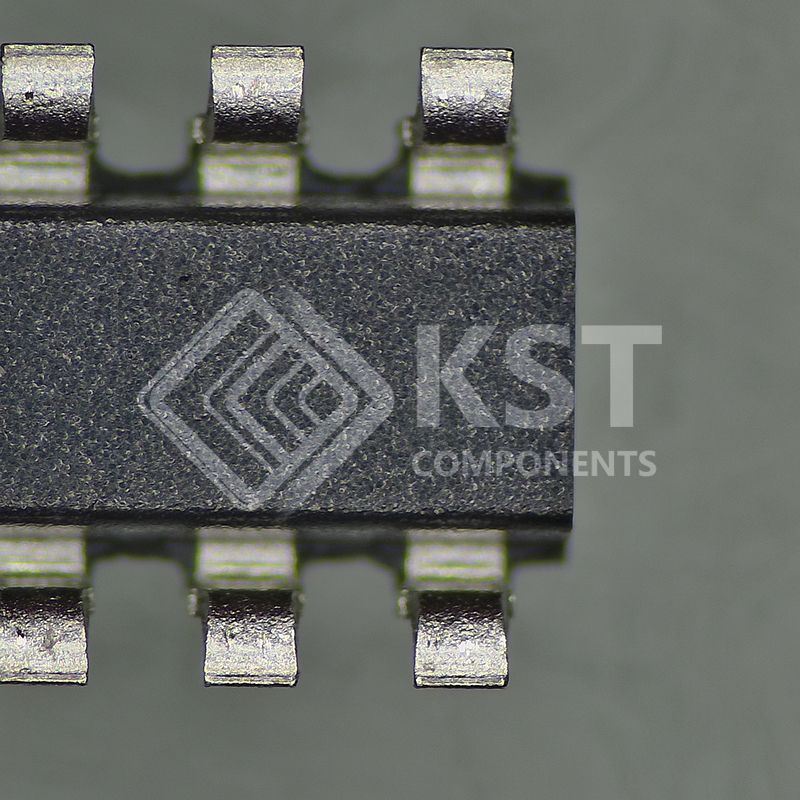

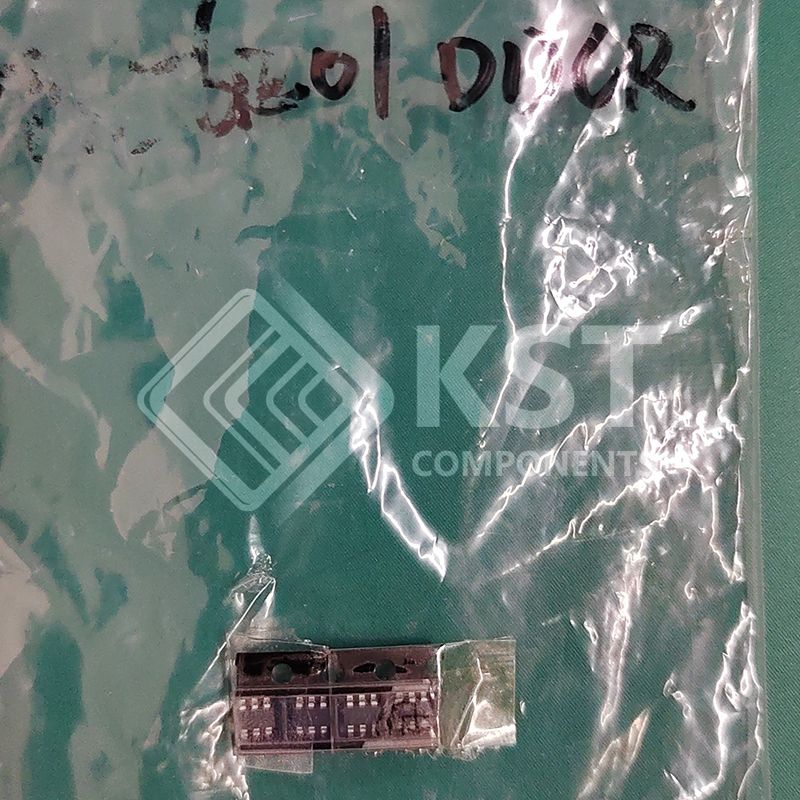

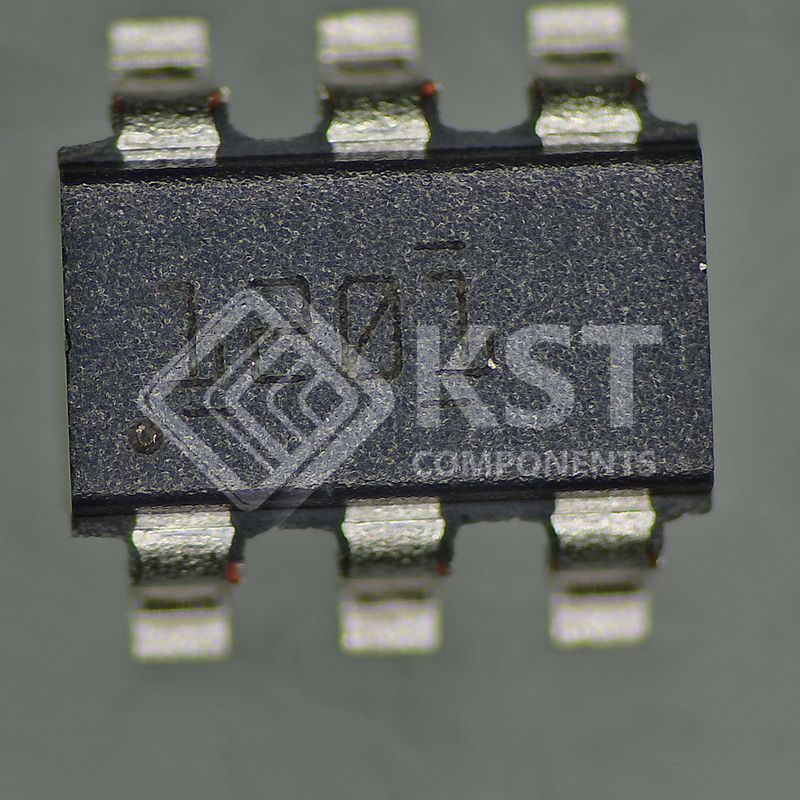

TPS561201DDCR

• TPS561201 and TPS561208 1-A converter
integrated 140-mΩ and 84-mΩ FETs
• D-CAP2™ mode control with fast transient
response
• Input voltage range: 4.5 V to 17 V
• Output voltage range: 0.76 V to 7 V
• Pulse-skip mode (TPS561201) or continuous
current mode (TPS561208)
• 580-kHz switching frequency
• Low shutdown current less than 10 µA
• 2% Feedback voltage accuracy (25°C)
• Start-up from pre-biased output voltage
• Cycle-by-cycle overcurrent limit
• Hiccup-mode overcurrent protection
• Non-latch UVP and TSD protections
• Fixed soft start: 1.0 ms
• Create a custom design using the TPS56120x with
the WEBENCH® Power Designer
