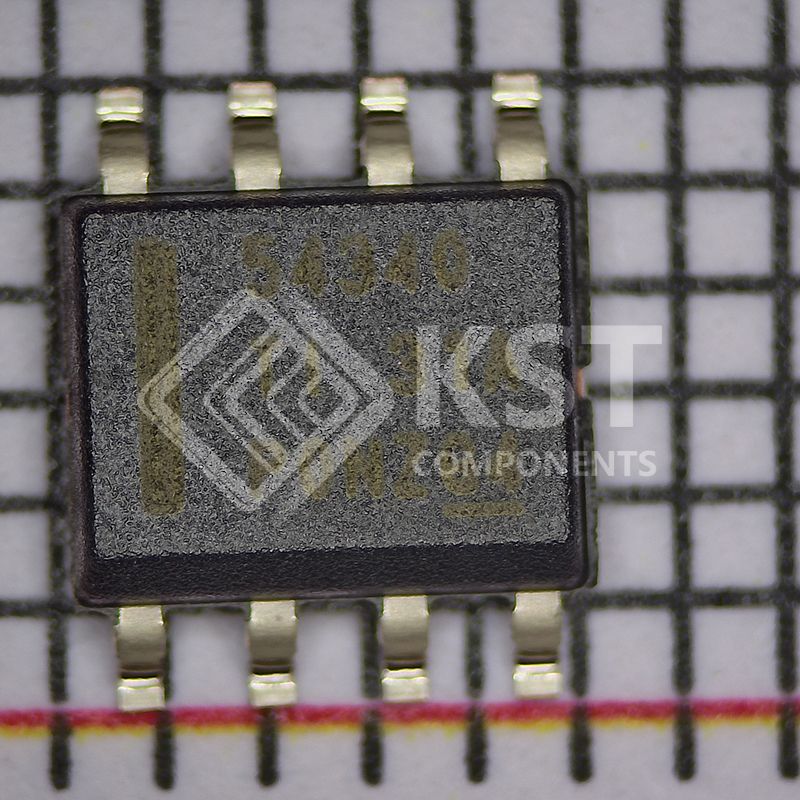

TPS54340DDAR

• 4.5 V to 42 V (45 V Abs Max) Input Range
• 3.5 A Continuous Current, 4.5 A Minimum Peak
Inductor Current Limit
• Current Mode Control DC-DC Converter
• 92-mΩ High-Side MOSFET
• High Efficiency at Light Loads with Pulse Skipping
Eco-mode™
• Low Dropout at Light Loads with Integrated BOOT
Recharge FET
• 146 μA Operating Quiescent Current
• 1 μA Shutdown Current
• 100 kHz to 2.5 MHz Fixed Switching Frequency
• Synchronizes to External Clock
• Adjustable UVLO Voltage and Hysteresis
• Internal Soft-Start
• Accurate Cycle-by-Cycle Current Limit
• Thermal, Overvoltage, and Frequency Foldback
Protection
• 0.8 V 1% Internal Voltage Reference

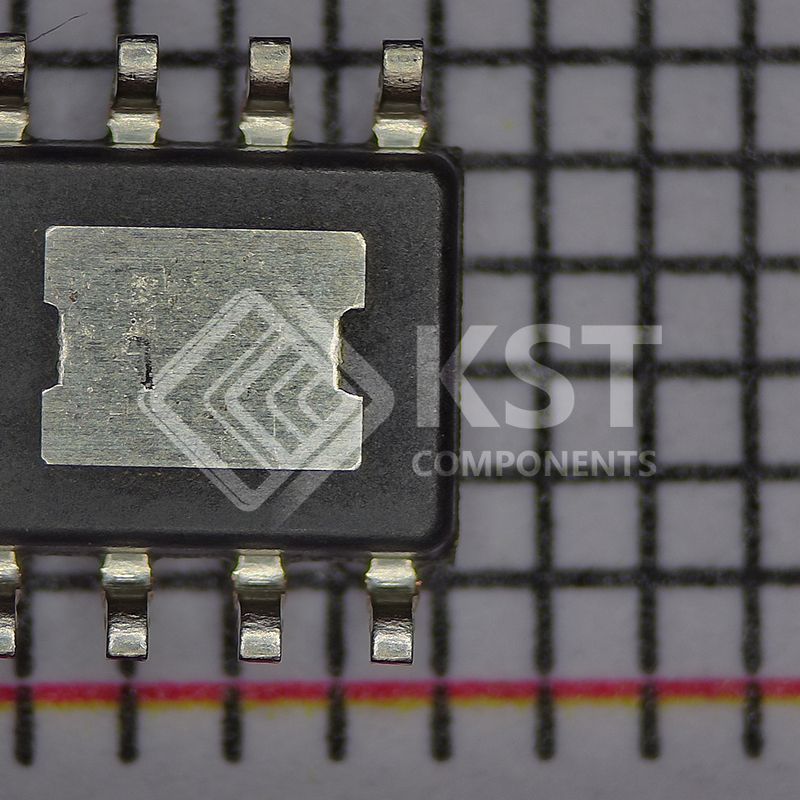

• 8-Terminal HSOP with PowerPAD™ Package
• –40°C to 150°C TJ Operating Range
• Create a Custom Design with WEBENCH Tools
