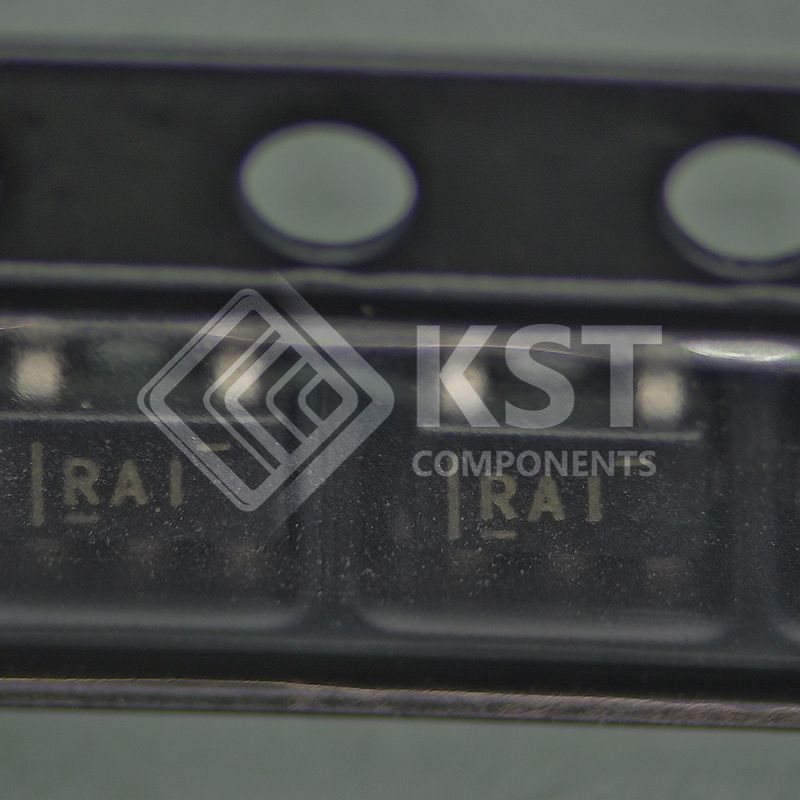

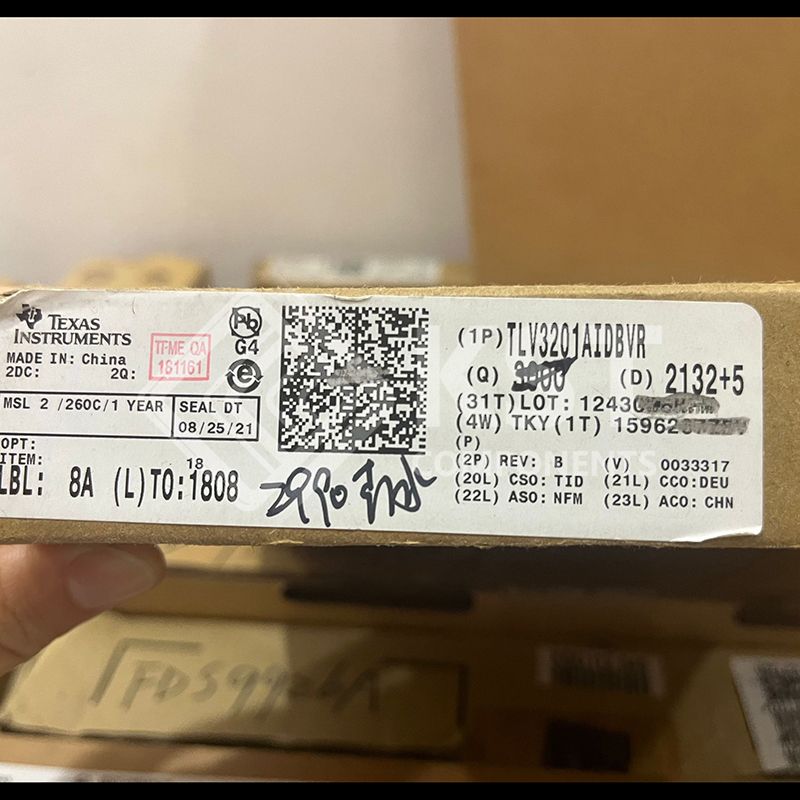

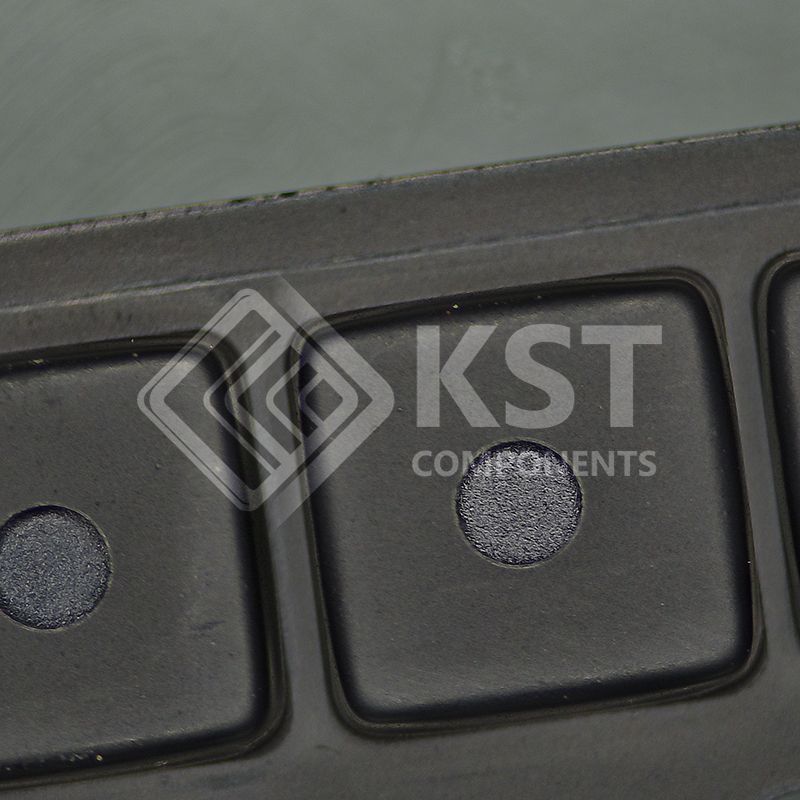

TLV3201AIDBVR
Part Number:
TLV3201AIDBVR
Product Classification:
Adhesives, Epoxies, Greases, Pastes
Manufacturer:
3PEAK
Description:
IC COMPARATOR 1 GEN PUR SOT23-5
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Linear
Comparators
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
General Purpose
|
|
|
Number of Elements |
1
|
|
|
Output Type |
Push-Pull
|
|
|
Voltage - Supply, Single/Dual (±) |
2.7V ~ 5.5V
|
|
|
Voltage - Input Offset (Max) |
1mV @ 5V
|
|
|
Current - Input Bias (Max) |
0.005µA @ 5V
|
|
|
Current - Output (Typ) |
21mA
|
|
|
Current - Quiescent (Max) |
40µA
|
|
|
CMRR, PSRR (Typ) |
70dB CMRR, 85dB PSRR
|
|
|
Propagation Delay (Max) |
50ns
|
|
|
Hysteresis |
1.2mV
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Package / Case |
SC-74A, SOT-753
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
SOT-23-5
|
|
|
Base Product Number |
TLV3201 |
