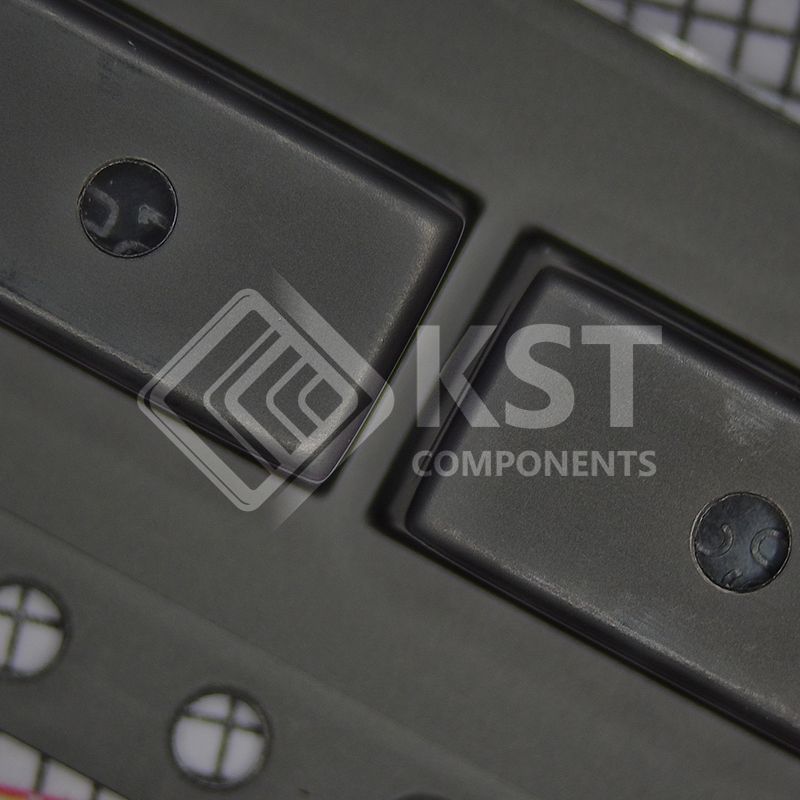

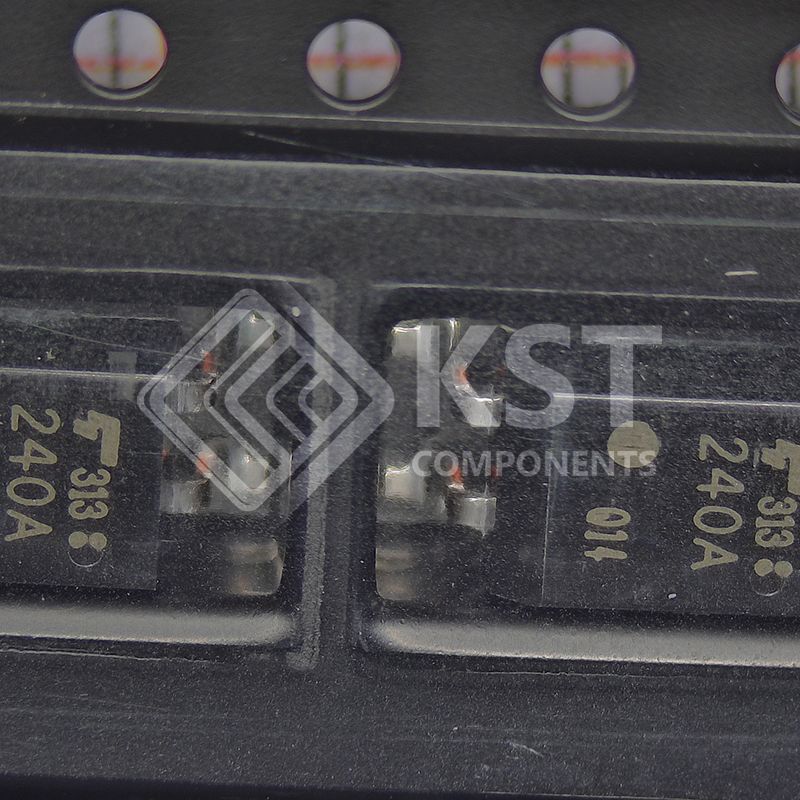

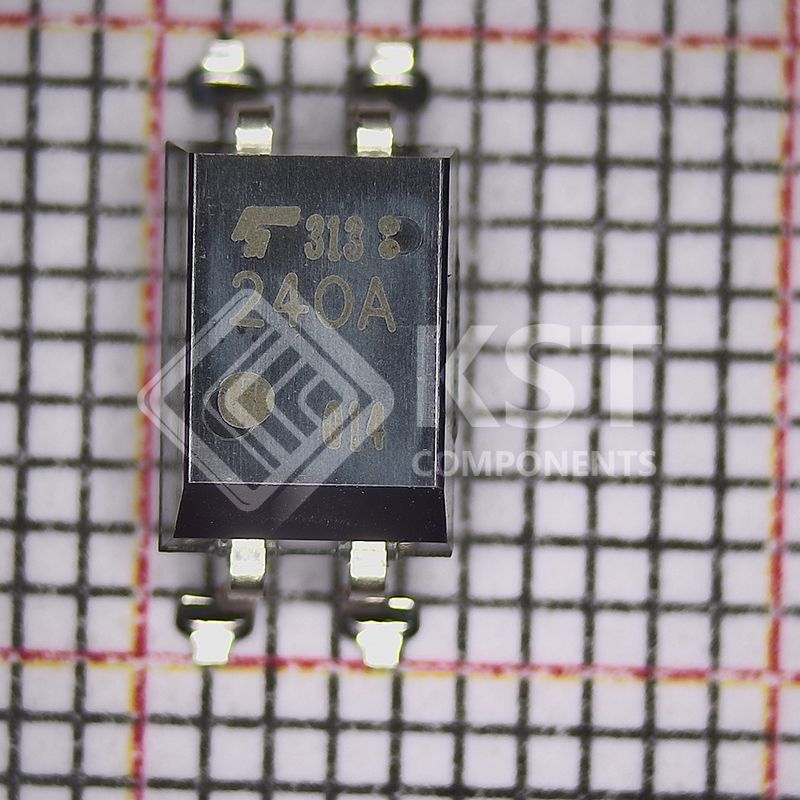

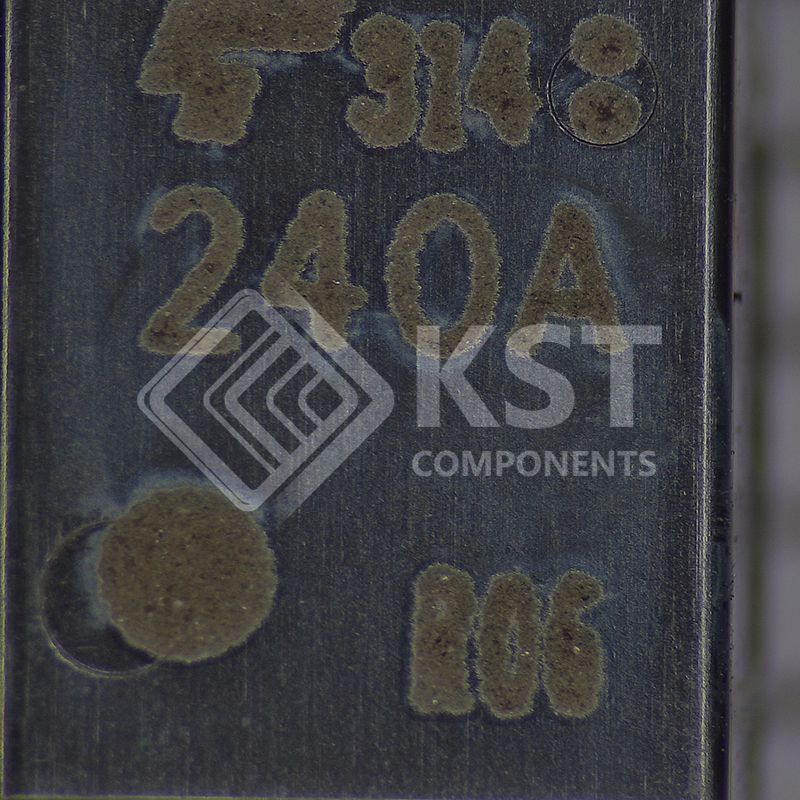

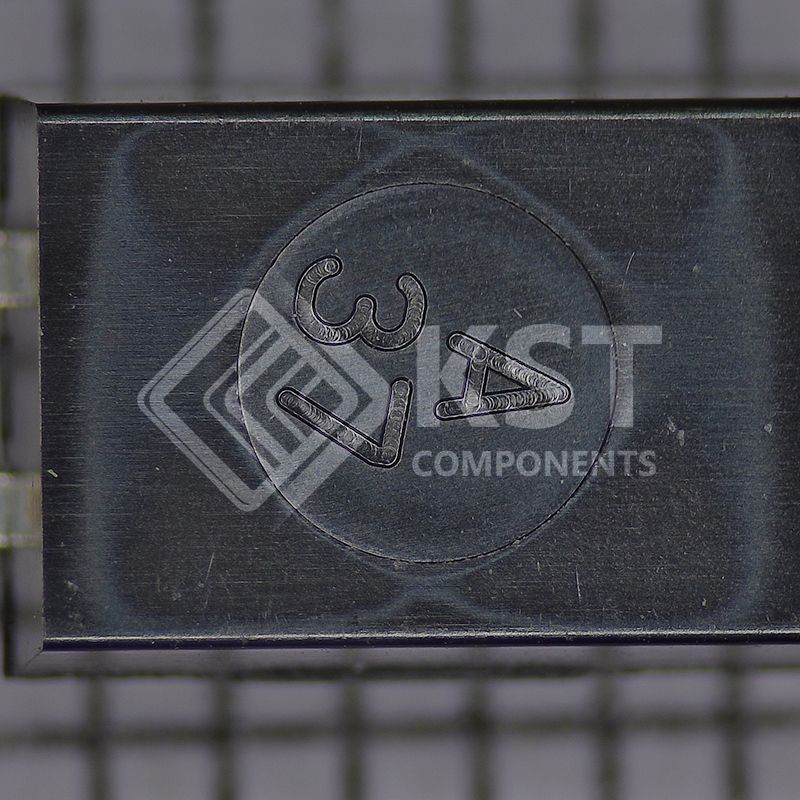

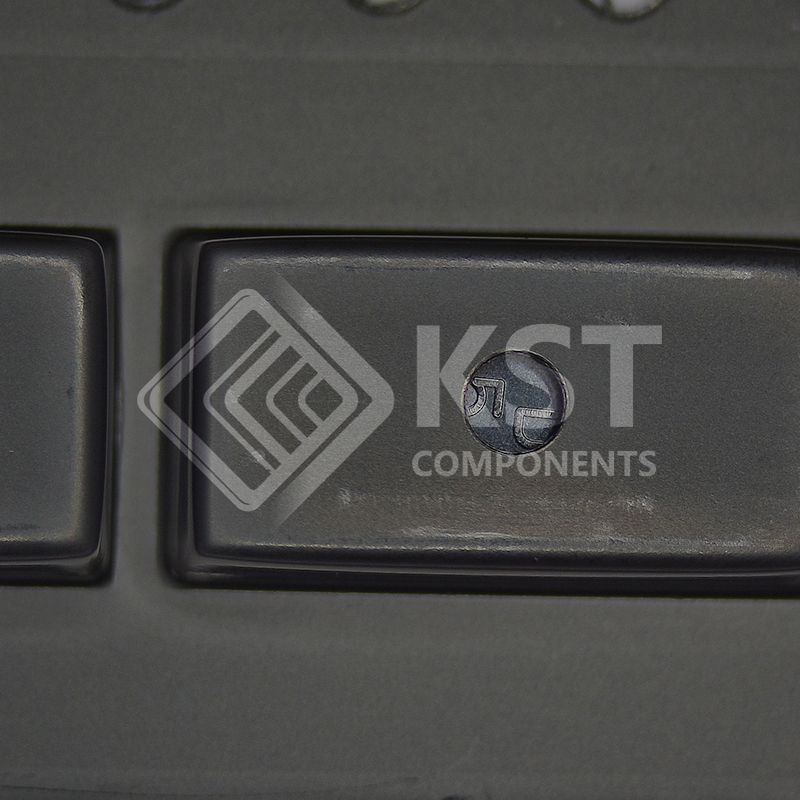

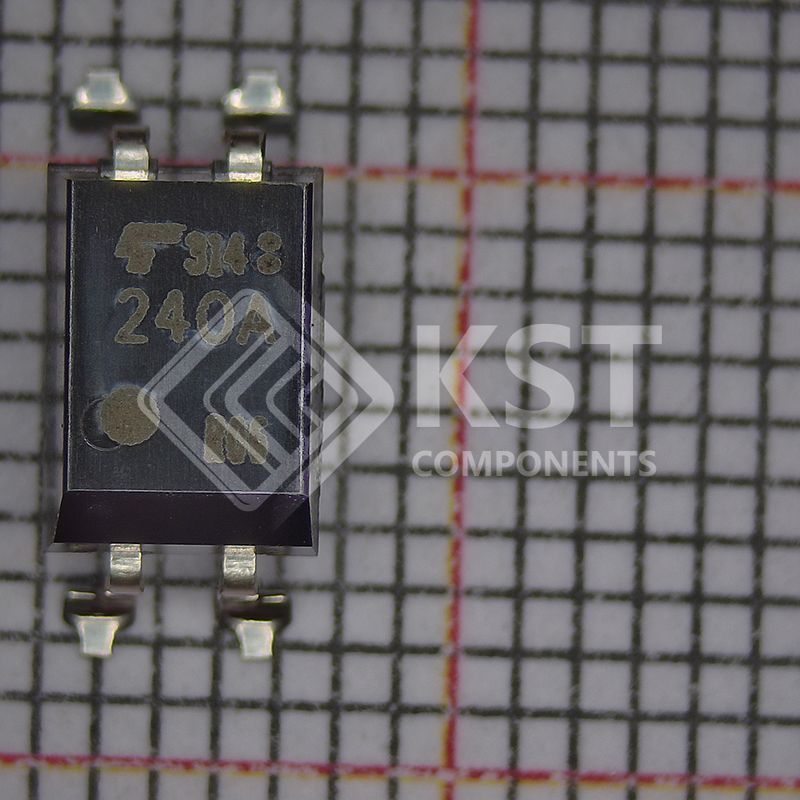

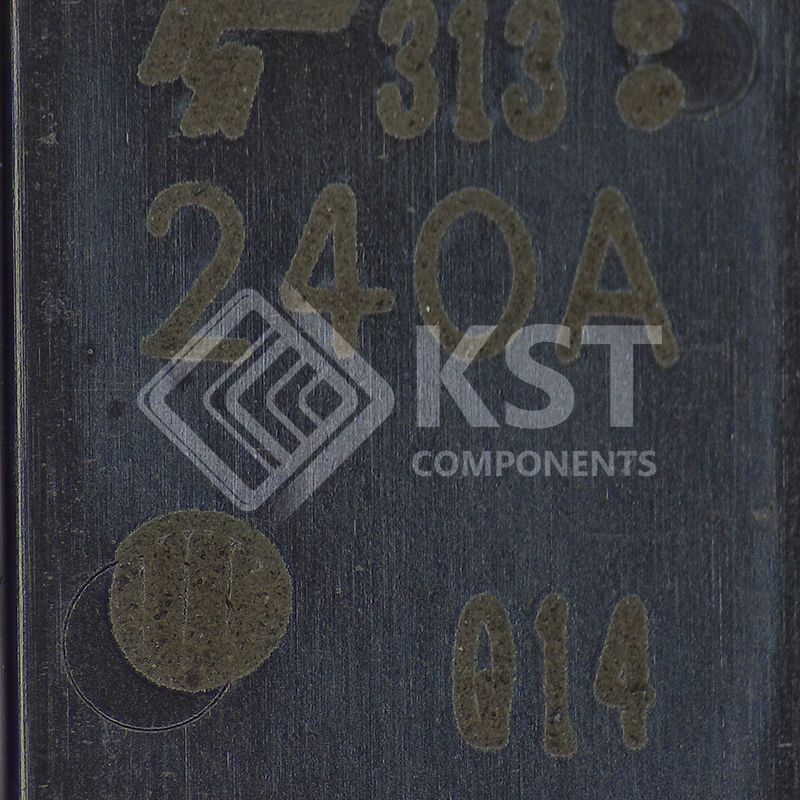

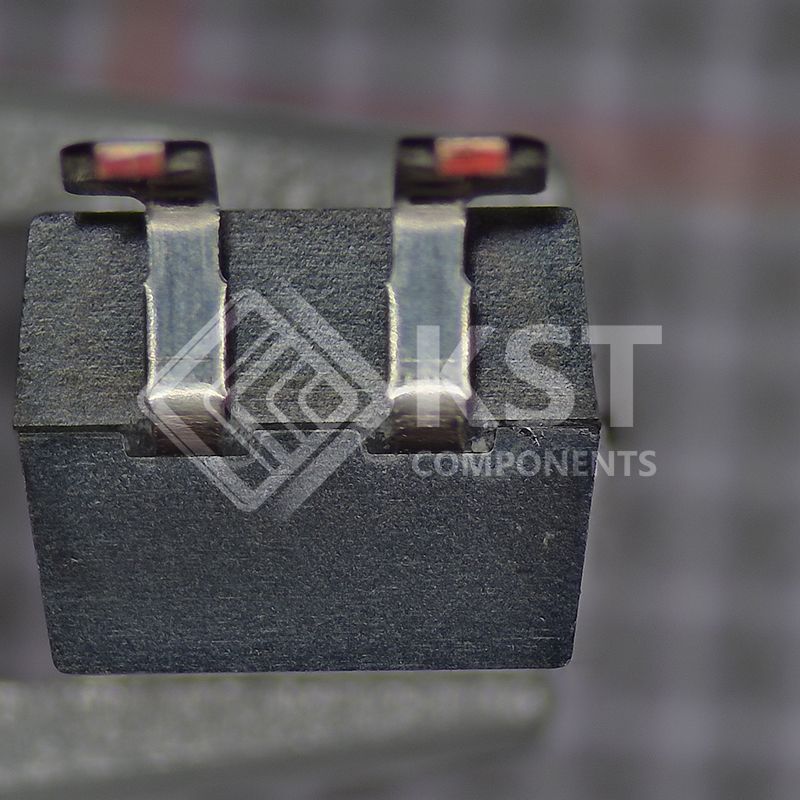

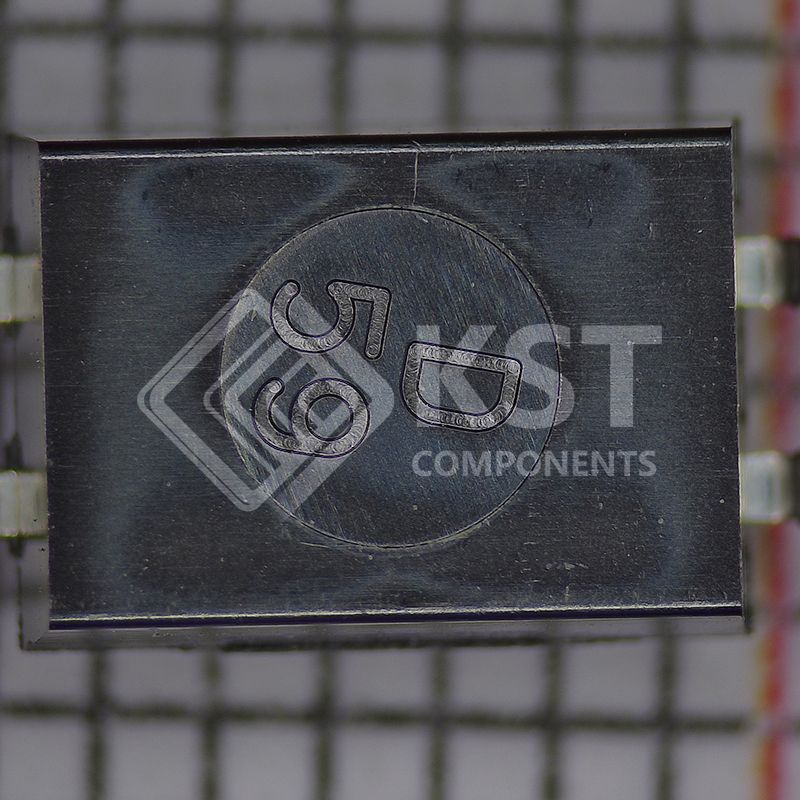

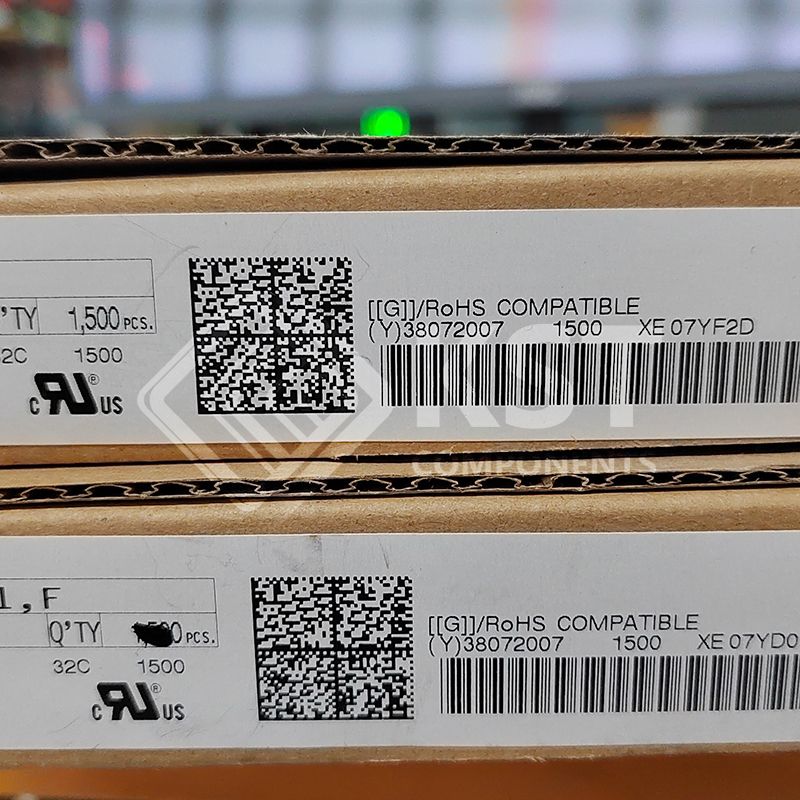

TLP240A(TP1,F
Part Number:
TLP240A(TP1,F
Product Classification:
Selector Switches
Manufacturer:
Amphenol Alden
Description:
SSR RELAY SPST-NO 500MA 0-60V
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Relays
Solid State Relays (SSR)
|
|
|
Mfr |
Toshiba Semiconductor and Storage |
|
|
Series |
TLP240A |
|
|
Packaging |

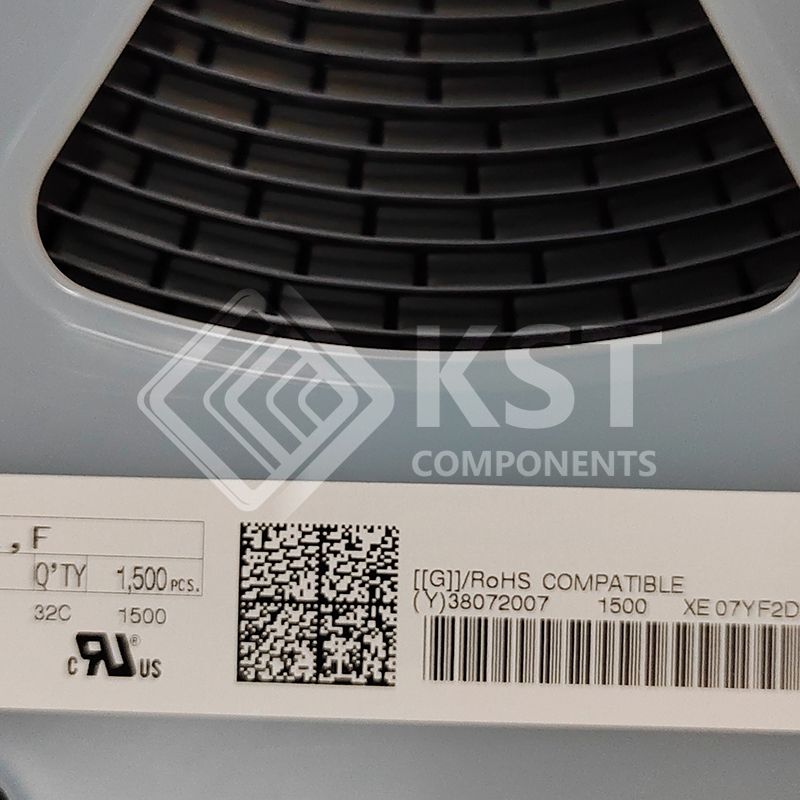

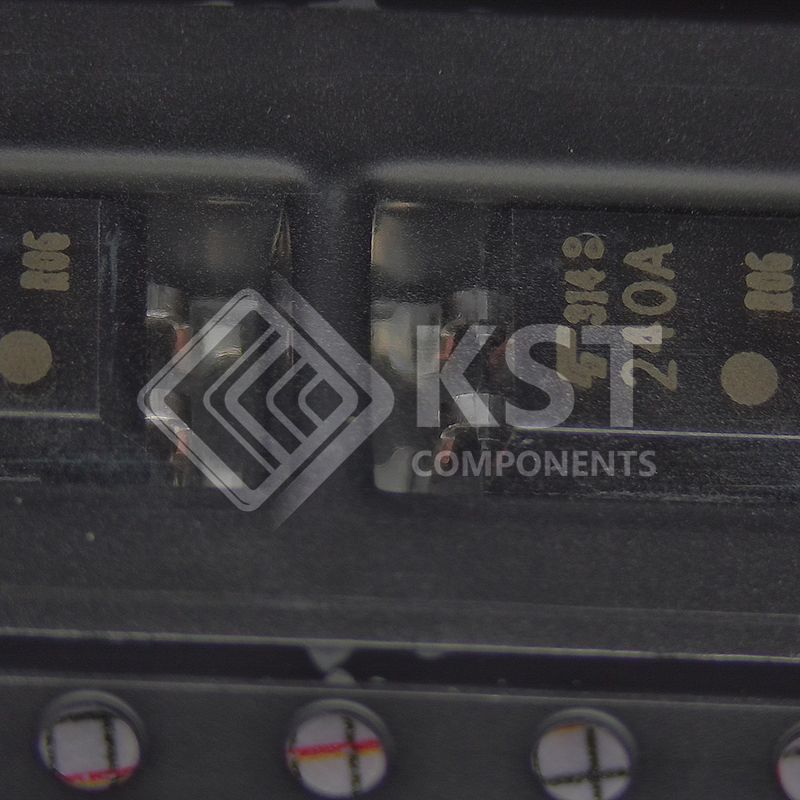

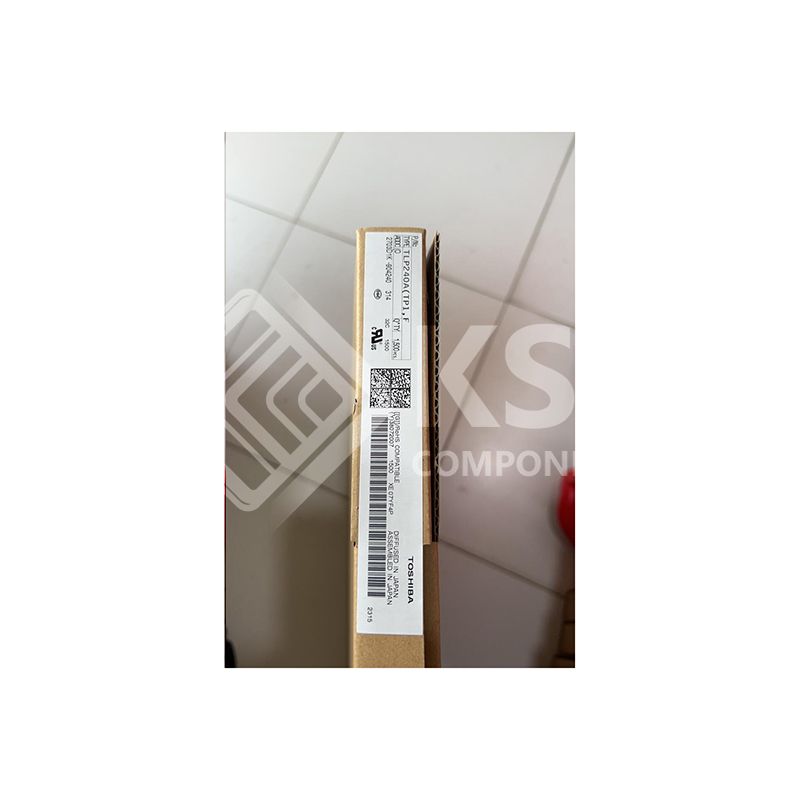

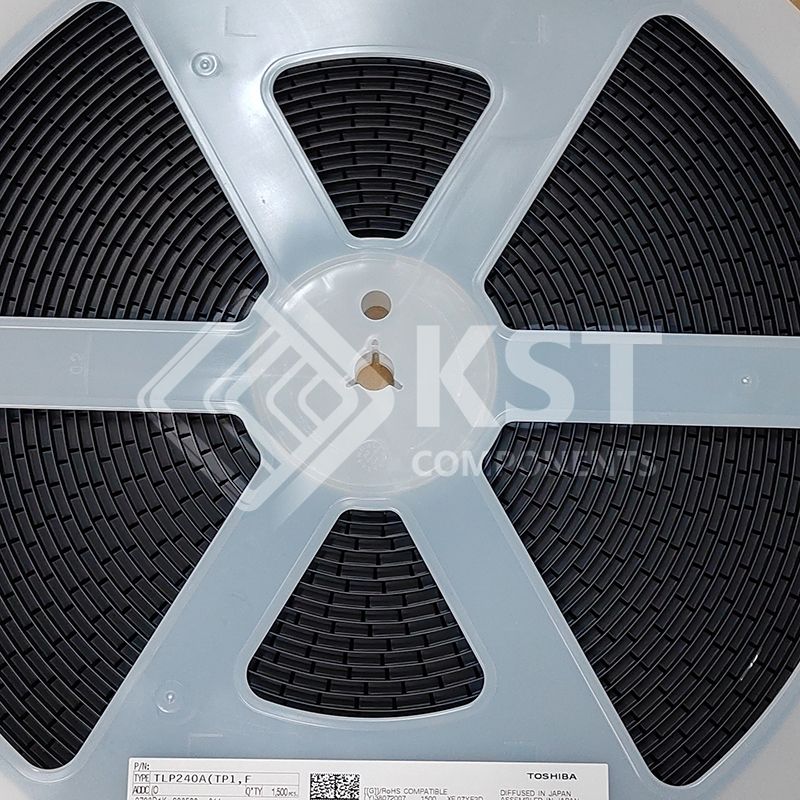

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Mounting Type |
Surface Mount
|
|
|
Circuit |
SPST-NO (1 Form A) |
|
|
Output Type |
AC, DC
|
|
|
Voltage - Input |
1.27VDC
|
|
|
Voltage - Load |
0 V ~ 60 V
|
|
|
Load Current |
500 mA
|
|
|
On-State Resistance (Max) |
2 Ohms
|
|
|
Termination Style |
Gull Wing
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Package / Case |
4-SMD (0.300", 7.62mm) |
|
|
Supplier Device Package |
4-SMD
|
|
|
Approval Agency |
CQC, cUL, UL, VDE
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Base Product Number |
TLP240 |
