TL3330AF130QG
Part Number:
TL3330AF130QG
Product Classification:
Power Transformers
Manufacturer:
Amphenol PCTEL
Description:
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
| Mfr | E-Switch |
| Series | TL3330 |

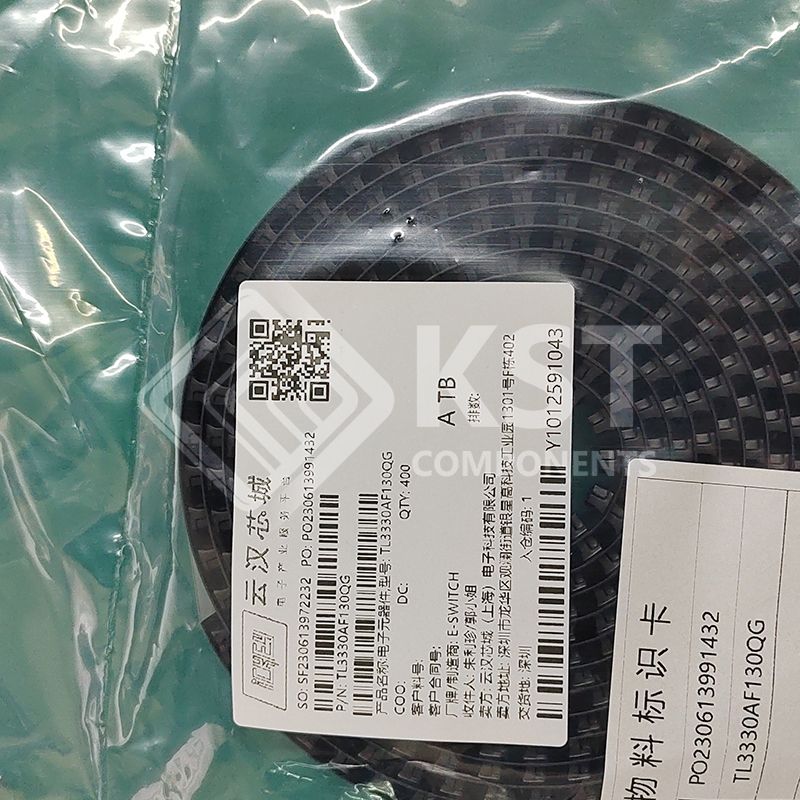

| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Rectangular Button |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Height off PCB, Vertical | - |
| Actuator Length, Right Angle | 3.50mm |
| Actuator Orientation | Side Actuated |
| Termination Style | Gull Wing |
| Outline | 7.80mm x 2.50mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 130gf |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | -30°C ~ 70°C |
| Actuator Material | Polyamide (PA), Nylon |
| Switch Travel | 0.25mm |
| Mechanical Life | 50,000 Cycles |
| Base Product Number | TL3330 |
