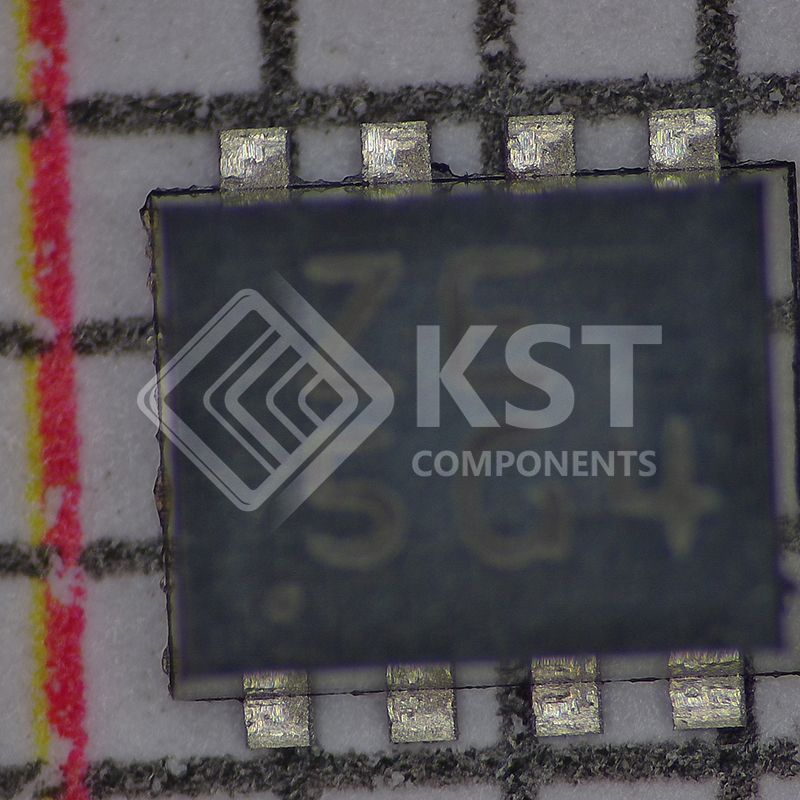

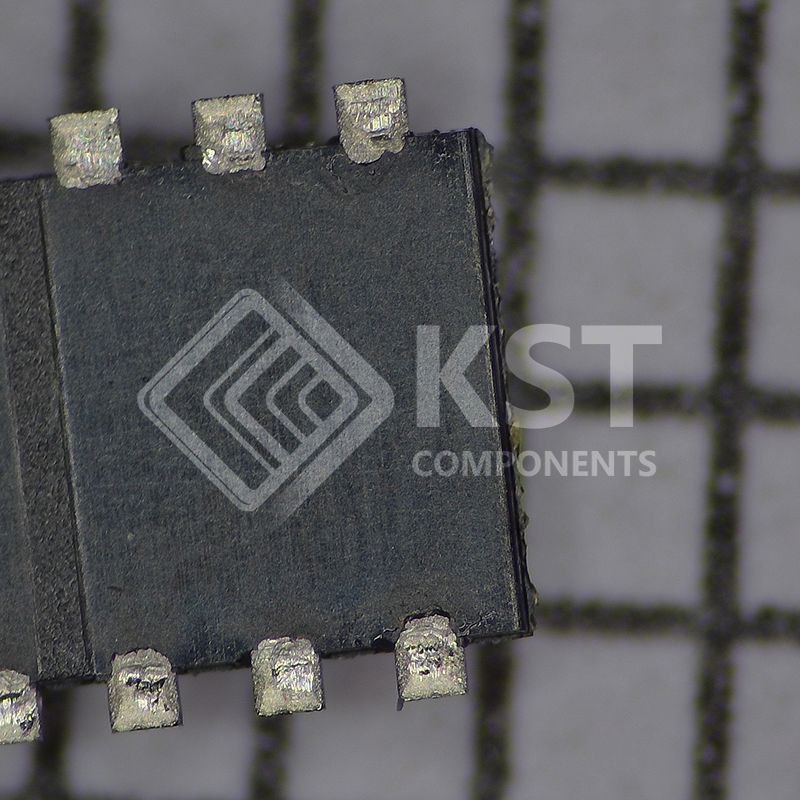

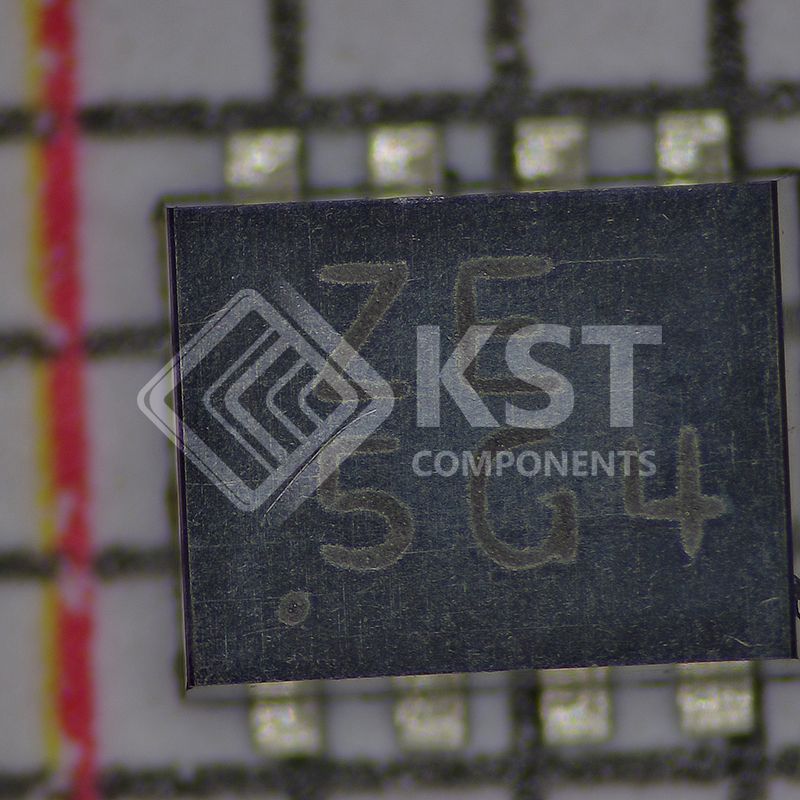

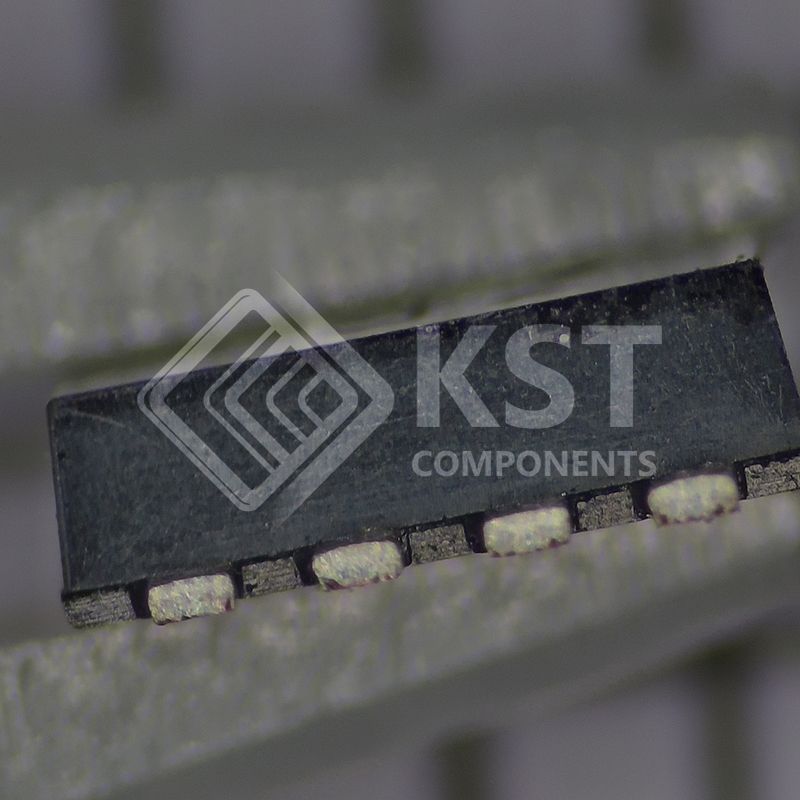

TIG065E8-TL-H
Part Number:
TIG065E8-TL-H
Product Classification:
Specialty Transformers
Manufacturer:
ADDA USA
Description:
IGBT 400V 150A ECH8
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
IGBTs
Single IGBTs
|
|
|
Manufacturer |
onsemi
|
|
|
Series |
-
|
|
|
Packaging |

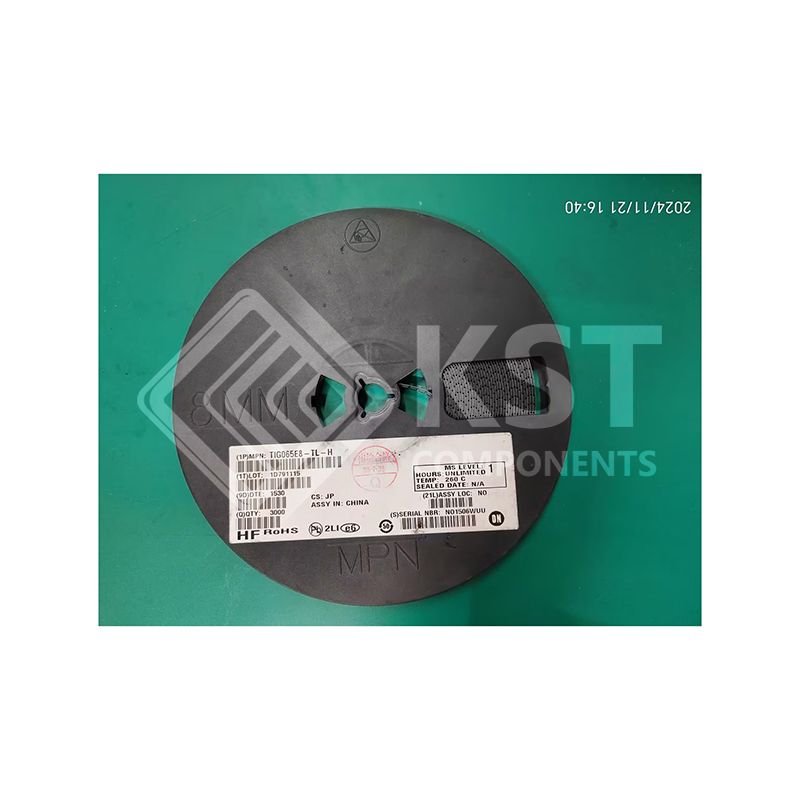

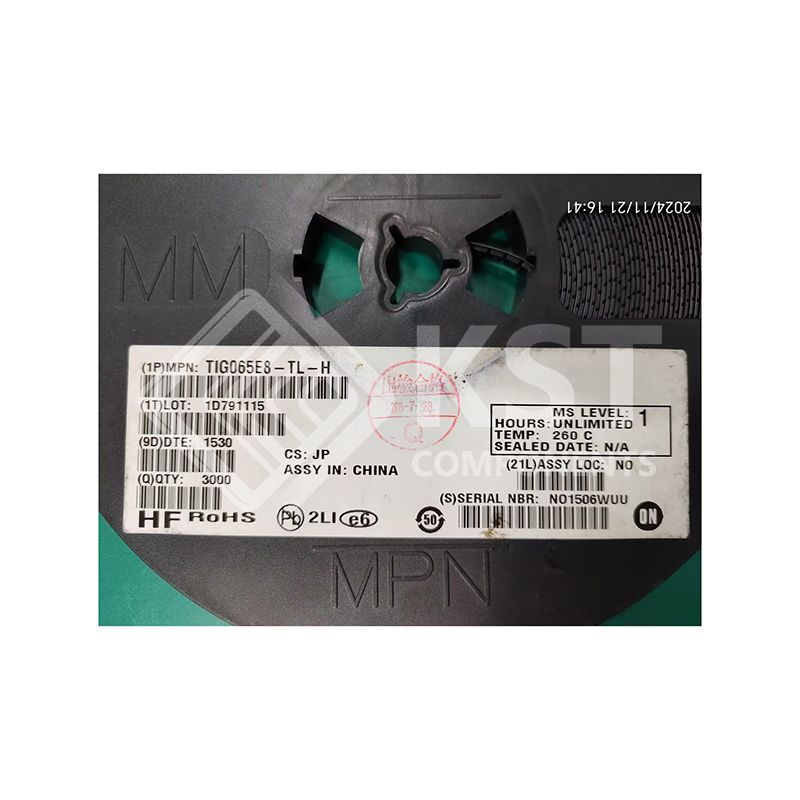

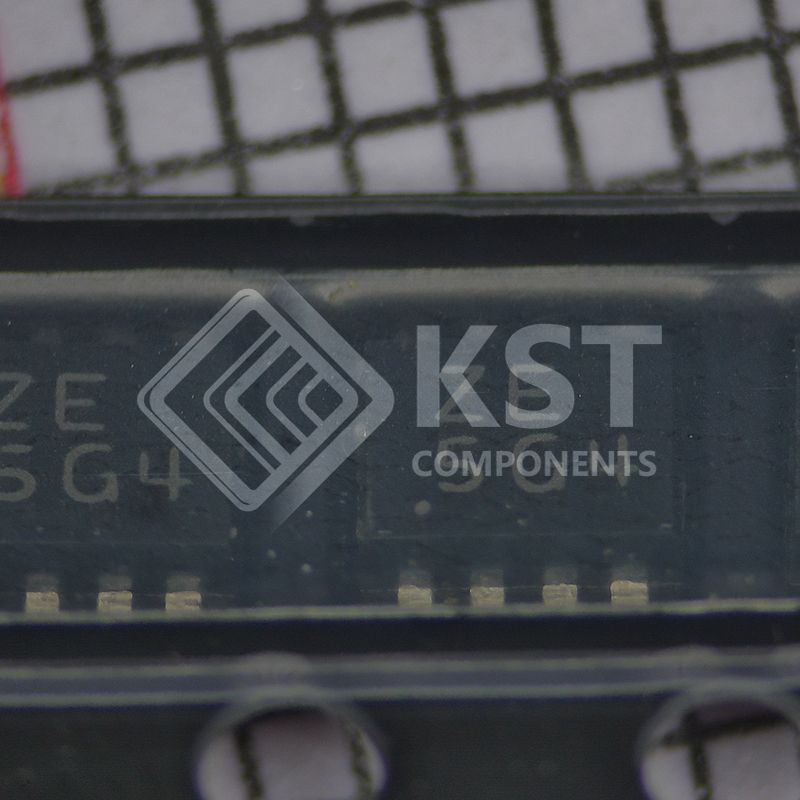

Tape & Reel (TR)
|
|
|
Part Status |
Obsolete
|
|
|
IGBT Type |
-
|
|
|
Voltage - Collector Emitter Breakdown (Max) |
400 V
|
|
|
Current - Collector Pulsed (Icm) |
150 A
|
|
|
Vce(on) (Max) @ Vge, Ic |
7V @ 2.5V, 100A
|
|
|
Switching Energy |
-
|
|
|
Input Type |
Standard
|
|
|
Td (on/off) @ 25°C |
-
|
|
|
Test Condition |
-
|
|
|
Operating Temperature |
150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
8-SMD, Flat Leads
|
|
|
Supplier Device Package |
8-ECH
|
|
|
Base Product Number |
TIG065 |
