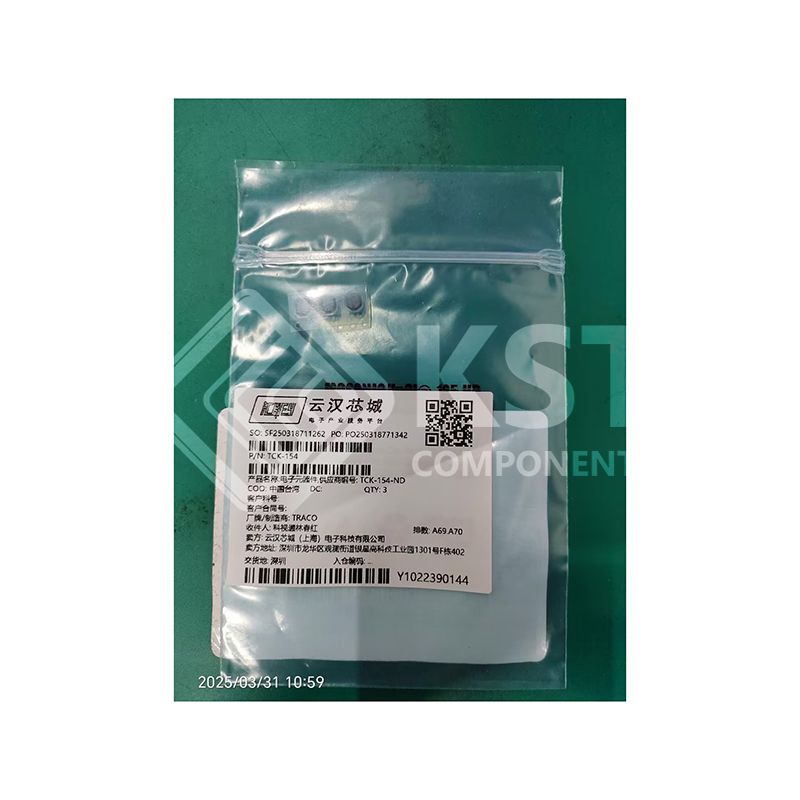

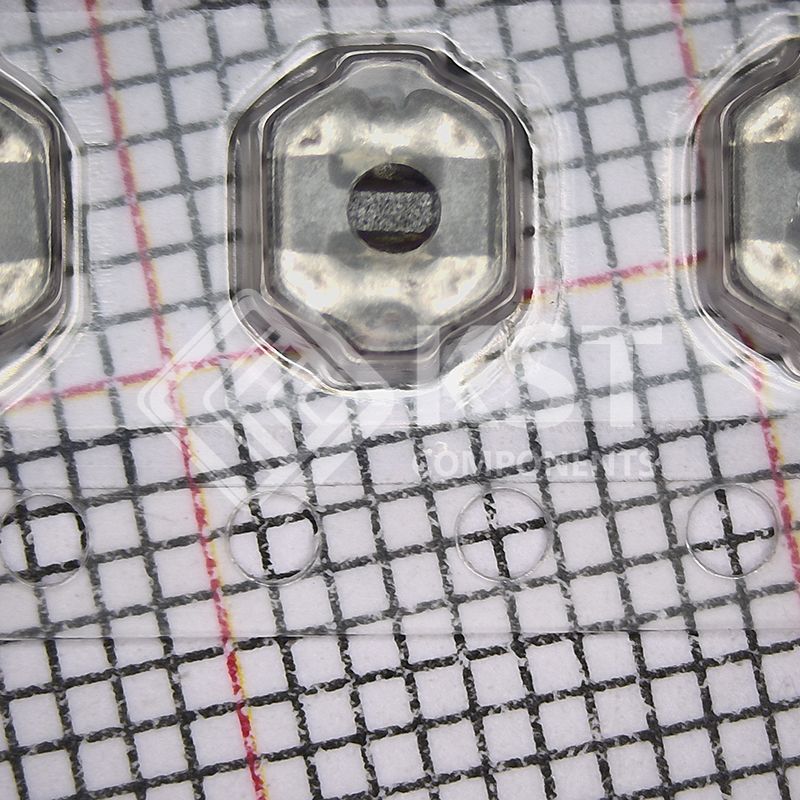

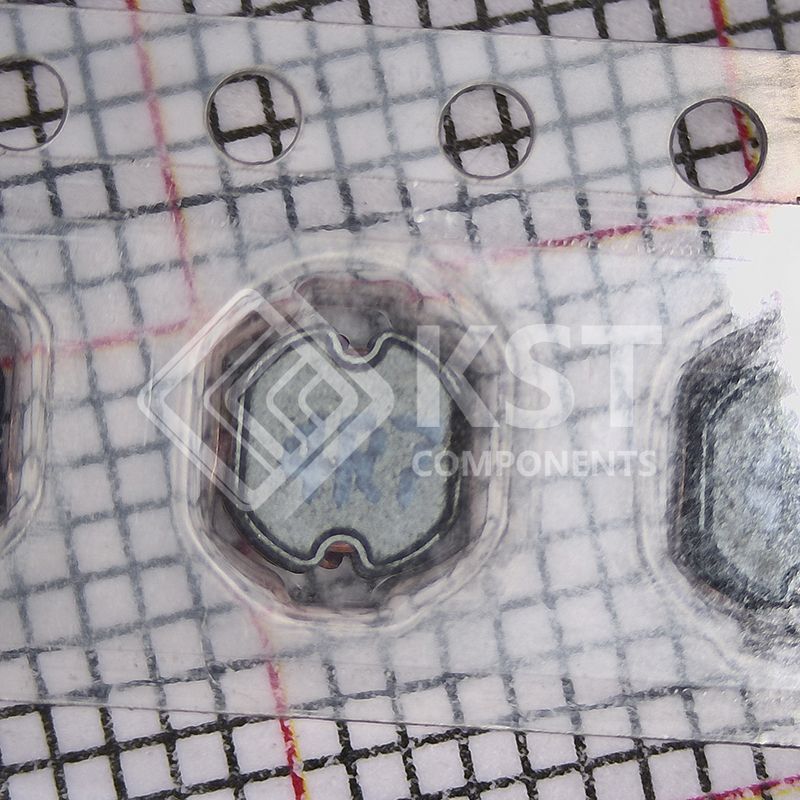

TCK-154
Part Number:
TCK-154
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Band Solutions, LLC
Description:
FIXED IND 4.7UH 1.15A 109MOHM SM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Traco Power |
|
|
Series |
-
|
|
|
Packaging |
Strip
|
|
|
Part Status |
Active
|
|
|
Type |
-
|
|
|
Material - Core |
-
|
|
|
Inductance |
4.7 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
1.15 A |
|
|
Current - Saturation (Isat) |
-
|
|
|
Shielding |
Unshielded
|
|
|
DC Resistance (DCR) |
109mOhm
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
-
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Inductance Frequency - Test |
1 kHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Size / Dimension |
0.177" L x 0.158" W (4.50mm x 4.00mm)
|
|
|
Height - Seated (Max) |
0.146" (3.70mm)
|
