SWPA4030S100MT
Part Number:
SWPA4030S100MT
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Times Microwave Systems
Description:
FIXED IND 10UH 1.5A 130MOHM SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Shenzhen Sunlord Electronics Co., Ltd. |
|
|
Series |
SWPA |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
10 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
1.5 A |
|
|
Current - Saturation (Isat) |
2.4A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
130mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
21MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 kHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|

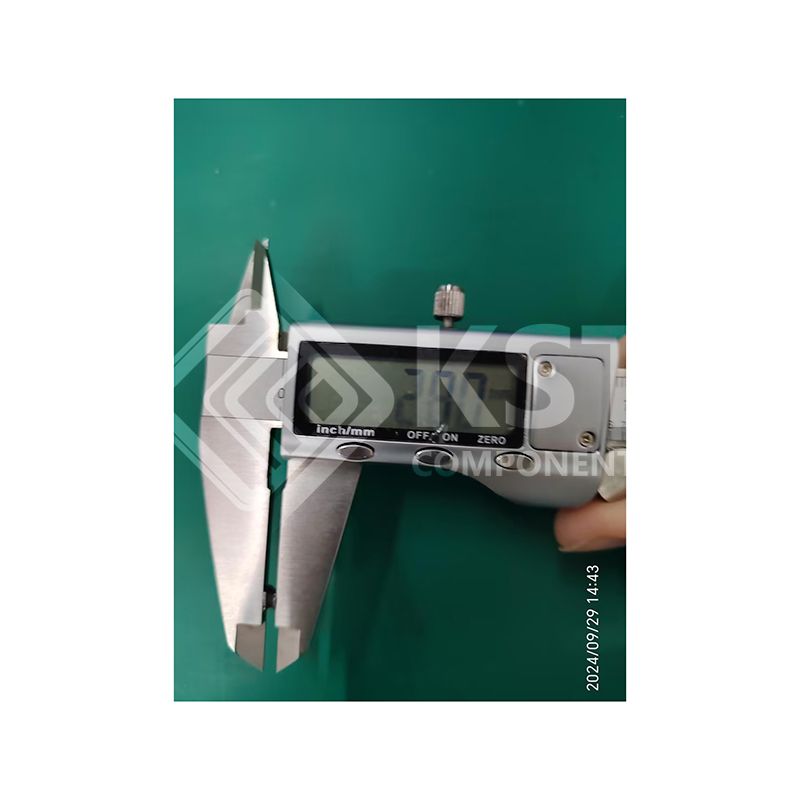

Size / Dimension |
0.157" L x 0.157" W (4.00mm x 4.00mm)
|
|
|
Height - Seated (Max) |
0.118" (3.00mm)
|
