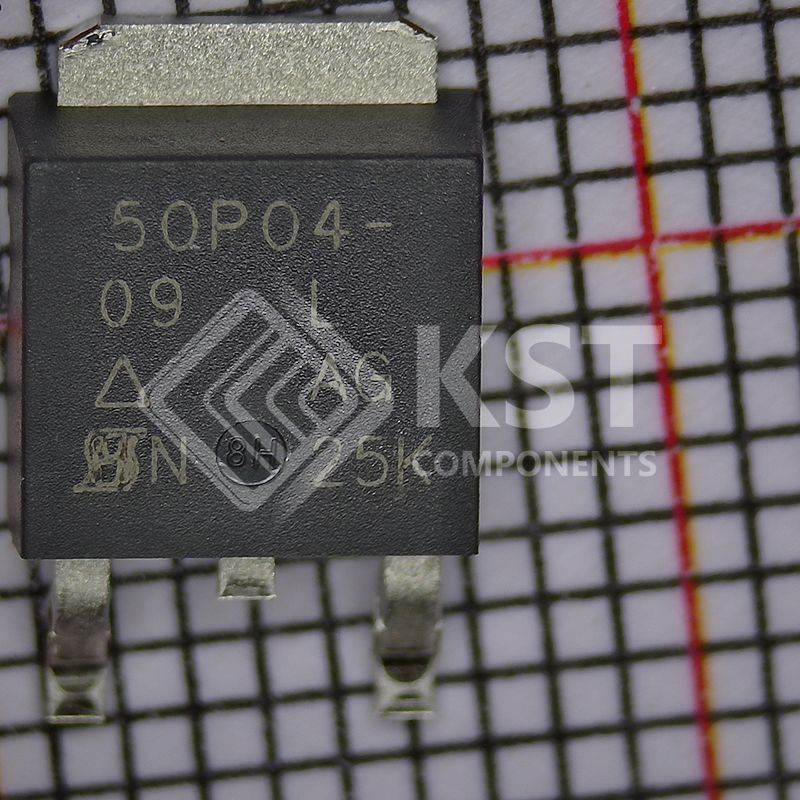

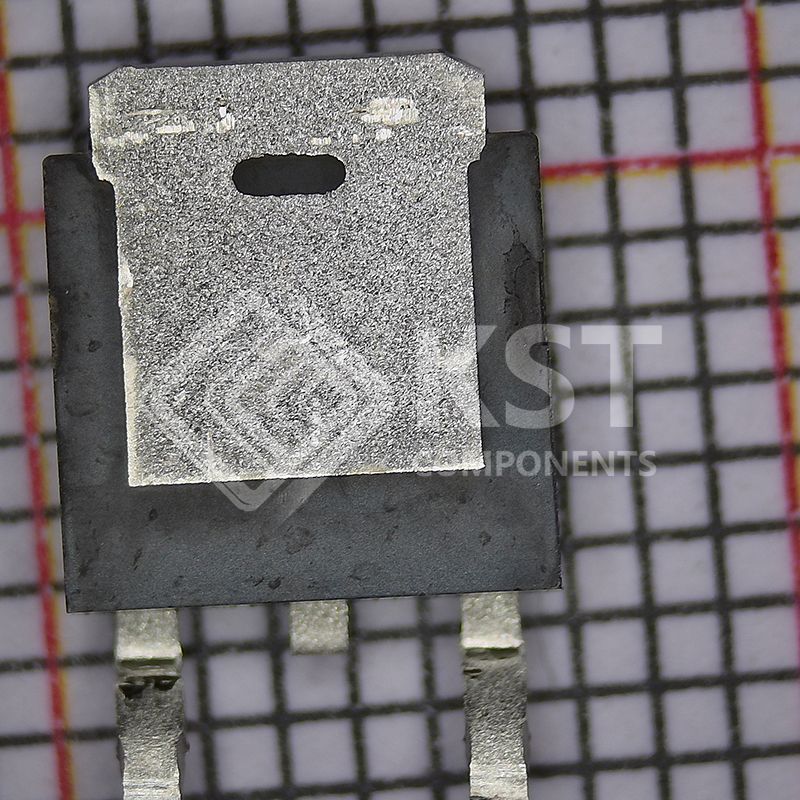

SUD50P04-09L-E3
Part Number:
SUD50P04-09L-E3
Product Classification:
Solid State Relays (SSR)
Manufacturer:
2J Antennas
Description:
MOSFET P-CH 40V 50A TO252
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Vishay Siliconix |
|
|
Series |
TrenchFET® |
|
|

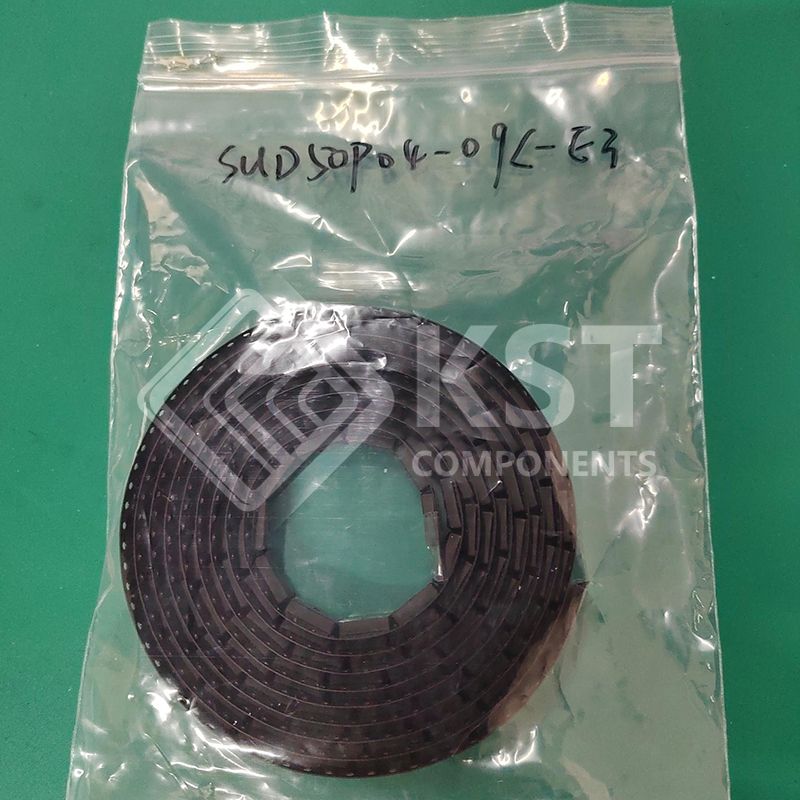

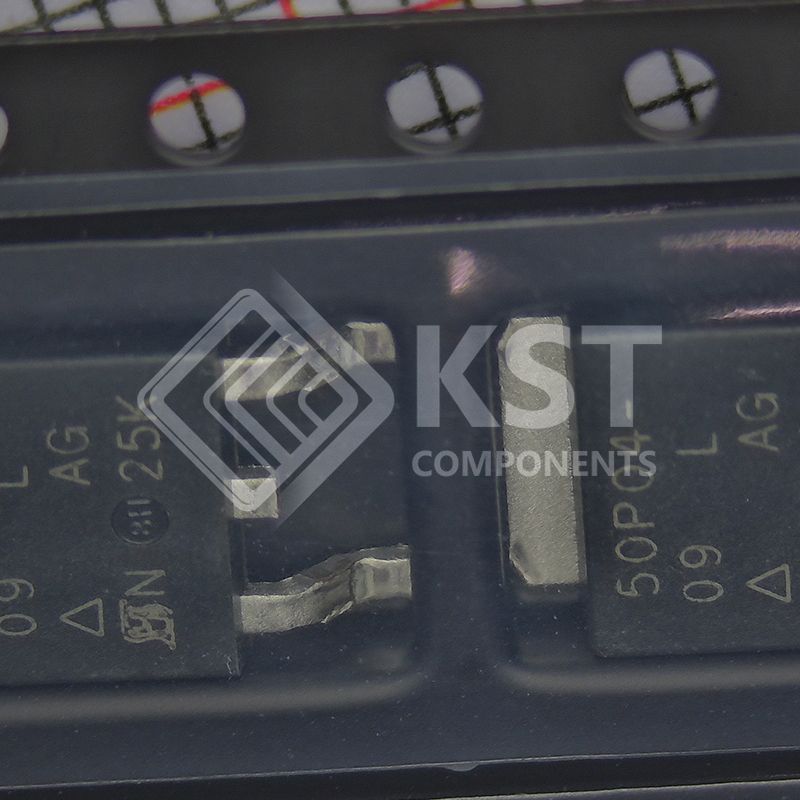

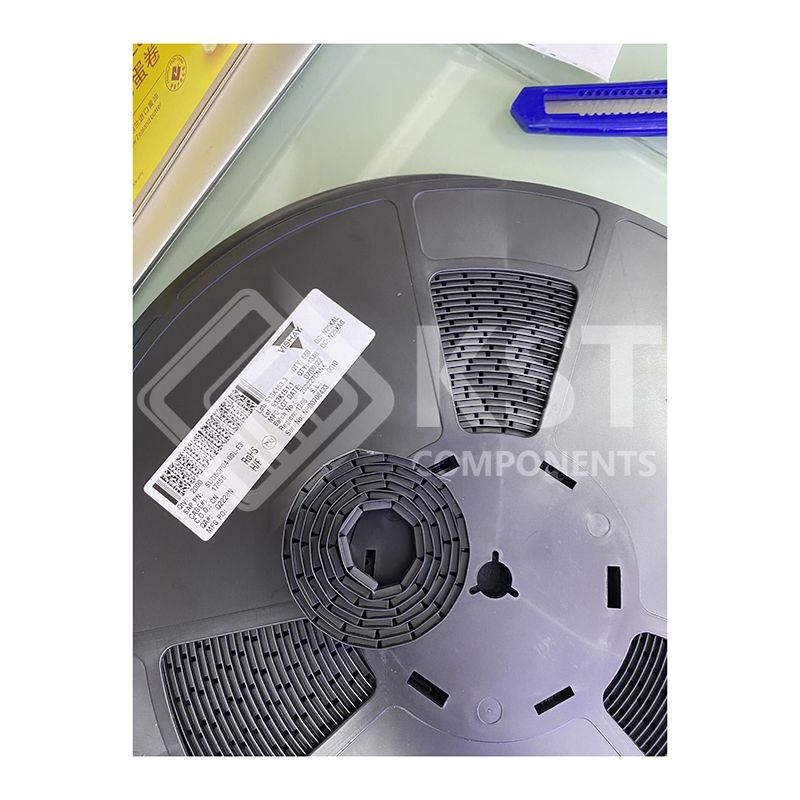

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Last Time Buy
|
|
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
40 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
50A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs |
9.4mOhm @ 24A, 10V
|
|
|
Vgs(th) (Max) @ Id |
3V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
150 nC @ 10 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
4800 pF @ 25 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
3W (Ta), 136W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 175°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
TO-252AA
|
|
|
Package / Case |
TO-252-3, DPAK (2 Leads + Tab), SC-63 |
|
|
Base Product Number |
SUD50 |
