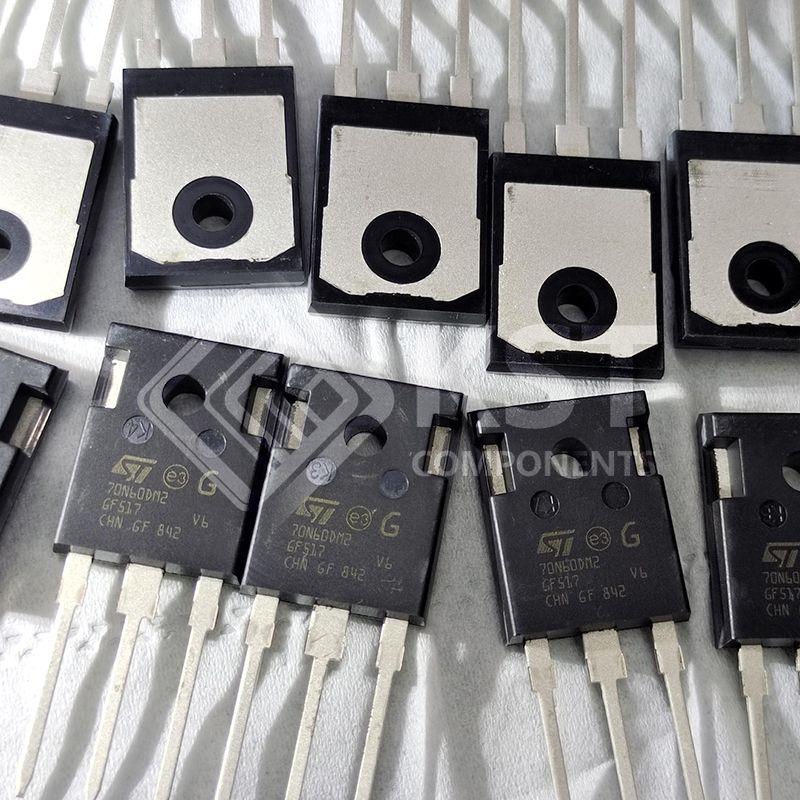

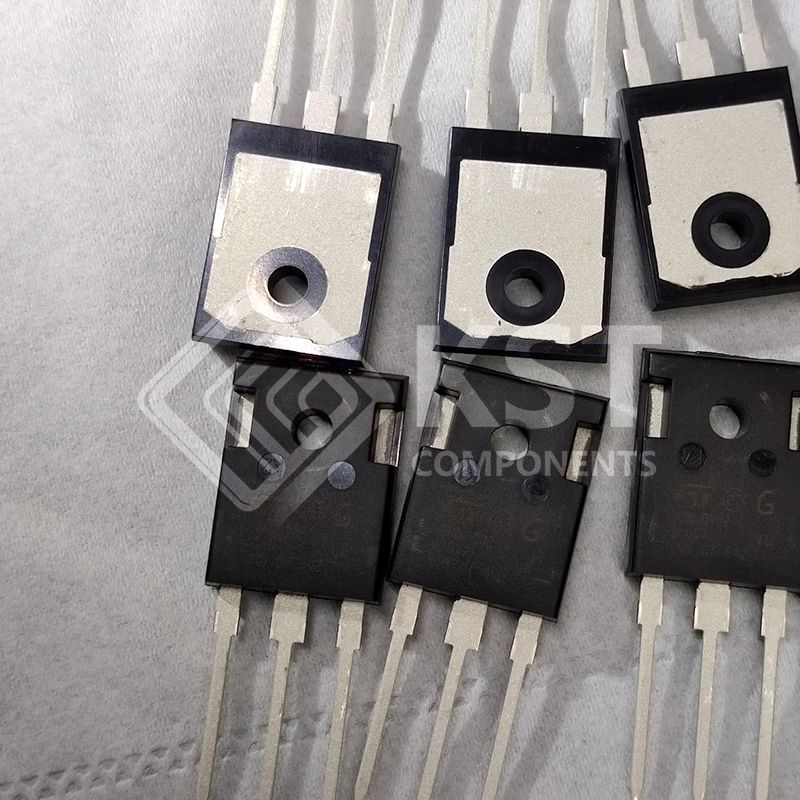

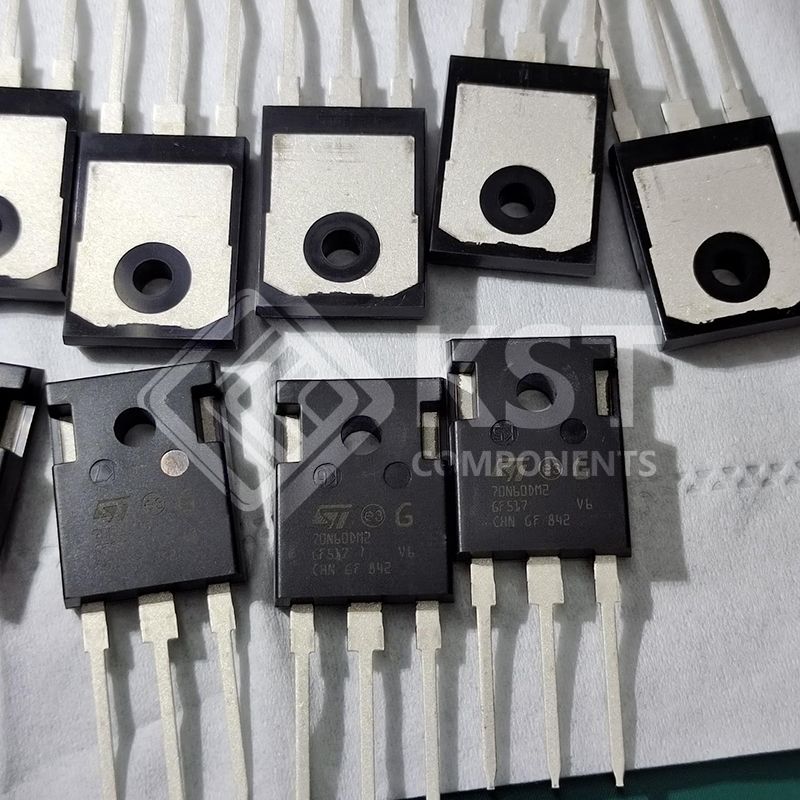

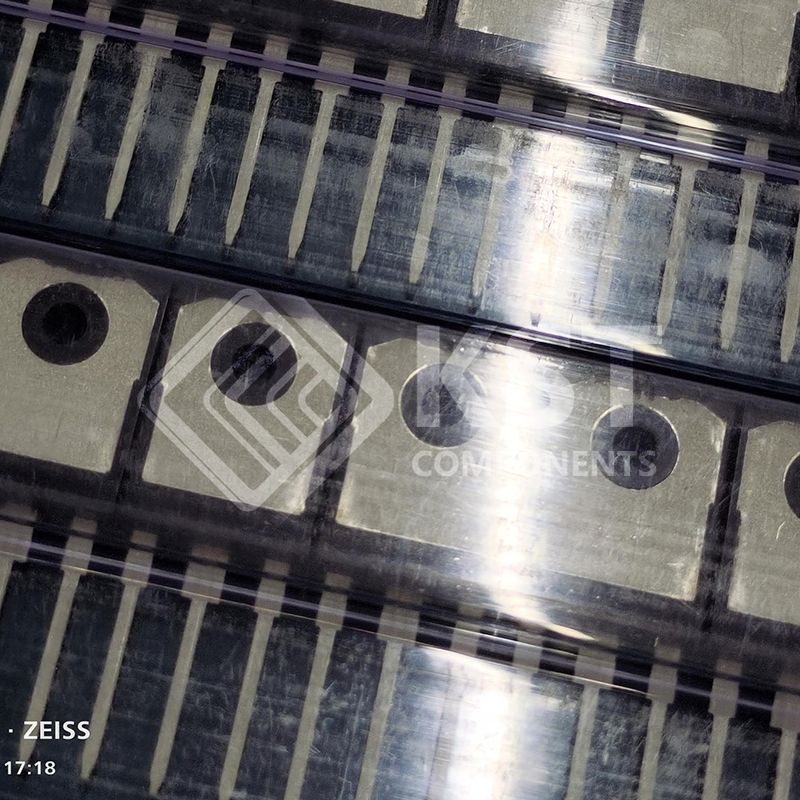

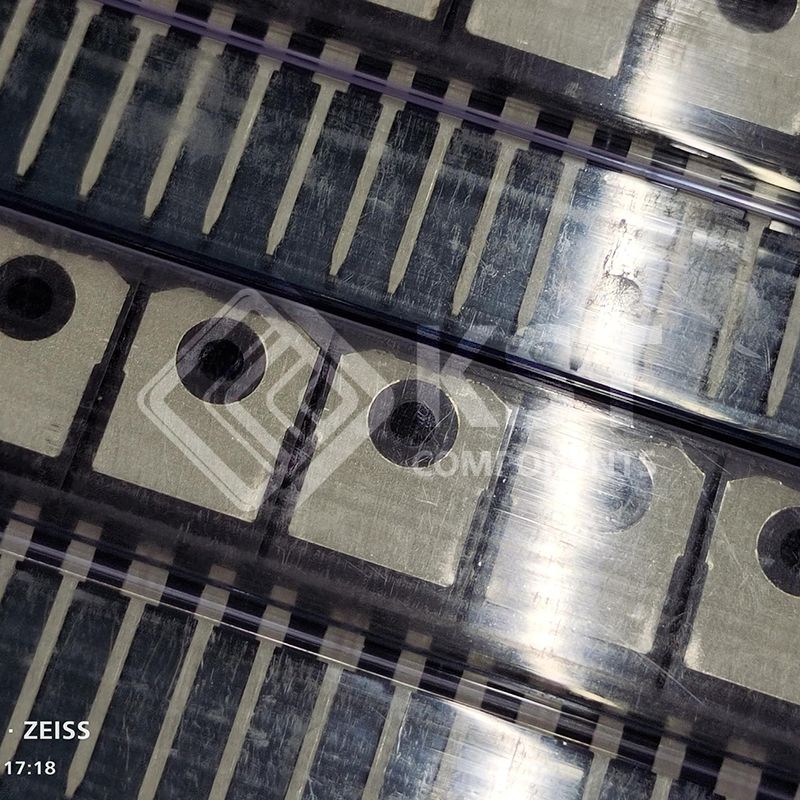

STWA70N60DM2
Part Number:
STWA70N60DM2
Product Classification:
Solid State Relays (SSR)
Manufacturer:
3M
Description:
MOSFET N-CHANNEL 600V 66A TO247
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
STMicroelectronics |
|
|
Series |
MDmesh™ DM2 |
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
600 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
66A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
10V
|
|
|
Rds On (Max) @ Id, Vgs |
42mOhm @ 33A, 10V
|
|
|
Vgs(th) (Max) @ Id |
5V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
120 nC @ 10 V
|
|
|
Vgs (Max) |
±25V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
5508 pF @ 100 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
446W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Through Hole
|
|
|
Supplier Device Package |
TO-247 Long Leads
|
|
|
Package / Case |
TO-247-3 |
|
|
Base Product Number |
STWA70 |
