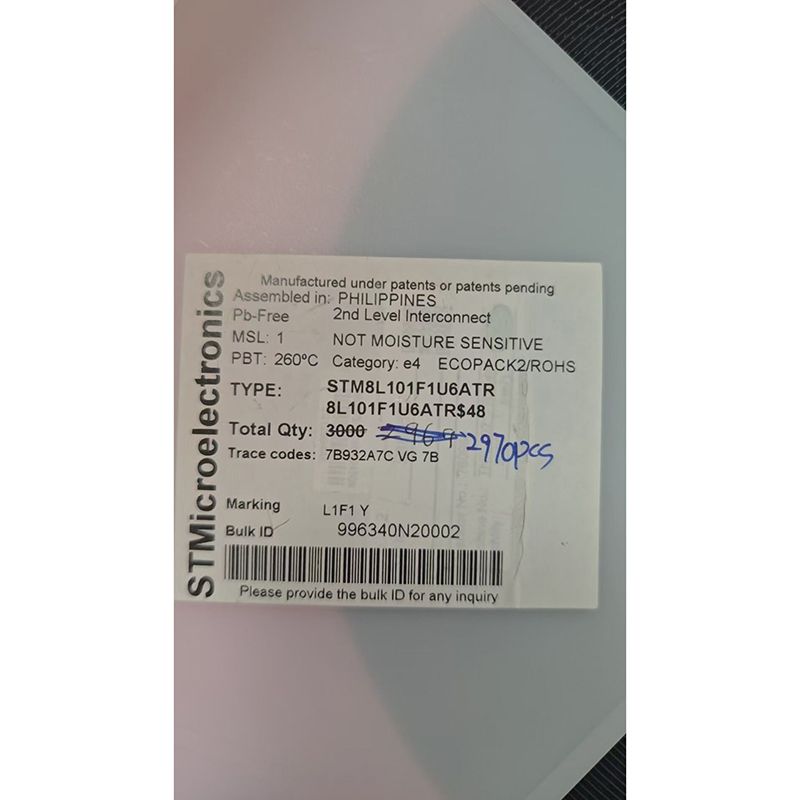

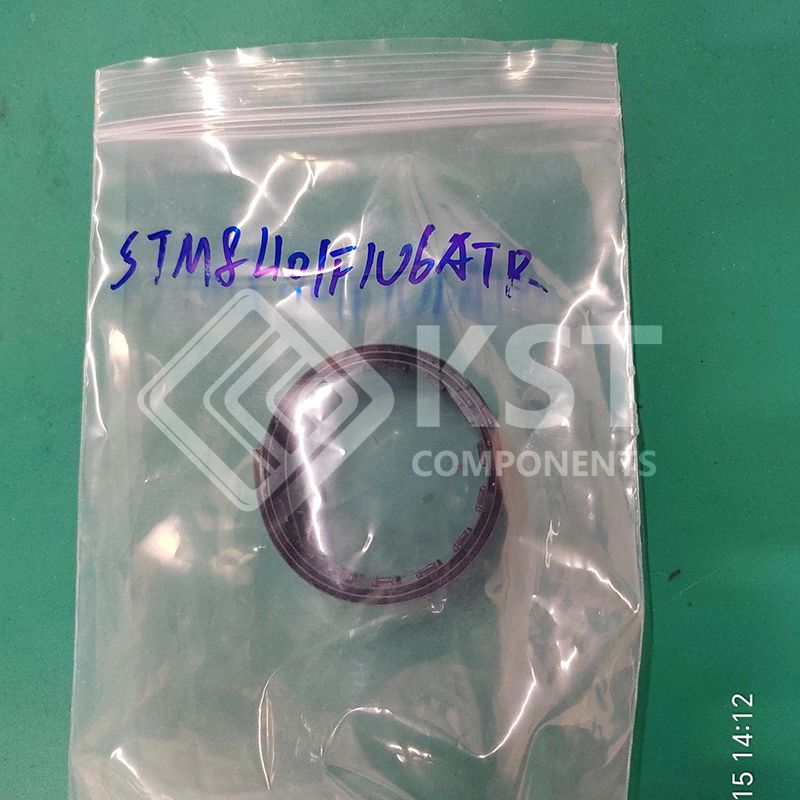

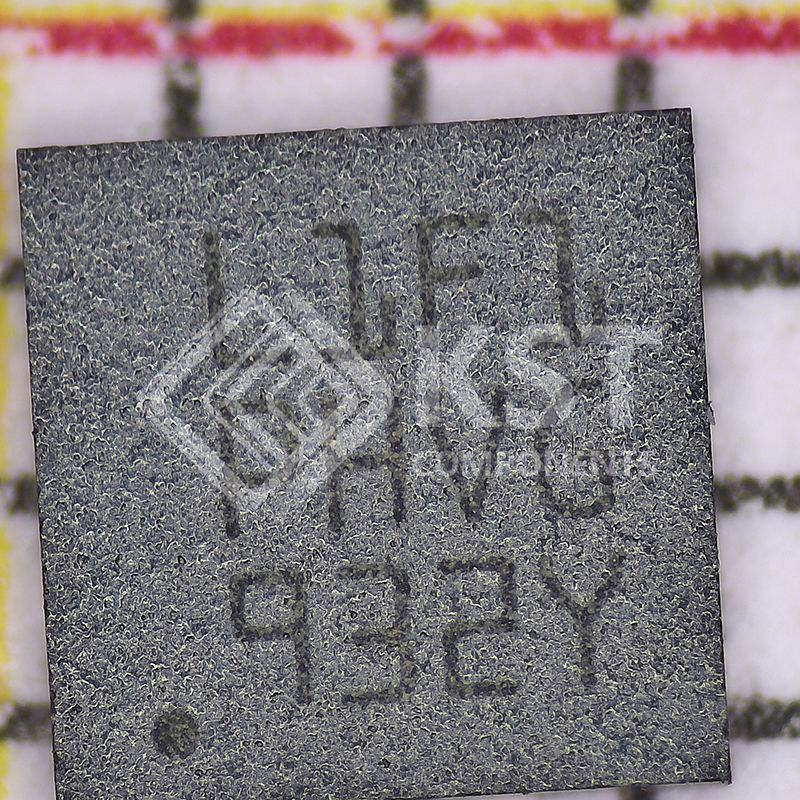

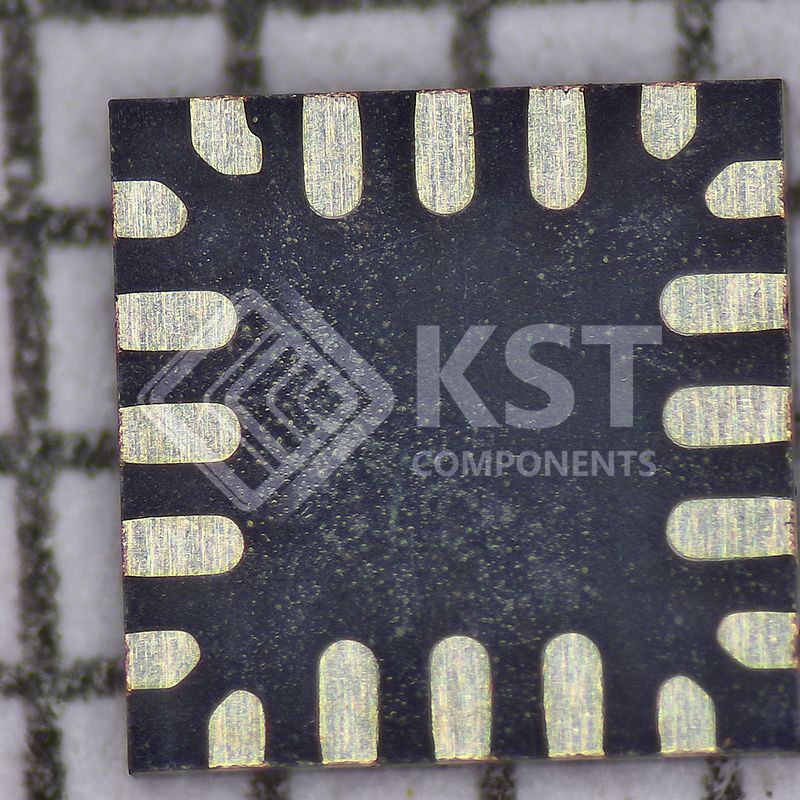

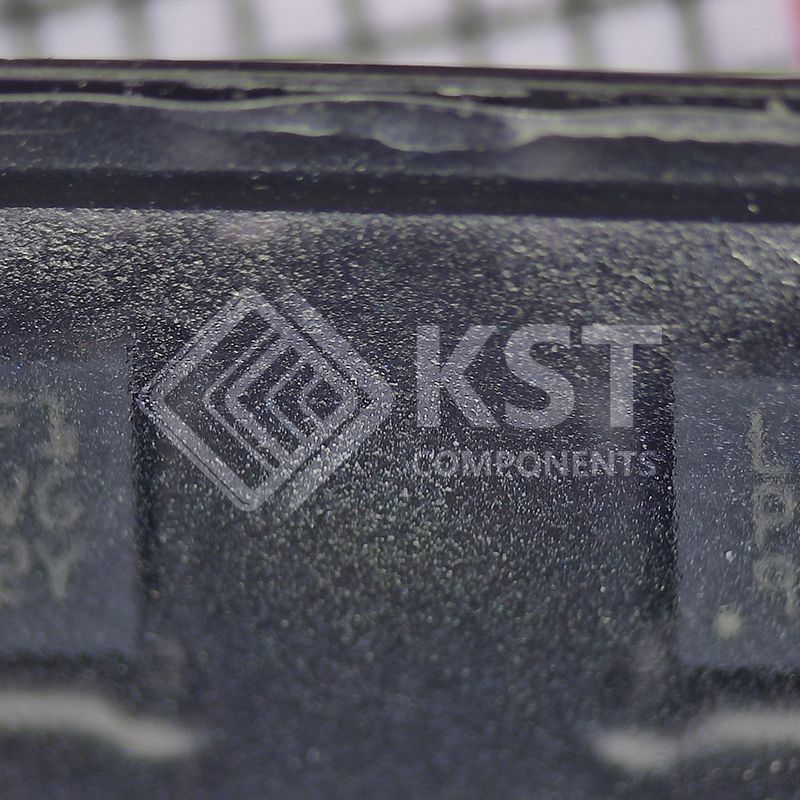

STM8L101F1U6ATR
Part Number:
STM8L101F1U6ATR
Product Classification:
Audio Transformers
Manufacturer:
3M
Description:
IC MCU 8BIT 2KB FLASH 20UFQFPN
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Embedded
Microcontrollers
|
|
|
Mfr |
STMicroelectronics |
|
|
Series |
STM8L EnergyLite |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Core Processor |
STM8
|
|
|
Core Size |
8-Bit
|
|
|
Speed |
16MHz
|
|
|
Connectivity |
I2C, SPI, UART/USART
|
|
|
Peripherals |
Infrared, POR, PWM, WDT
|
|
|
Number of I/O |
18
|
|
|
Program Memory Size |
2KB (2K x 8) |
|
|
Program Memory Type |
FLASH
|
|
|
EEPROM Size |
-
|
|
|
RAM Size |
1.5K x 8
|
|
|
Voltage - Supply (Vcc/Vdd) |
1.65V ~ 3.6V
|
|
|
Data Converters |
-
|
|
|
Oscillator Type |
Internal
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
20-UFQFPN (3x3)
|
|
|
Package / Case |
20-UFQFN
|
|
|
Base Product Number |
STM8 |
