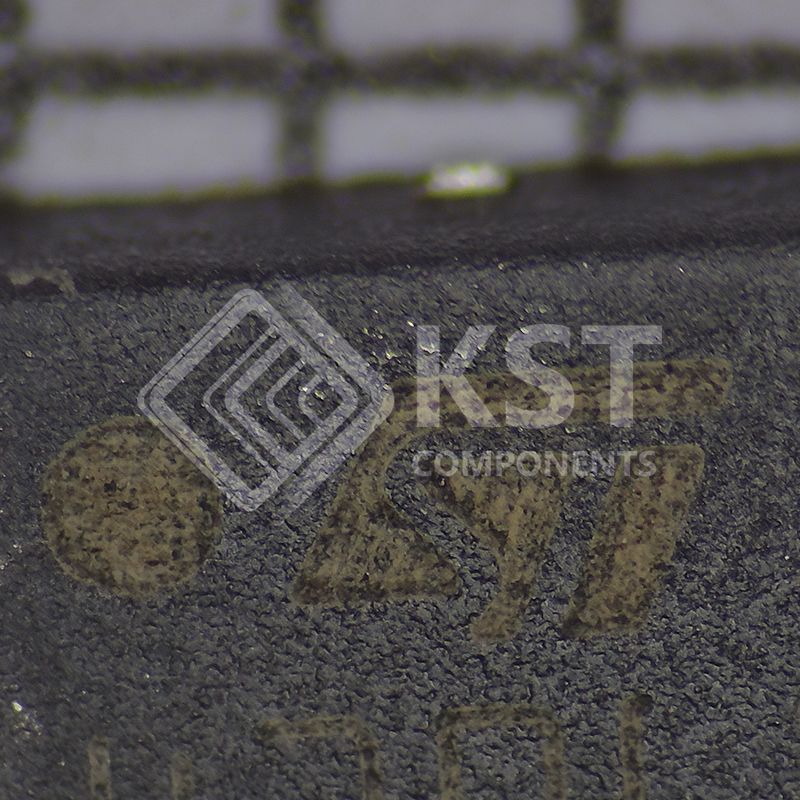

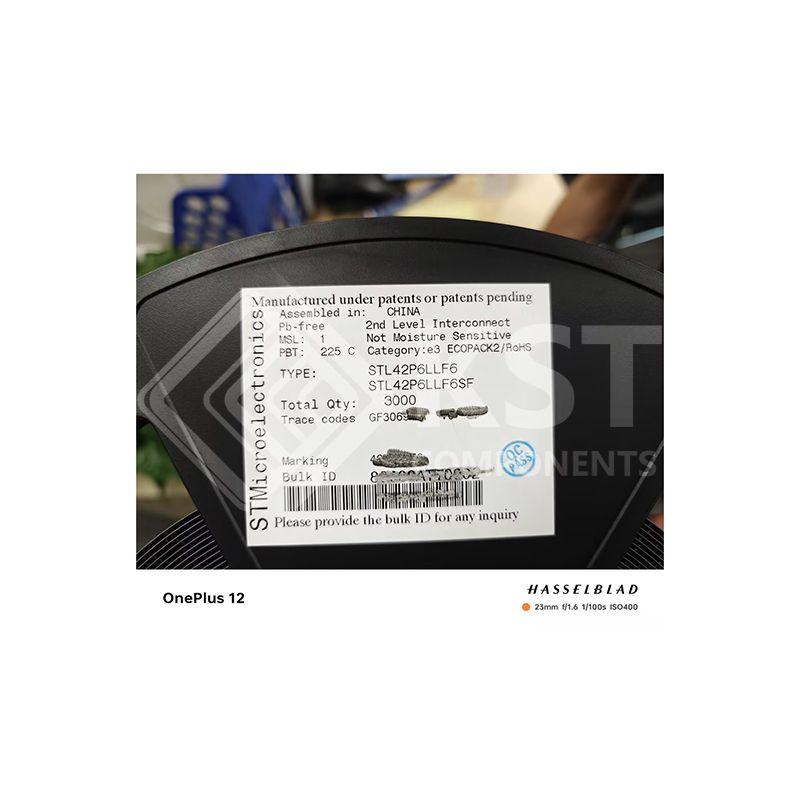

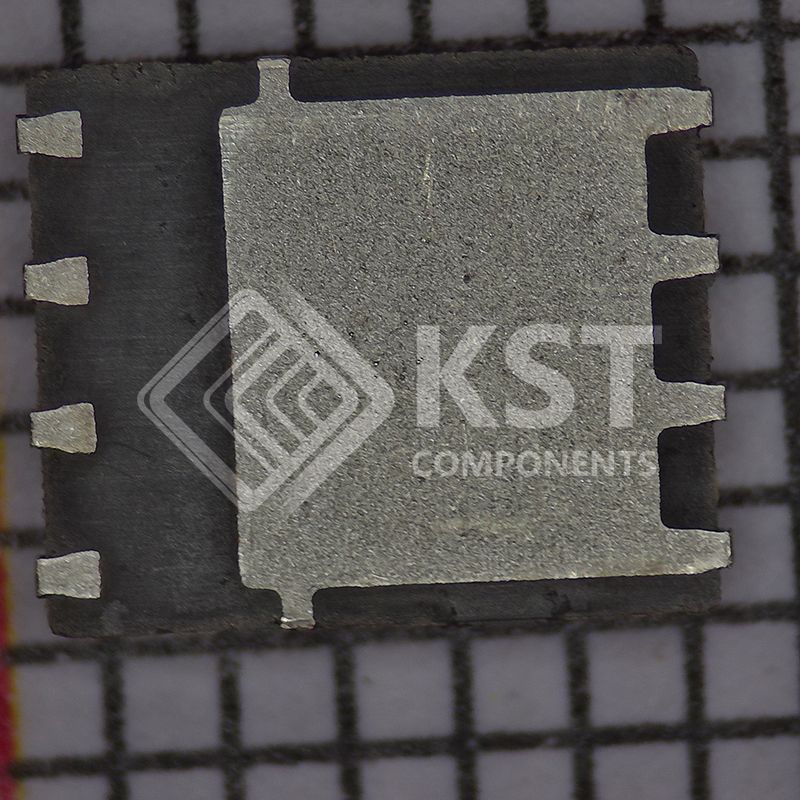

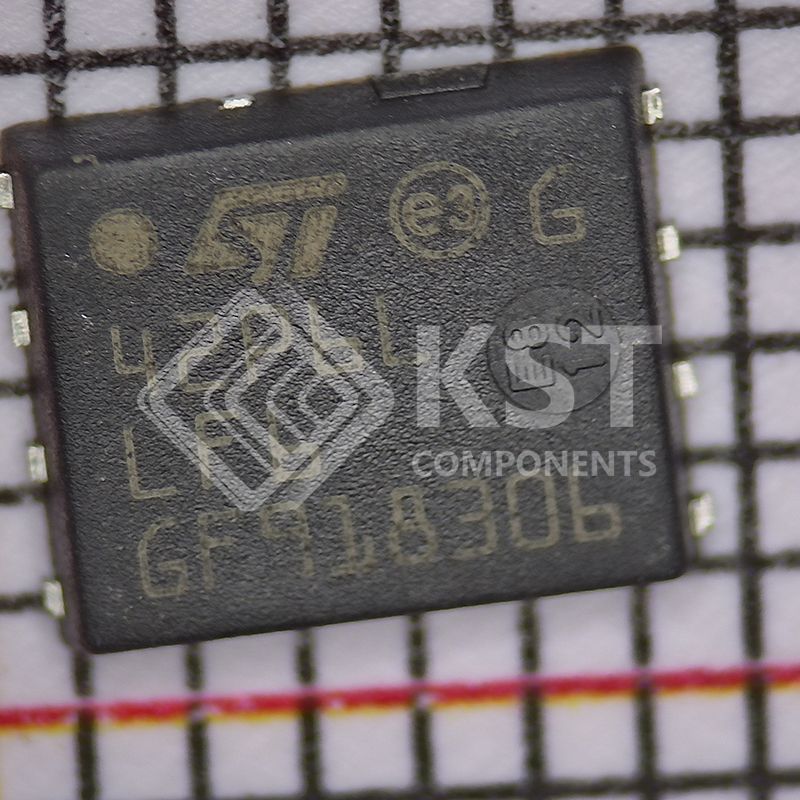

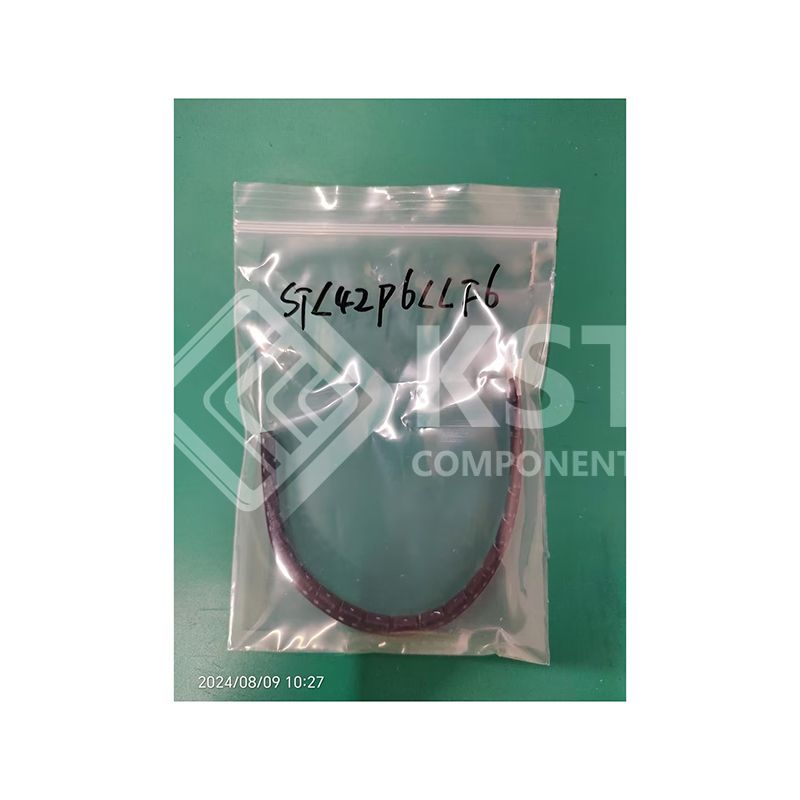

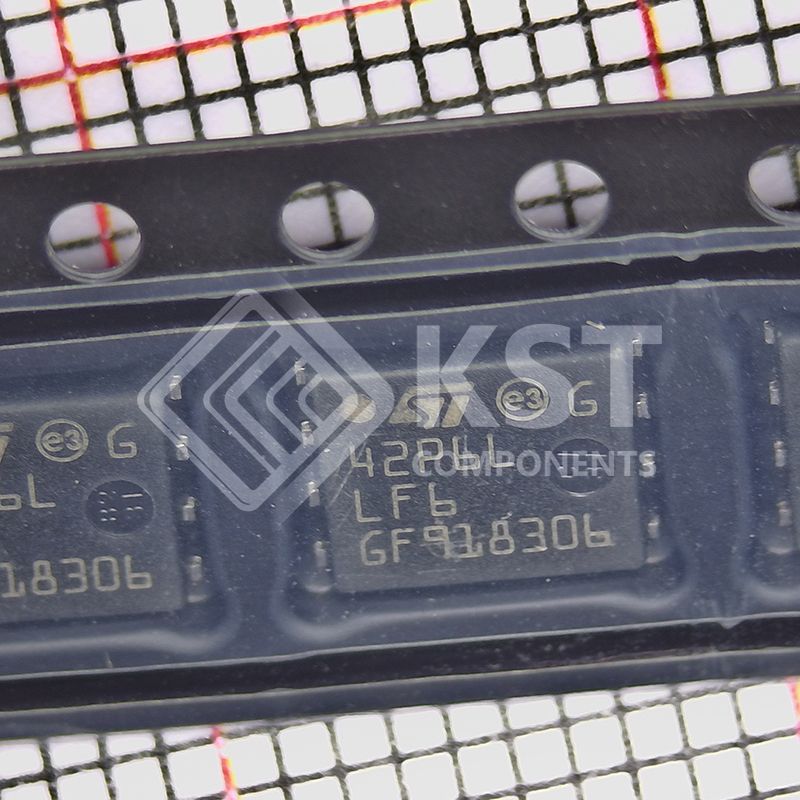

STL42P6LLF6
Part Number:
STL42P6LLF6
Product Classification:
Solid State Relays (SSR)
Manufacturer:
3M
Description:
MOSFET P-CH 60V 42A POWERFLAT
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
STMicroelectronics |
|
|
Series |
STripFET™ F6 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
60 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
42A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs |
26mOhm @ 4.5A, 10V
|
|
|
Vgs(th) (Max) @ Id |
2.5V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
30 nC @ 4.5 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
3780 pF @ 25 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
100W (Tc)
|
|
|
Operating Temperature |
175°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
PowerFlat™ (5x6)
|
|
|
Package / Case |
8-PowerVDFN |
|
|
Base Product Number |
STL42 |
