STH3N150-2
Part Number:
STH3N150-2
Product Classification:
Solid State Relays (SSR)
Manufacturer:
3M
Description:
MOSFET N-CH 1500V 2.5A H2PAK
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
STMicroelectronics |
|
|
Series |
PowerMESH™ |
|
|

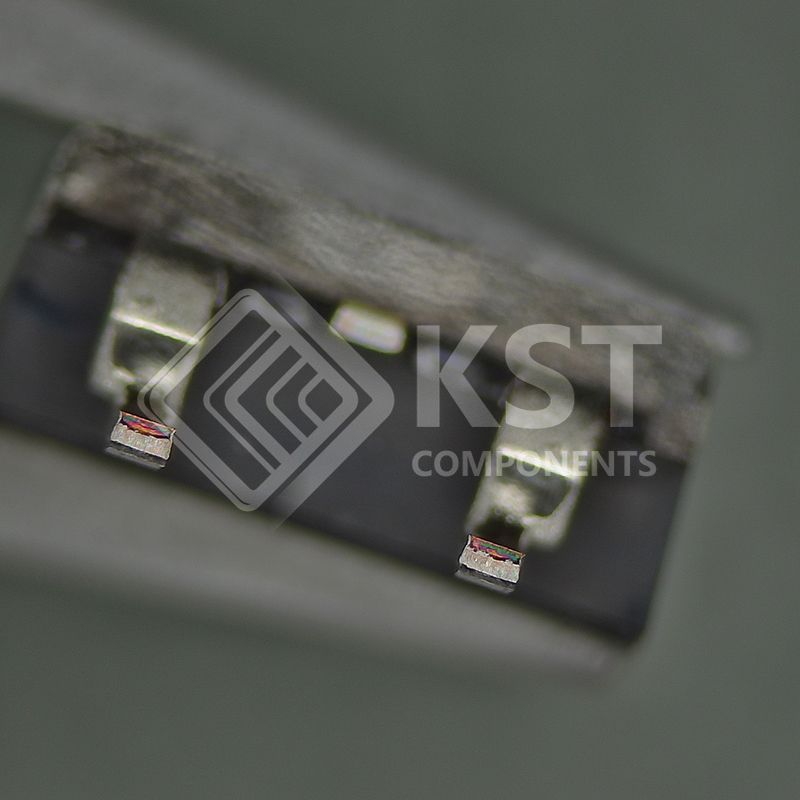

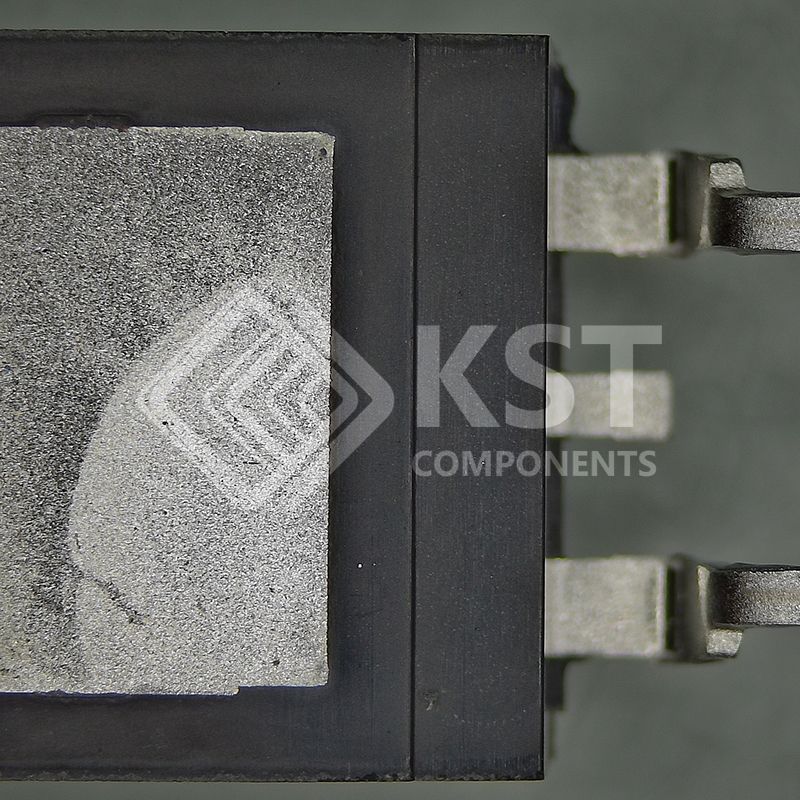

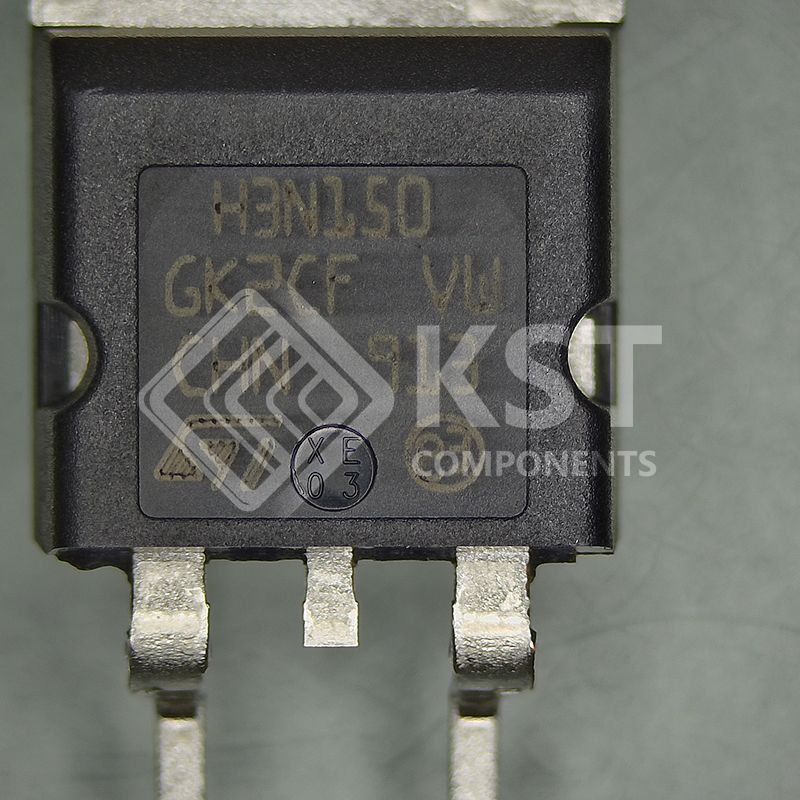

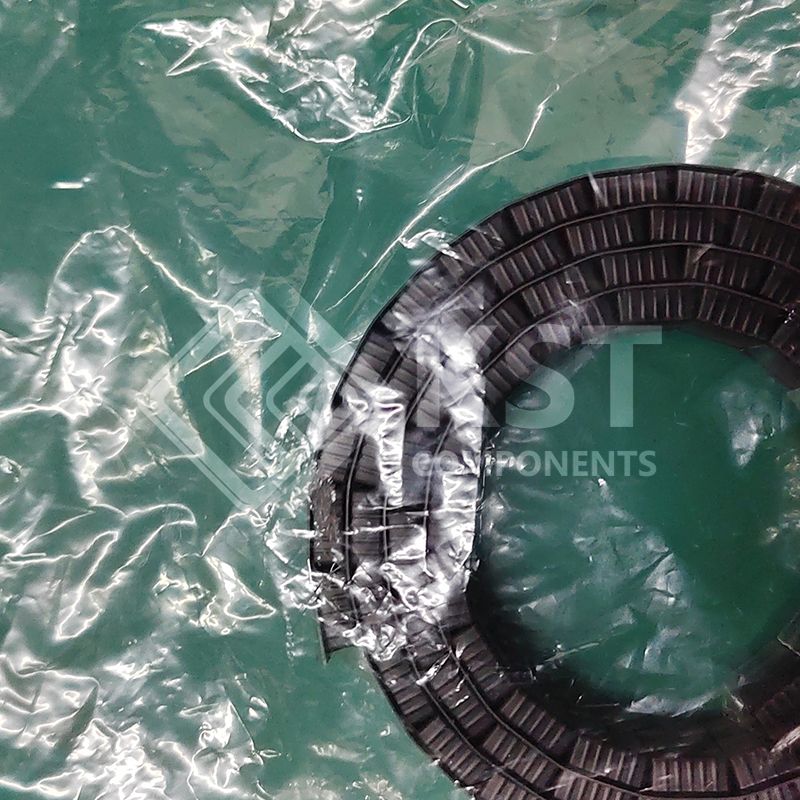

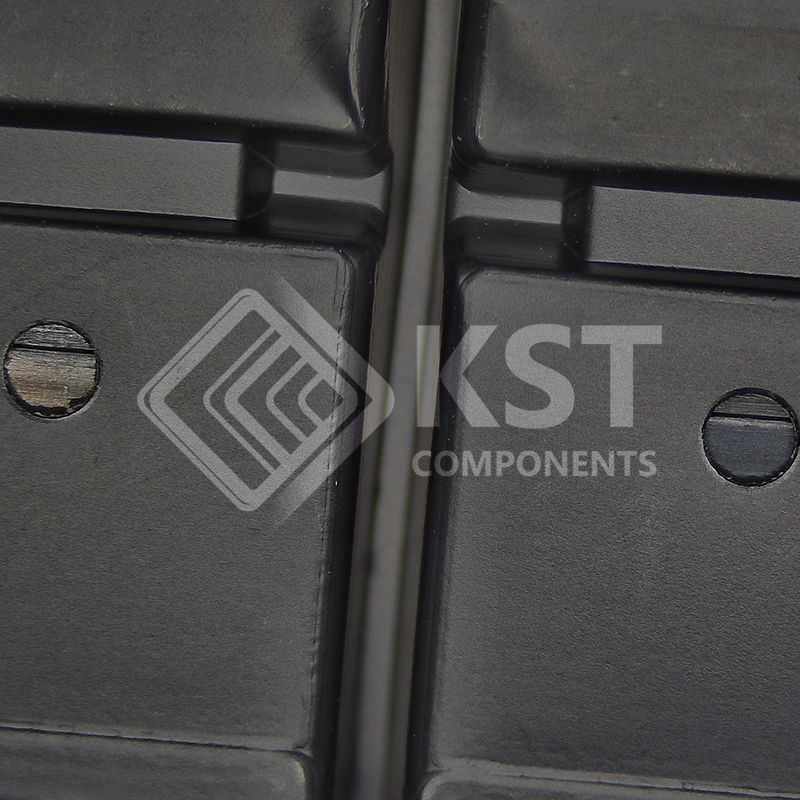

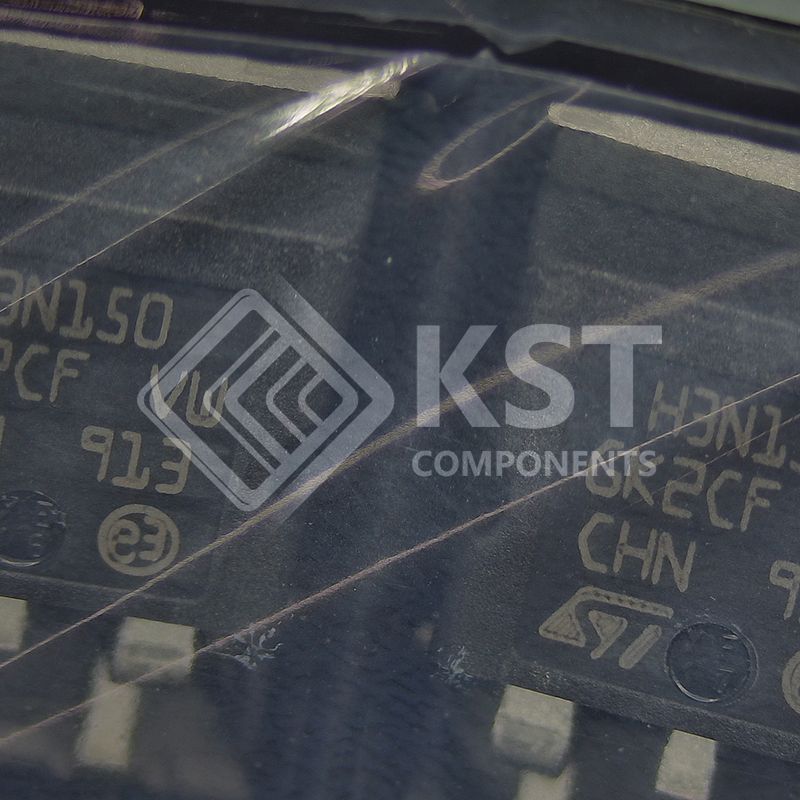

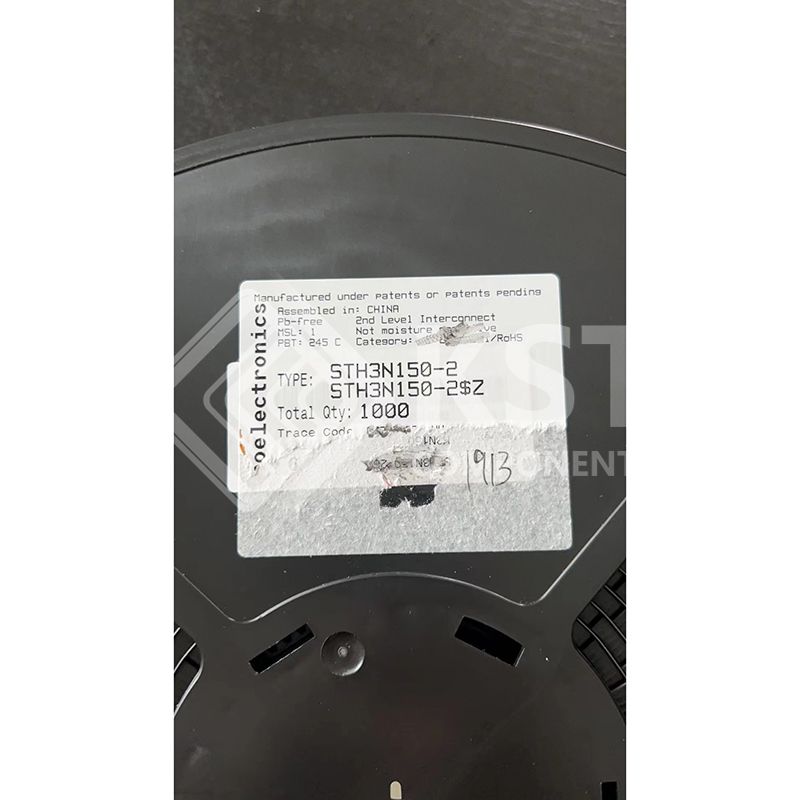

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
1500 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
2.5A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
10V
|
|
|
Rds On (Max) @ Id, Vgs |
9Ohm @ 1.3A, 10V
|
|
|
Vgs(th) (Max) @ Id |
5V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
29.3 nC @ 10 V
|
|
|
Vgs (Max) |
±30V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
939 pF @ 25 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
140W (Tc)
|
|
|
Operating Temperature |
150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
H2PAK
|
|
|
Package / Case |
TO-263-3, D2PAK (2 Leads + Tab), Variant |
|
|
Base Product Number |
STH3N150 |
