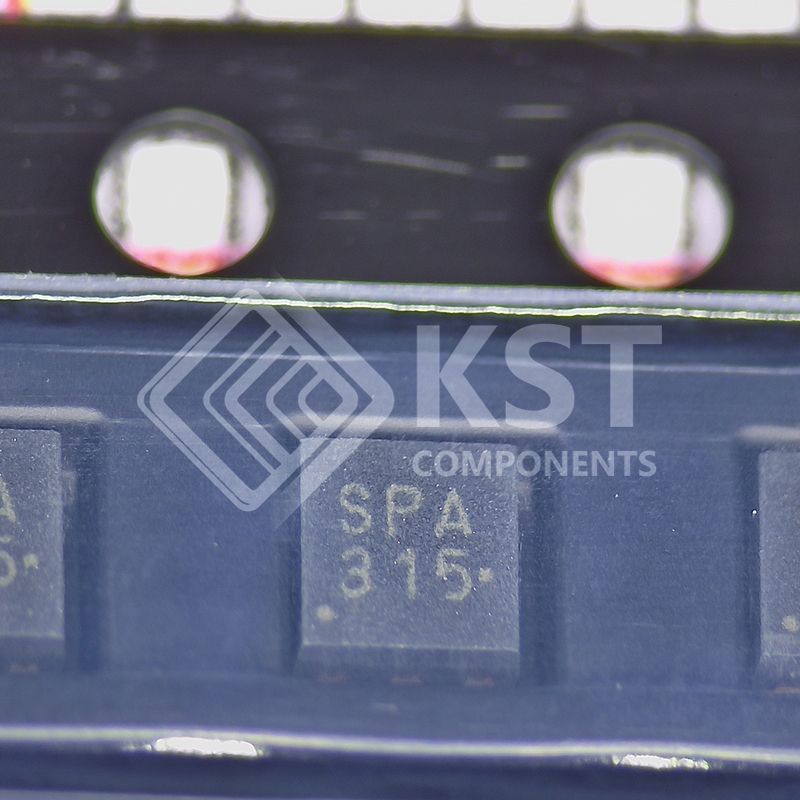

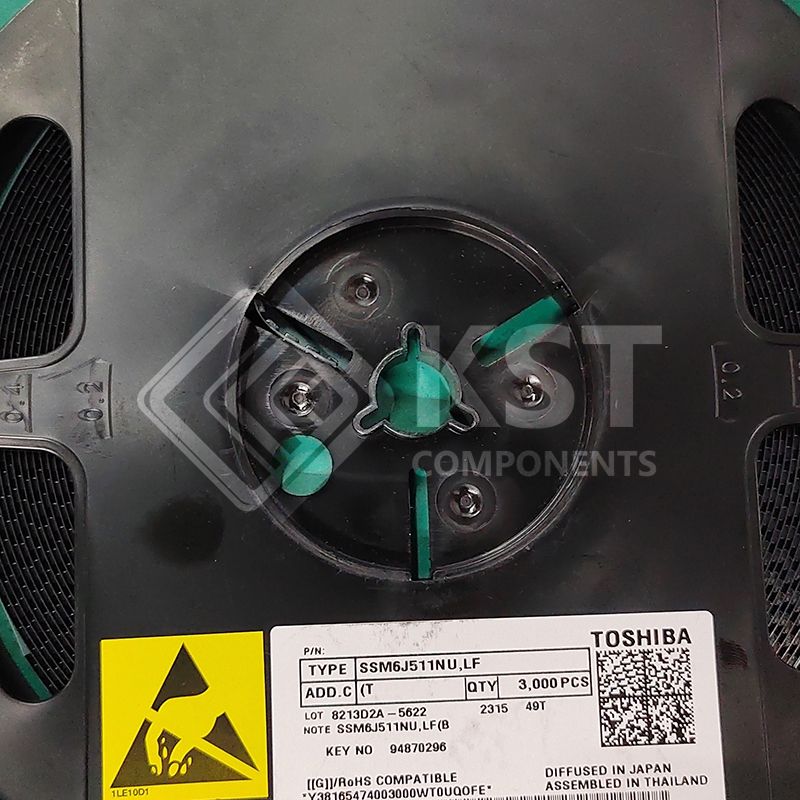

SSM6J511NU,LF
Part Number:
SSM6J511NU,LF
Product Classification:
Specialty Transformers
Manufacturer:
Amphenol Alden
Description:
MOSFET P-CH 12V 14A 6UDFNB
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Toshiba Semiconductor and Storage |
|
|
Series |
U-MOSVII |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
12 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
14A (Ta) |
|
|
Rds On (Max) @ Id, Vgs |
9.1mOhm @ 4A, 8V
|
|
|
Vgs(th) (Max) @ Id |
1V @ 1mA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
47 nC @ 4.5 V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
3350 pF @ 6 V
|
|
|
FET Feature |
-
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
6-UDFNB (2x2)
|
|
|
Package / Case |
6-WDFN Exposed Pad |
|
|
Base Product Number |
SSM6J511 |
