SRP1770TA-220M
Part Number:
SRP1770TA-220M
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Almit (ANA TRADING)
Description:
FIXED IND 22UH 12A 26.5 MOHM SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Bourns Inc. |
|
|
Series |
SRP1770TA |
|
|
Packaging |

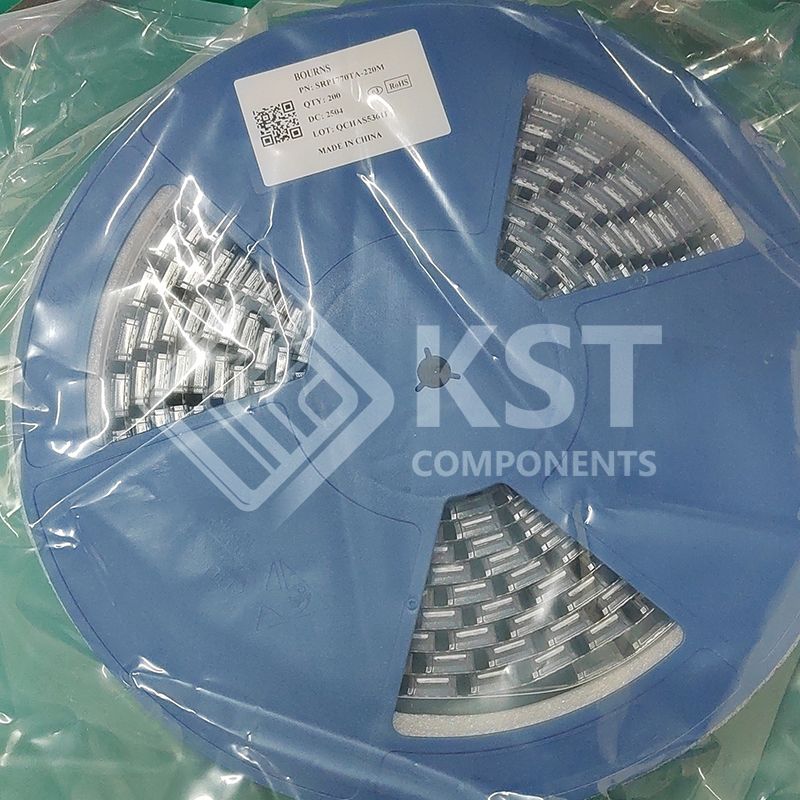

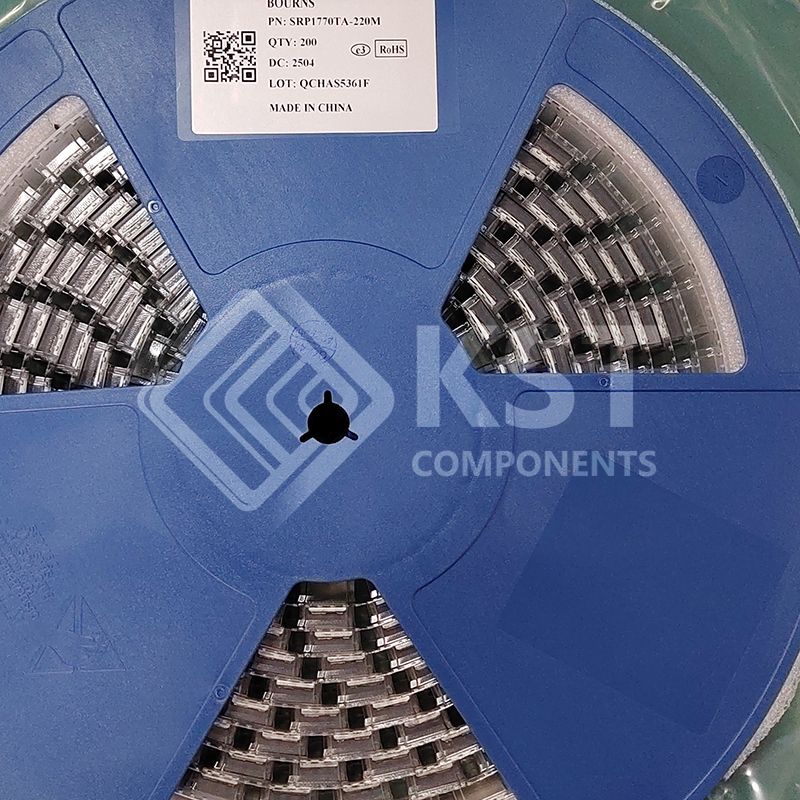

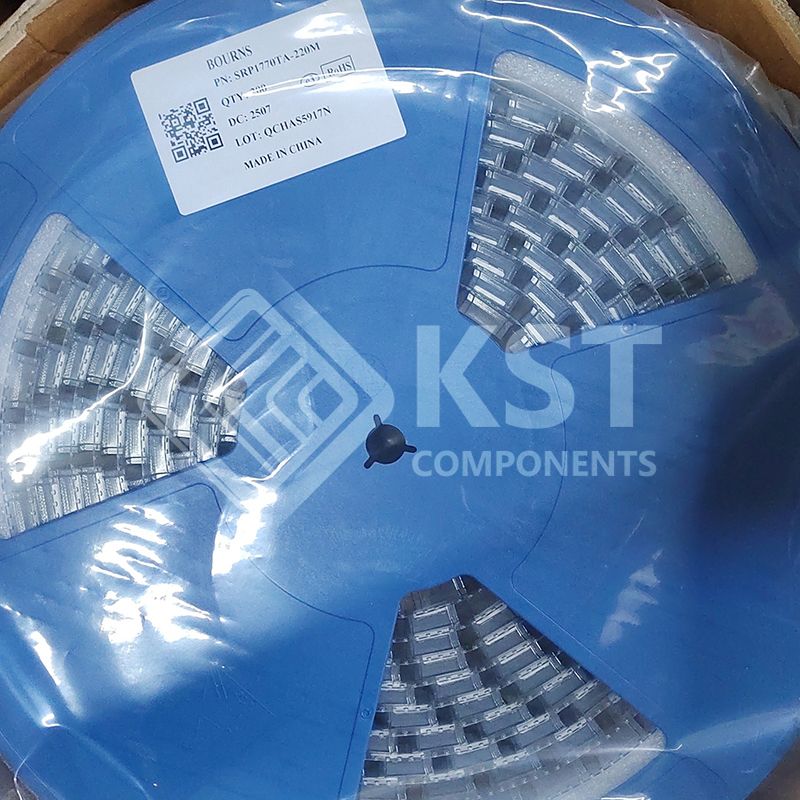

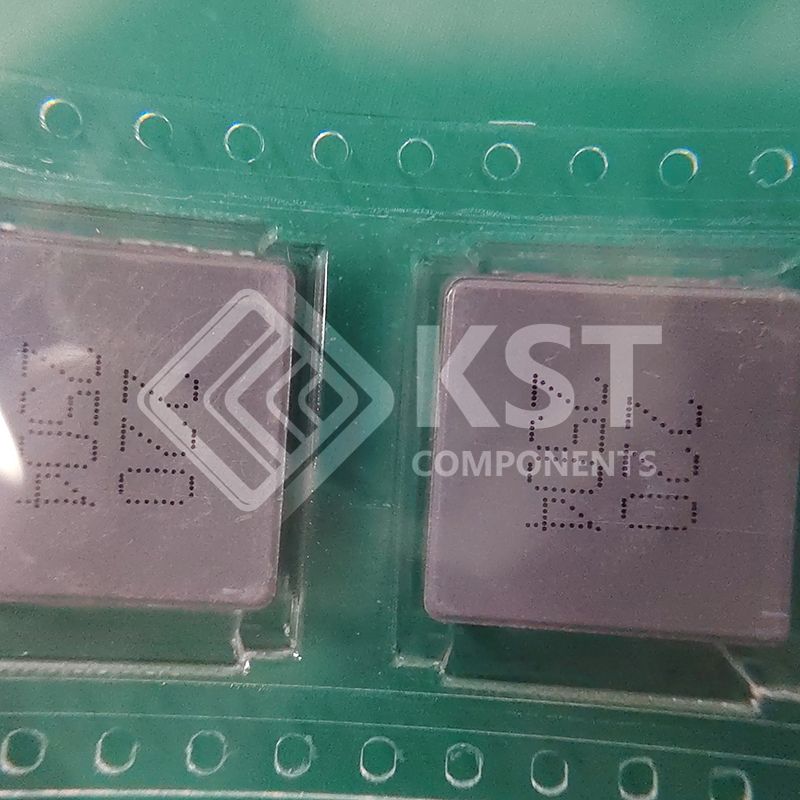

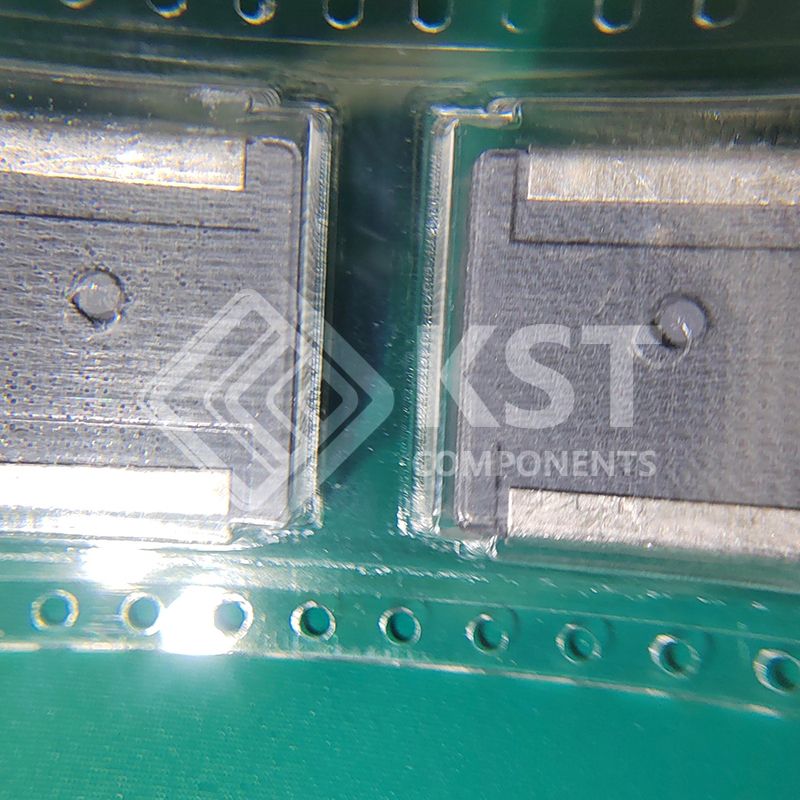

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Carbonyl Powder |
|
|
Inductance |
22 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
12 A |
|
|
Current - Saturation (Isat) |
18A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
26.5mOhm Max
|
|
|
Q @ Freq |
20 @ 100kHz
|
|
|
Frequency - Self Resonant |
5MHz
|
|
|
Ratings |
AEC-Q200
|
|
|
Operating Temperature |
-40°C ~ 150°C
|
|
|
Inductance Frequency - Test |
100 kHz
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.665" L x 0.665" W (16.90mm x 16.90mm)
|
|
|
Height - Seated (Max) |
0.276" (7.00mm)
|
|
|
Base Product Number |
SRP1770TA |
