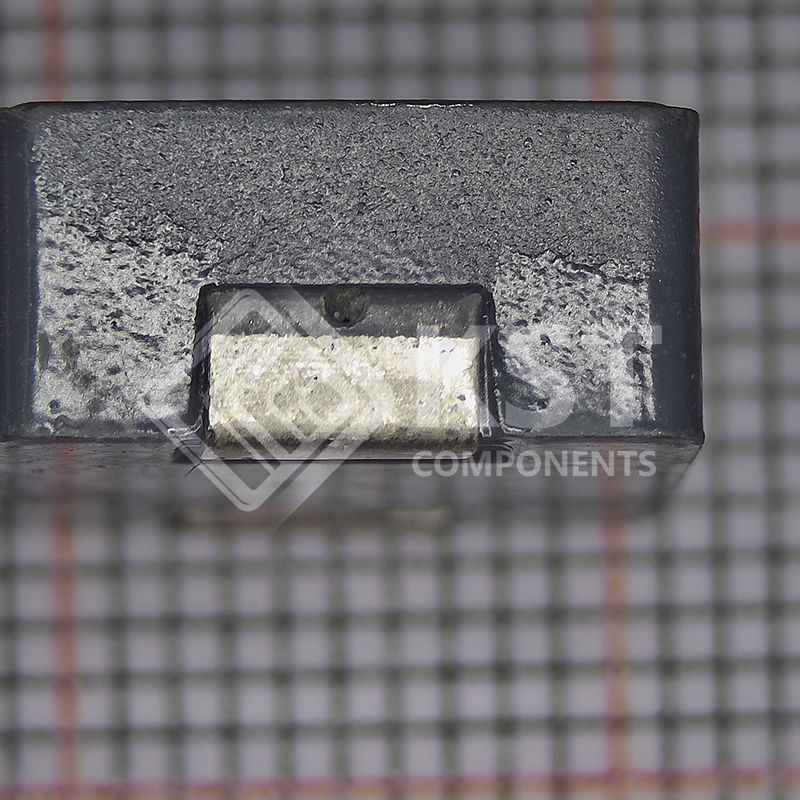

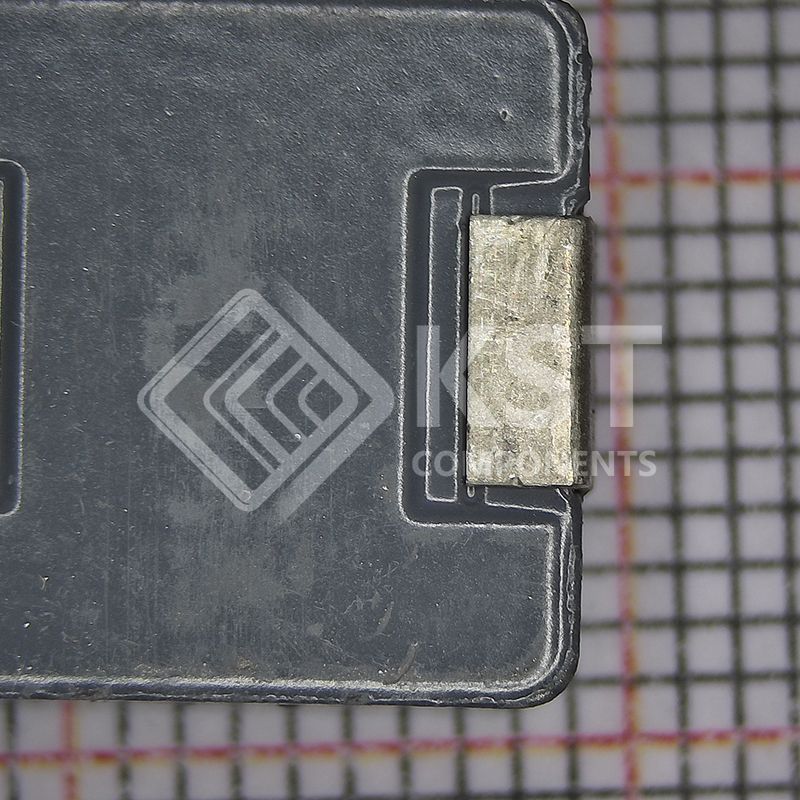

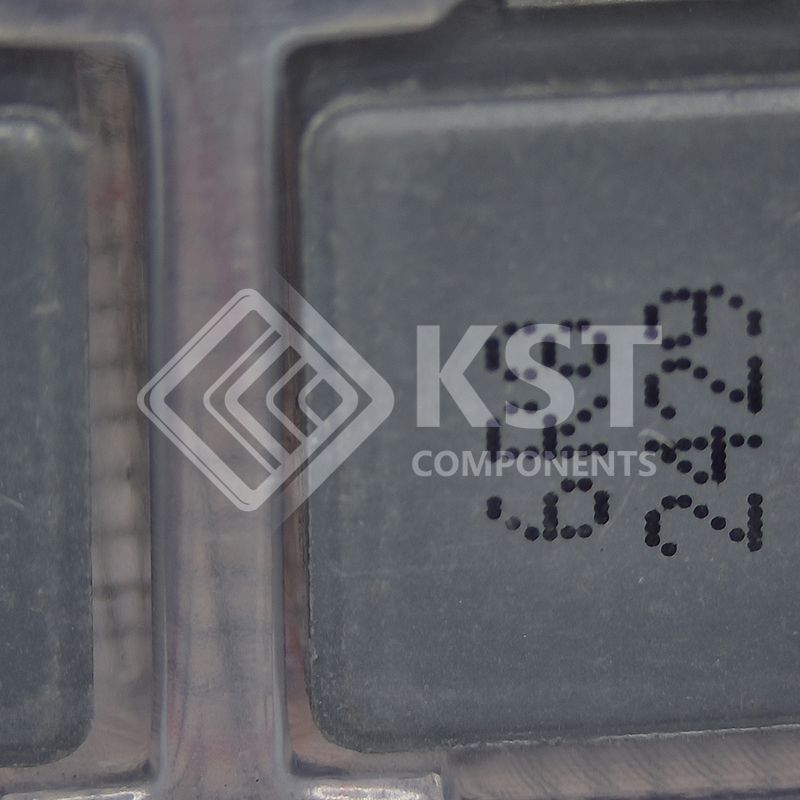

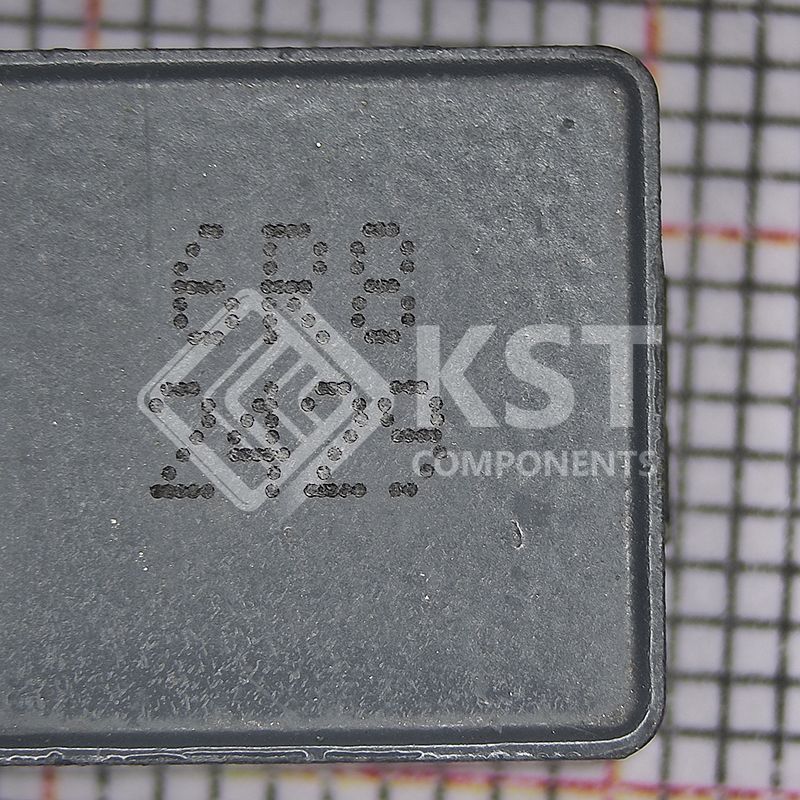

SRP1265CC-6R8M
Part Number:
SRP1265CC-6R8M
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Almit (ANA TRADING)
Description:
IND SMD 6.8UH 15A
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Bourns Inc. |
|
|
Series |
SRP1265CC |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Wirewound
|
|
|
Material - Core |
Carbonyl Powder |
|
|
Inductance |
6.8 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
15 A |
|
|
Current - Saturation (Isat) |
25A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
13.2mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
13MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 kHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.531" L x 0.492" W (13.50mm x 12.50mm)
|
|
|
Height - Seated (Max) |
0.256" (6.50mm)
|
