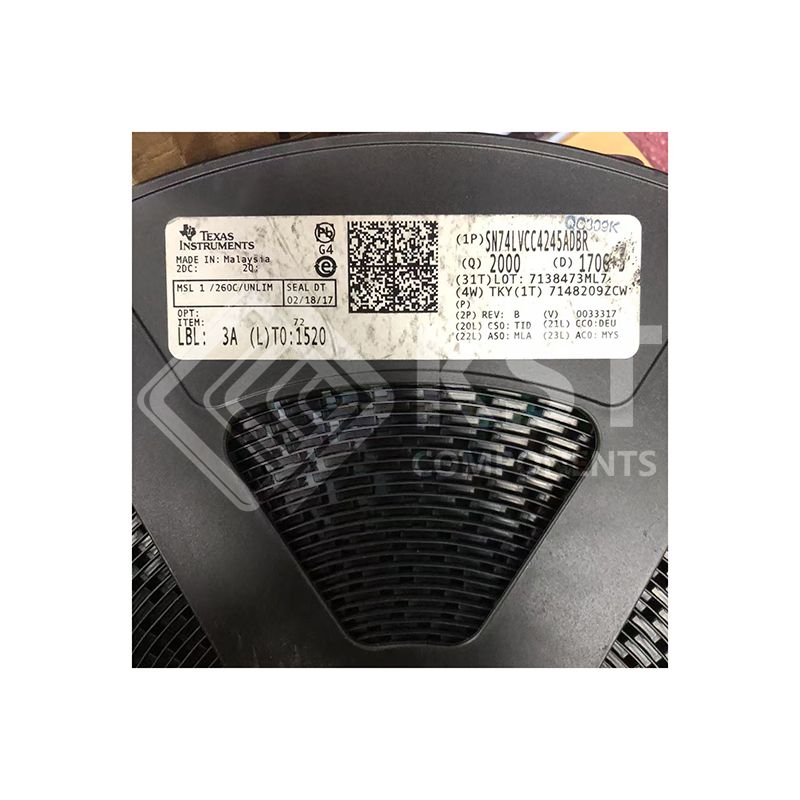

SN74LVCC4245ADBR
Part Number:
SN74LVCC4245ADBR
Product Classification:
Spiral Wrap, Expandable Sleeving
Manufacturer:
3PEAK
Description:
IC TRANSLTR BIDIRECTIONAL 24SSOP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Logic
Translators, Level Shifters
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
74LVCC |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Translator Type |
Voltage Level
|
|
|
Channel Type |
Bidirectional
|
|
|
Number of Circuits |
1
|
|
|
Channels per Circuit |
8
|
|
|
Voltage - VCCA |
4.5 V ~ 5.5 V
|
|
|
Voltage - VCCB |
2.7 V ~ 5.5 V
|
|
|
Input Signal |
-
|
|
|
Output Signal |
-
|
|
|
Output Type |
Tri-State, Non-Inverted
|
|
|
Data Rate |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
24-SSOP (0.209", 5.30mm Width)
|
|
|
Supplier Device Package |
24-SSOP
|
|
|
Base Product Number |
74LVCC4245 |
