Category |
Integrated Circuits (ICs)
Logic
Buffers, Drivers, Receivers, Transceivers
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
74LVC |
|
|
Packaging |

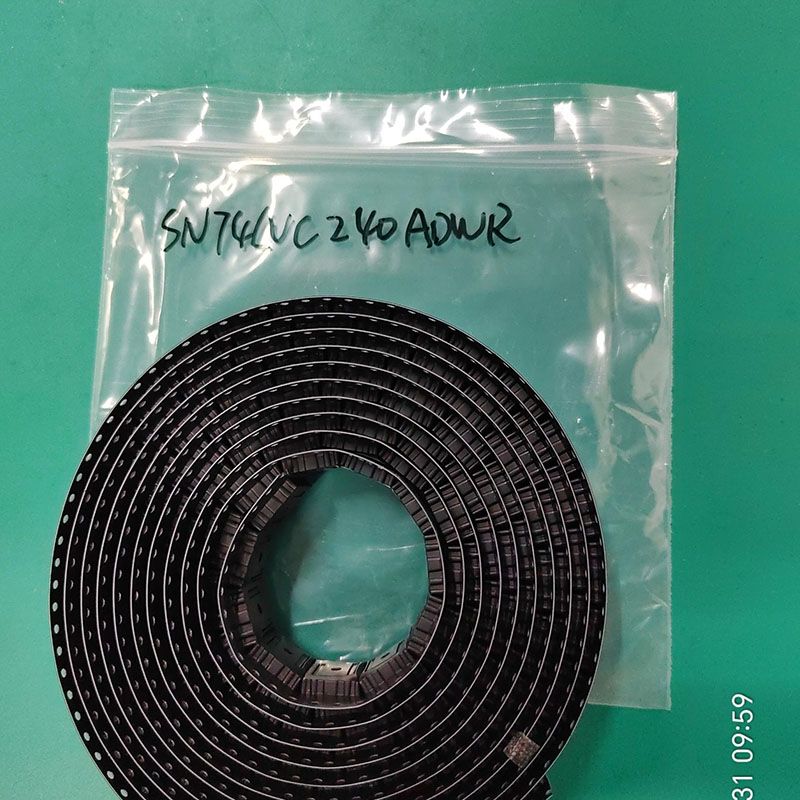

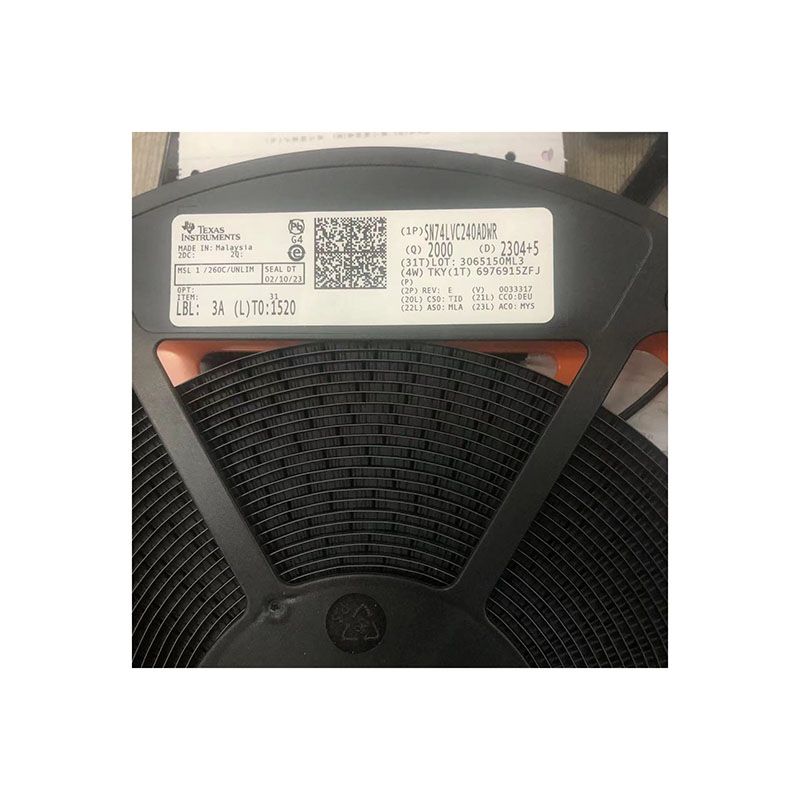

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Logic Type |
Buffer, Inverting
|
|
|
Number of Elements |
2
|
|
|
Number of Bits per Element |
4
|
|
|
Input Type |
-
|
|
|
Output Type |
3-State
|
|
|
Current - Output High, Low |
24mA, 24mA
|
|
|
Voltage - Supply |
1.65V ~ 3.6V
|
|
|
Operating Temperature |
-40°C ~ 125°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|

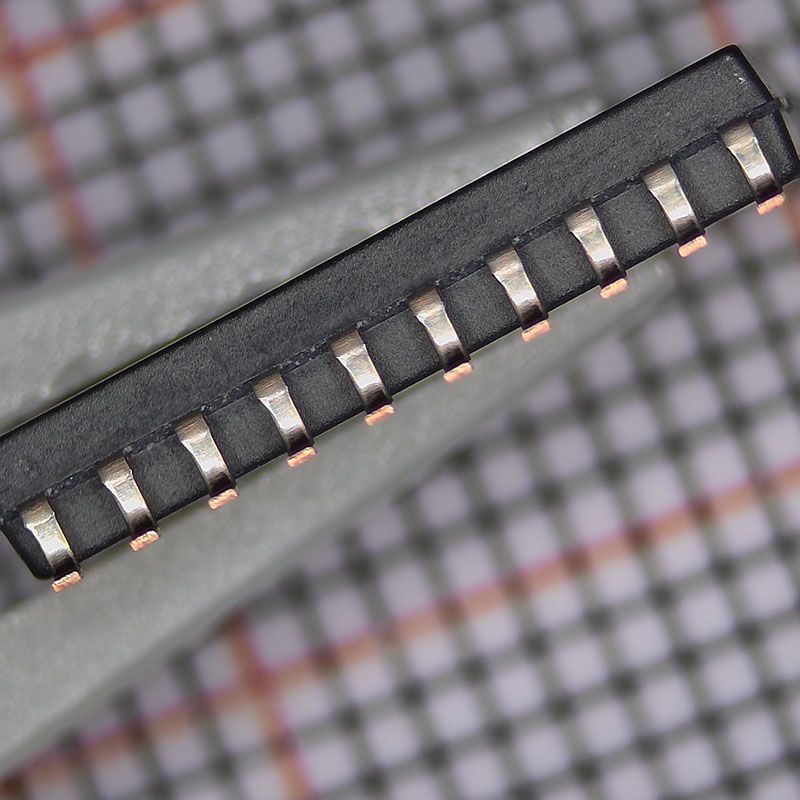

Package / Case |
20-SOIC (0.295", 7.50mm Width)
|
|
|
Supplier Device Package |
20-SOIC
|
|
|
Base Product Number |
74LVC240 |
