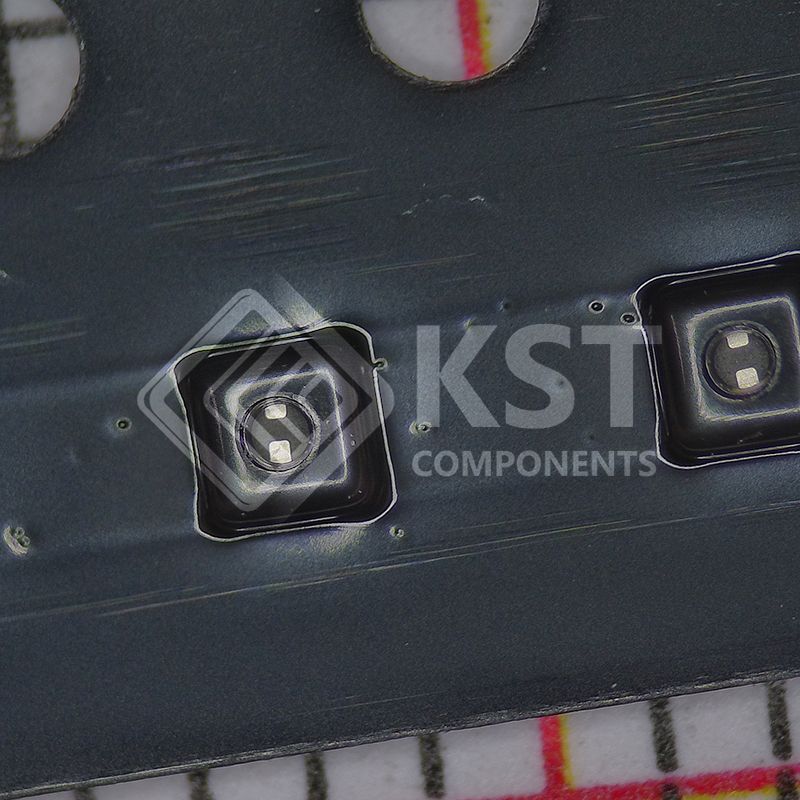

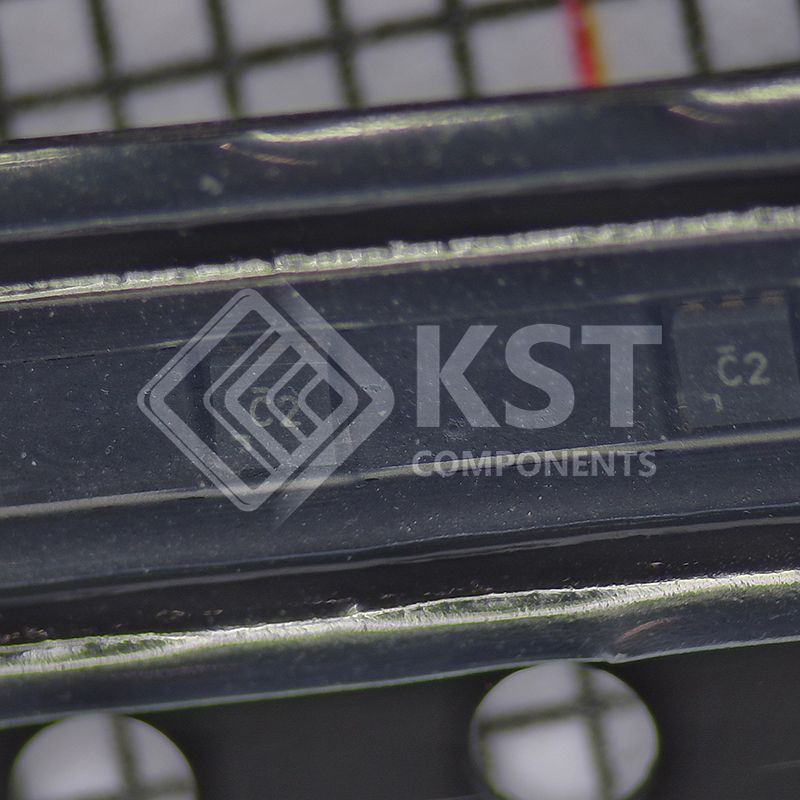

SN74LVC1G10DSFR
Part Number:
SN74LVC1G10DSFR
Product Classification:
Accessories - Boots, Seals
Manufacturer:
3PEAK
Description:
NAND Gate IC 1 Channel 6-SON (1x1)
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
- Available in the Texas Instruments NanoFree Package
- Supports 5-V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Provides Down Translation to VCC
- Max tpd of 3.8 ns at 3.3 V
- Low Power Consumption, 10-μA Max ICC
- ±24-mA Output Drive at 3.3 V
- Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
- Latch-Up Performance Exceeds 100 mA per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged Device Model (C101)
