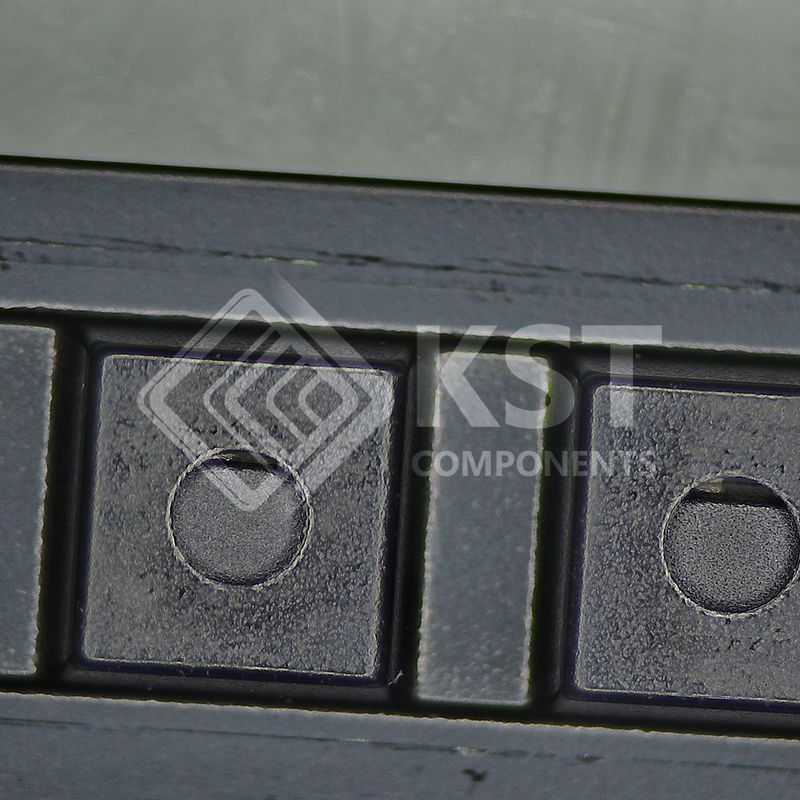

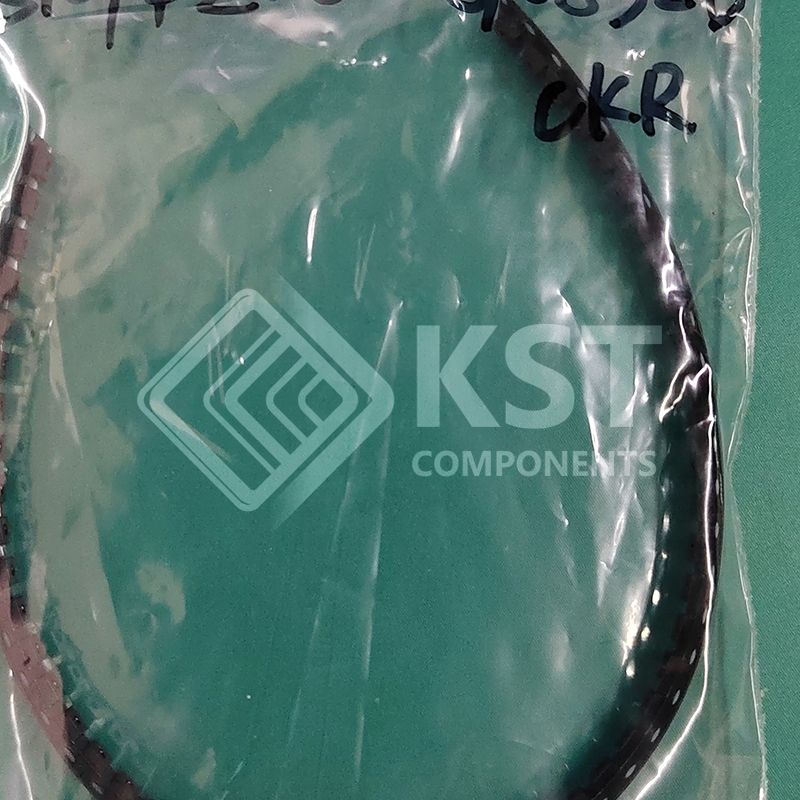

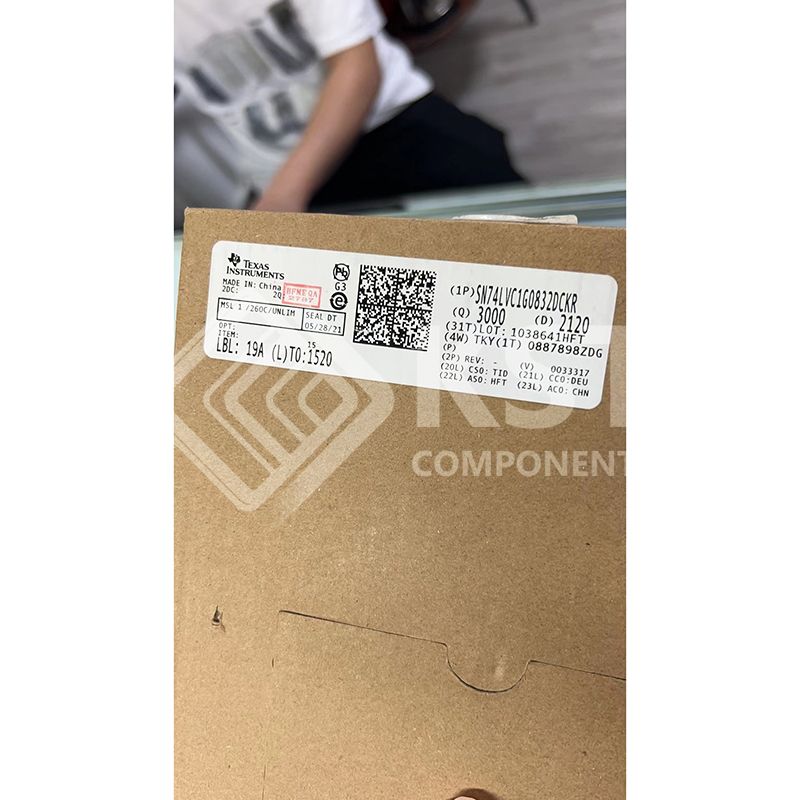

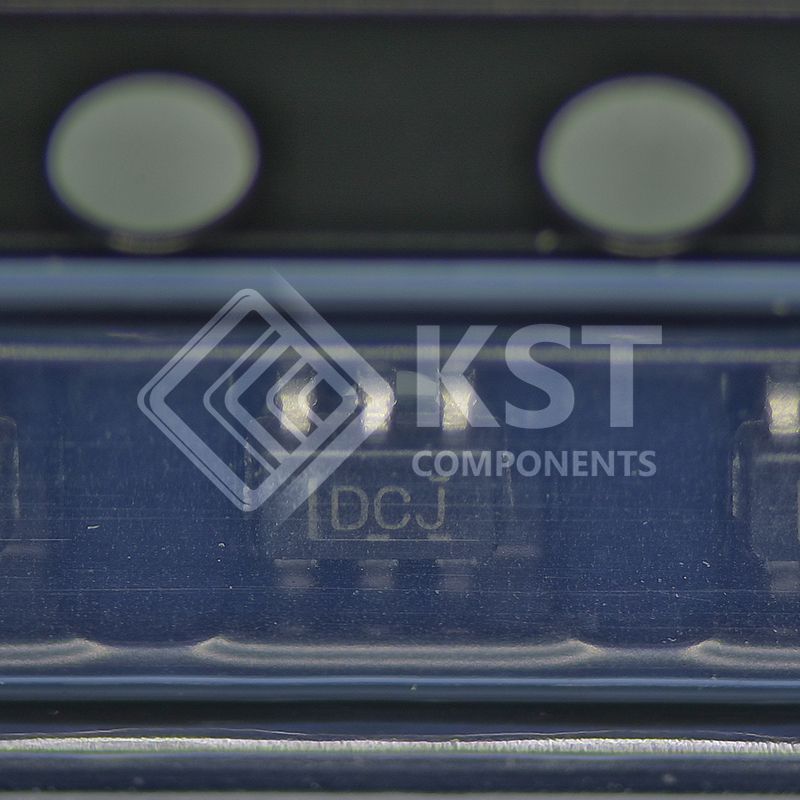

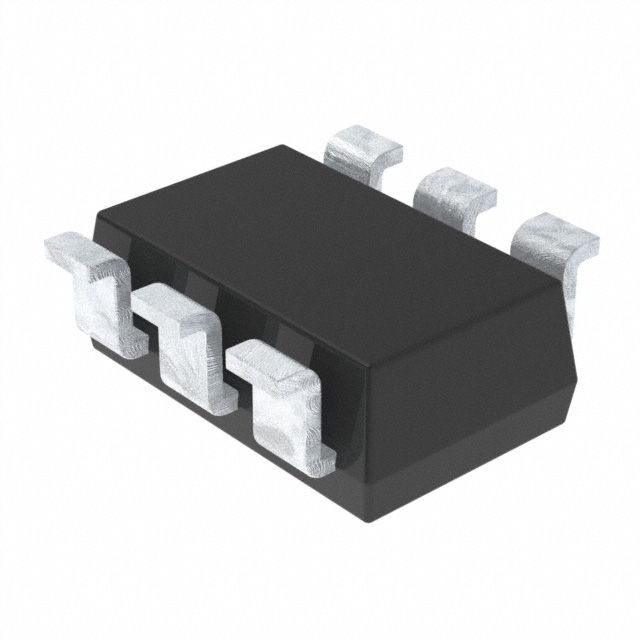

SN74LVC1G0832DCKR
Part Number:
SN74LVC1G0832DCKR
Product Classification:
Accessories - Boots, Seals
Manufacturer:
3PEAK
Description:
IC SNGL 3-IN POS-AND-OR SC70-6
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Logic
Gates and Inverters - Multi-Function, Configurable
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
74LVC |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Logic Type |
AND/OR Gate
|
|
|
Number of Circuits |
1
|
|
|
Number of Inputs |
3 Input (2, 1)
|
|
|
Schmitt Trigger Input |
No
|
|
|
Output Type |
Single-Ended
|
|
|
Current - Output High, Low |
32mA, 32mA
|
|
|
Voltage - Supply |
1.65V ~ 5.5V
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
6-TSSOP, SC-88, SOT-363
|
|
|
Supplier Device Package |
SC-70-6
|
|
|
Base Product Number |
74LVC1G0832 |
