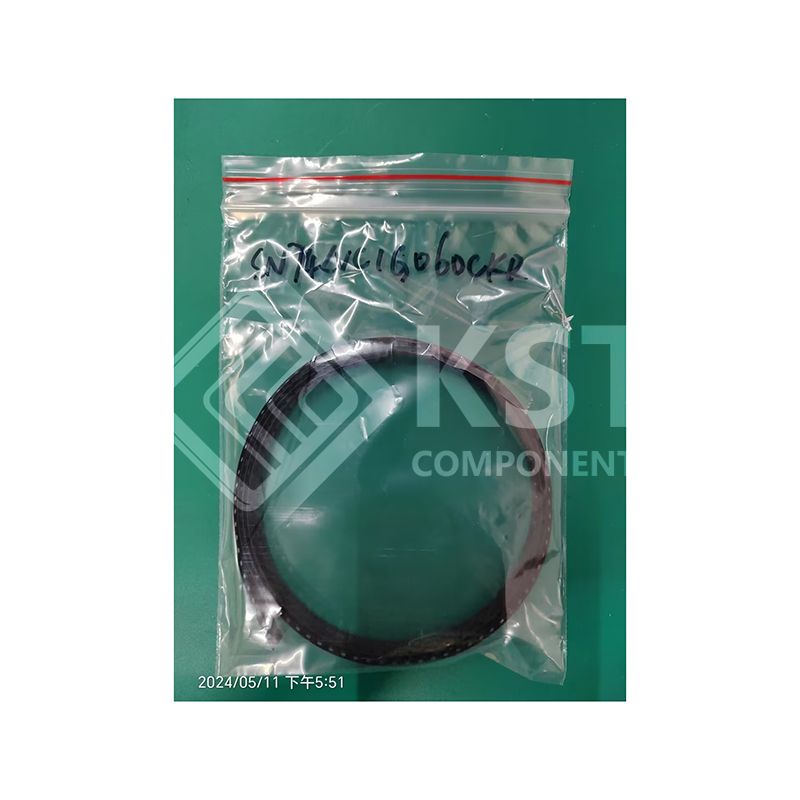

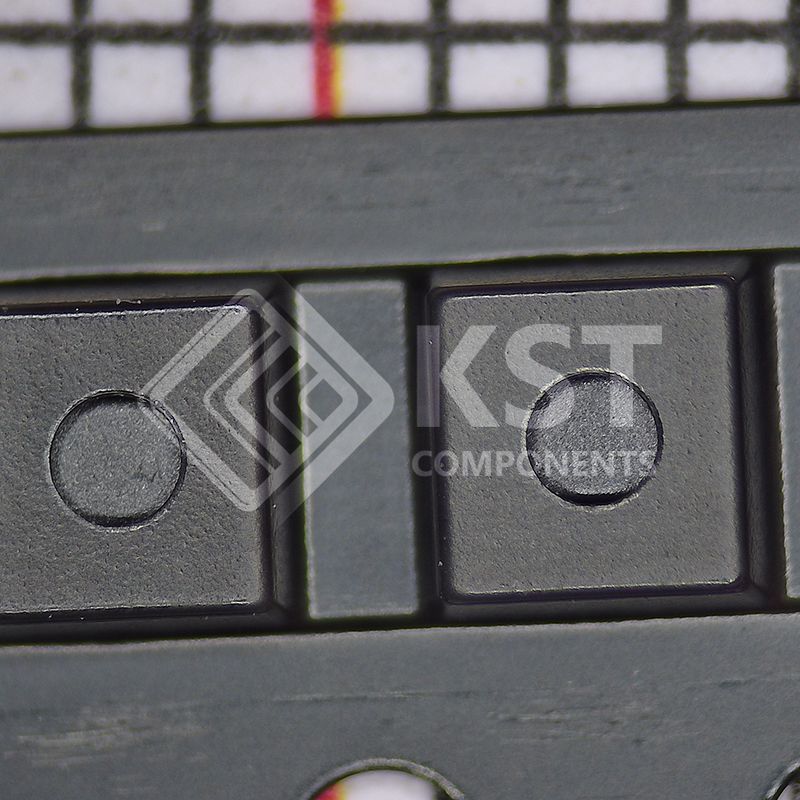

SN74LVC1G06DCKR

• ESD Protection Exceeds JESD 22
– 2000-V Human Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
• Available in the Texas Instruments
NanoFree™ Package
• Supports 5-V VCC Operation
• Input and Open-Drain Output Accept
Voltages up to 5.5 V
• Maximum tpd of 4.5 ns at 3.3 V at 125°C
• Low Power Consumption, 10-µA Maximum ICC
• ±24-mA Output Drive at 3.3 V for open-drain
devices
• Ioff Supports Partial-Power-Down Mode and BackDrive Protection
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
• Can Be Used For Up or Down Translation
• Schmitt Trigger Action on All Ports
