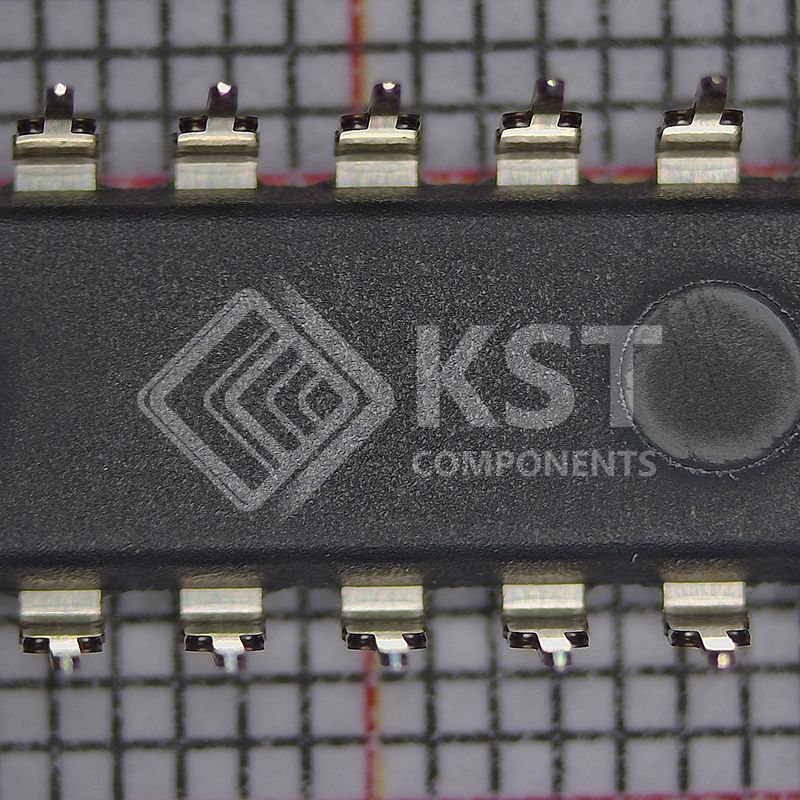

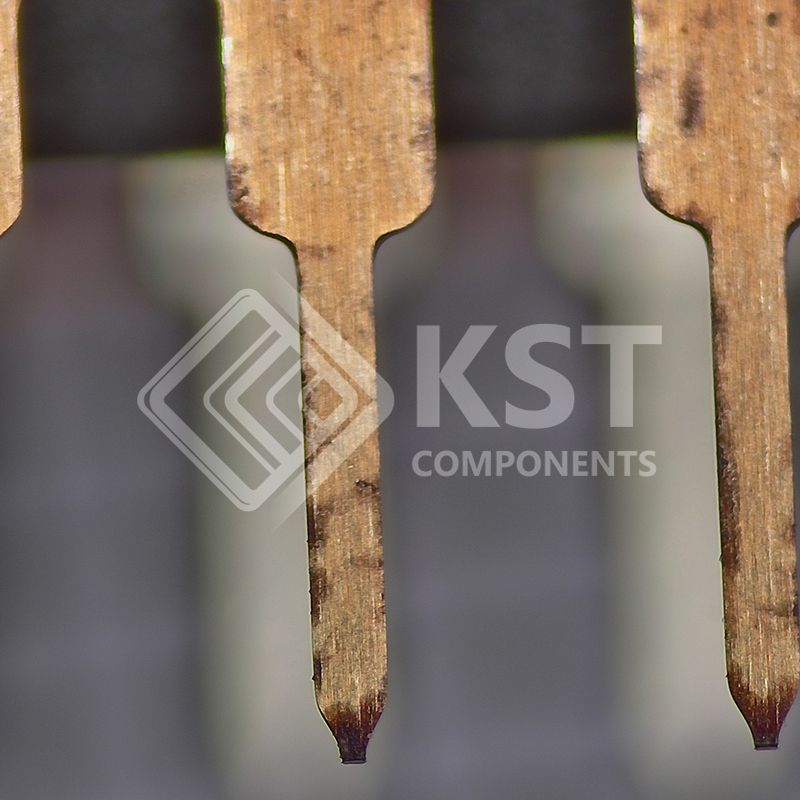

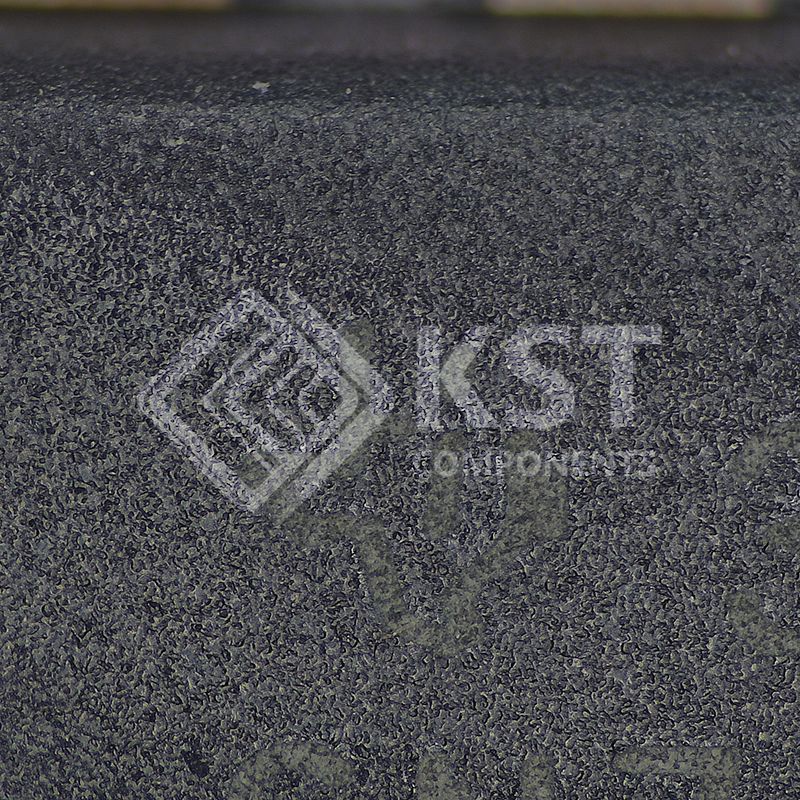

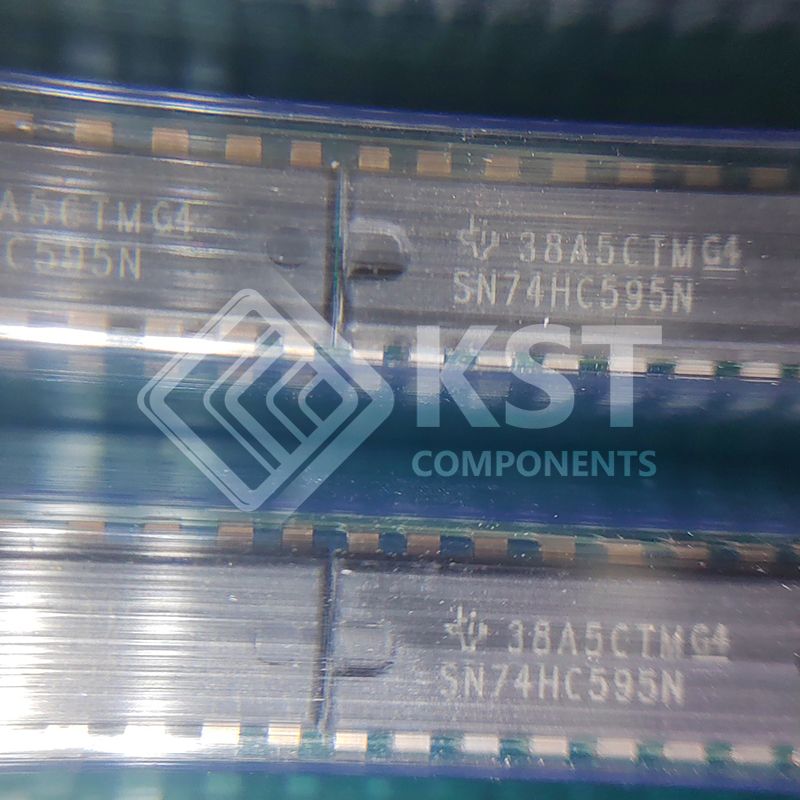

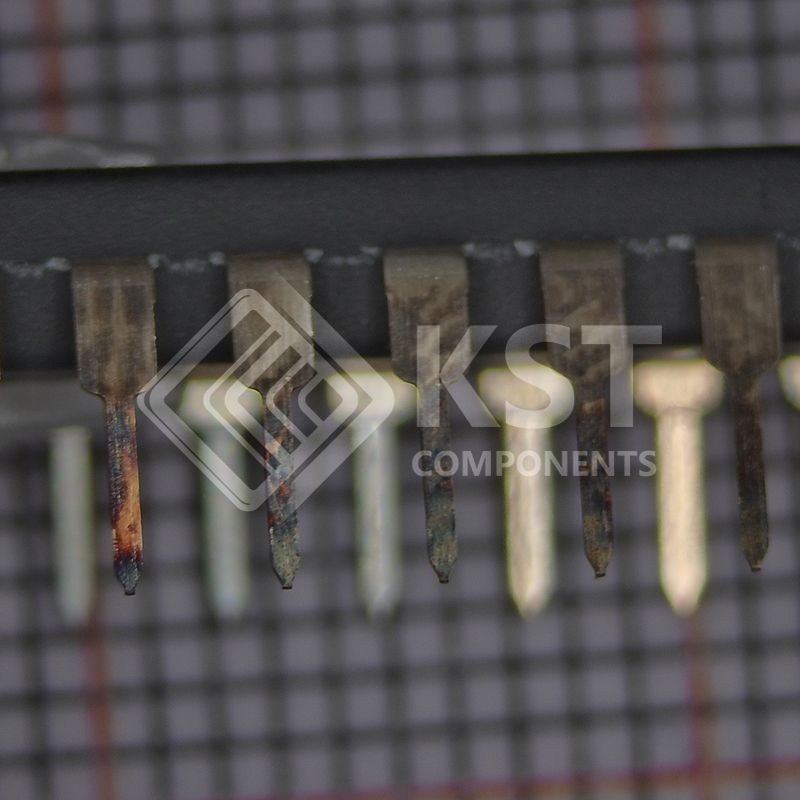

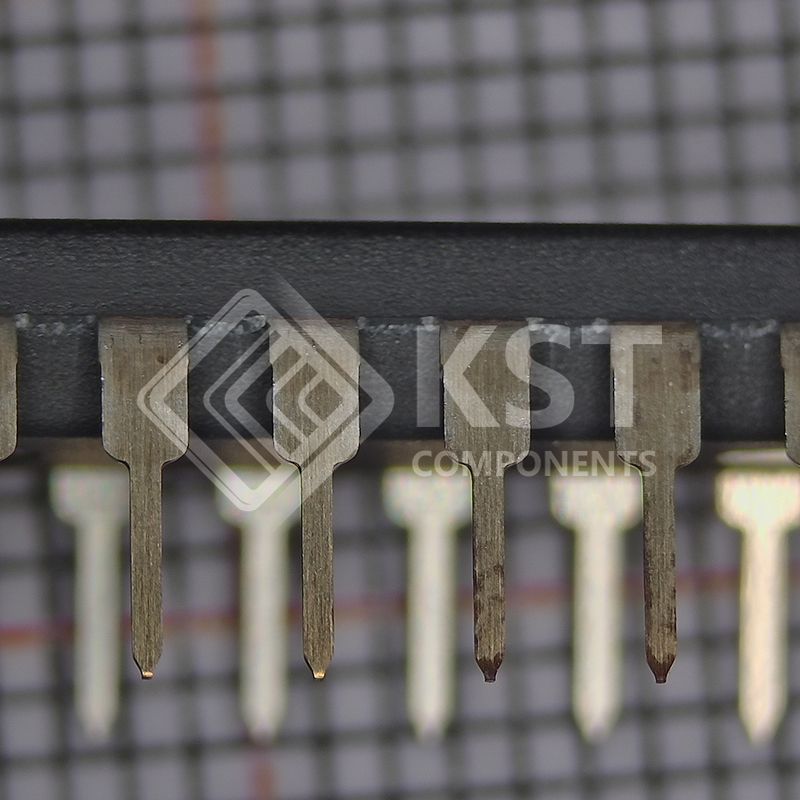

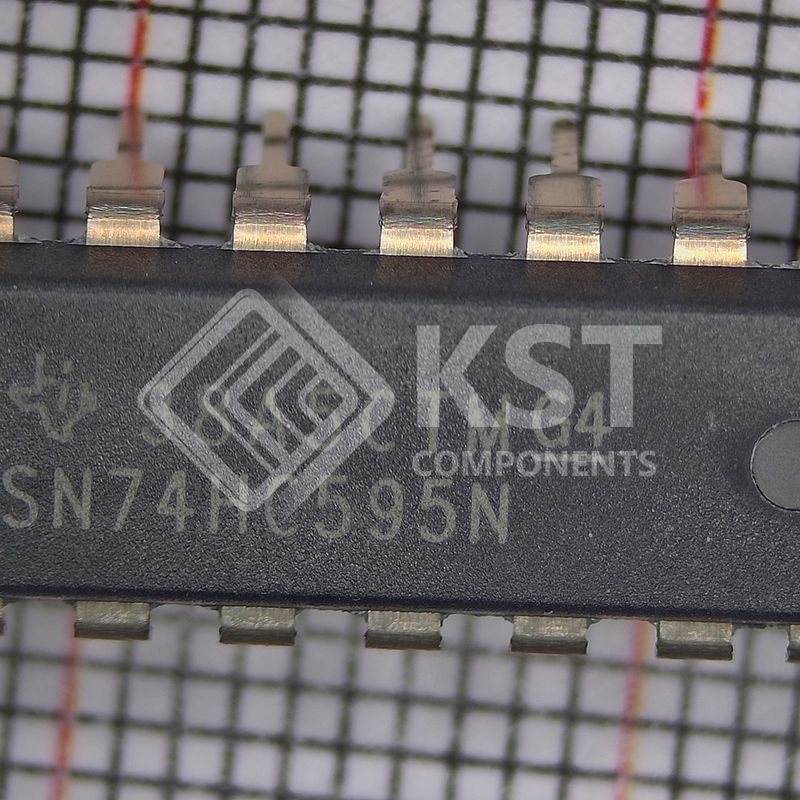

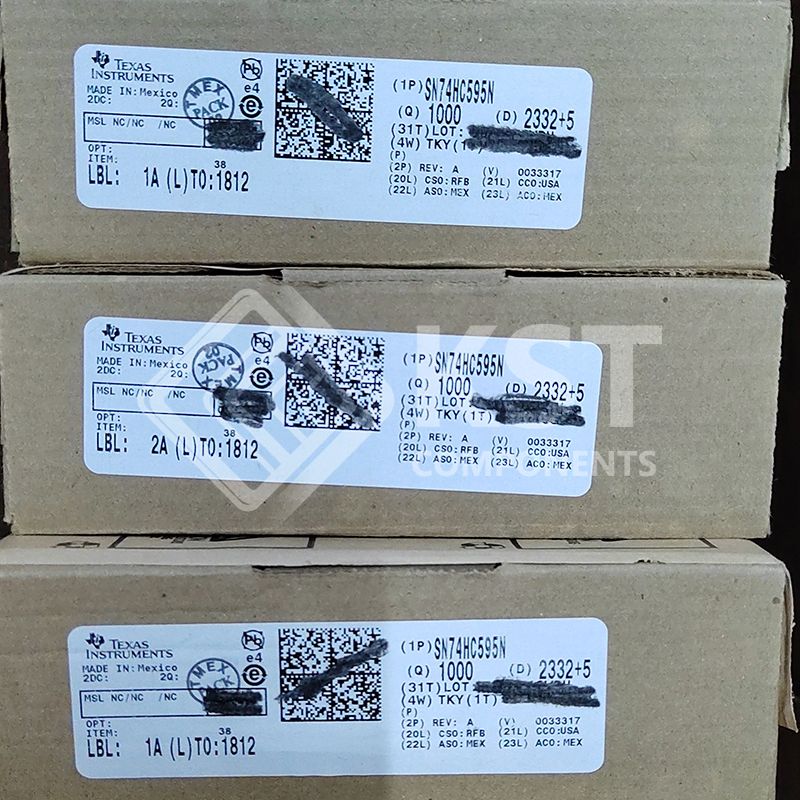

SN74HC595N
Part Number:
SN74HC595N
Product Classification:
Heat Sinks
Manufacturer:
3PEAK
Description:
IC 8-BIT SHIFT REGISTER 16-DIP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Logic
Shift Registers
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
74HC |
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Logic Type |
Shift Register
|
|
|
Output Type |
Tri-State
|
|
|
Number of Elements |
1
|
|
|
Number of Bits per Element |
8
|
|
|
Function |
Serial to Parallel, Serial
|
|
|
Voltage - Supply |
2V ~ 6V
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Mounting Type |
Through Hole
|
|
|
Package / Case |
16-DIP (0.300", 7.62mm)
|
|
|
Supplier Device Package |
16-PDIP
|
|
|
Base Product Number |
74HC595 |
